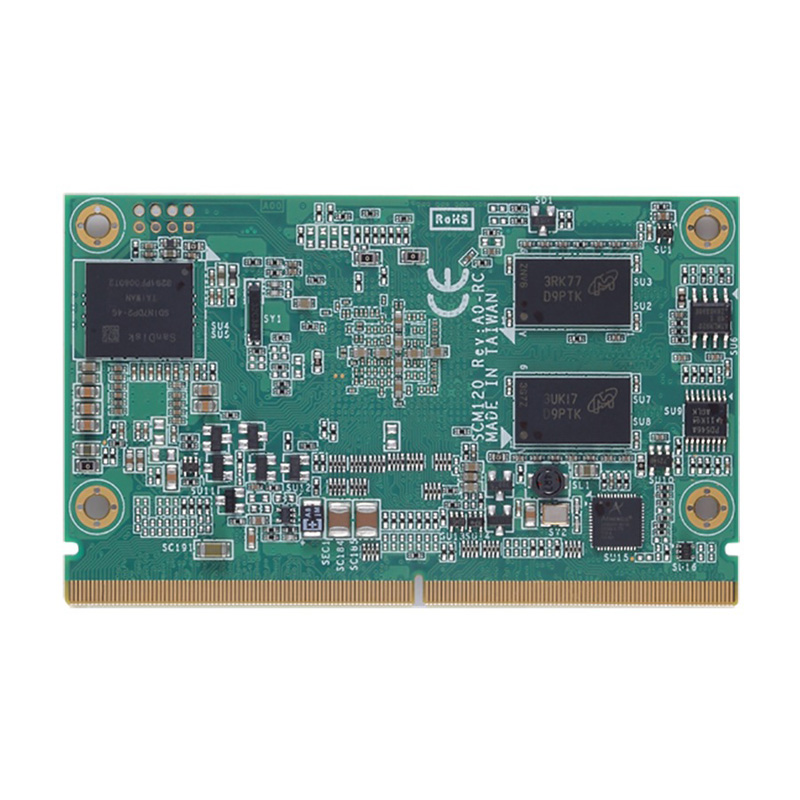

SCM120

SMARC v1.0 SoM with Quad/DualLite 800 MHz (Industrial) SoC, 1GB Memory, 4GB eMMC, Gigabit Ethernet, Audio, CAN, MIPI and PCAM

  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products
    • Ultra low power consumption Cortex™-A9
    • High flexibility SMARC v1.0 compliant design
    • 2 CAN 2.0B
    • 24-bit TTL signal
    • LVDS/HDMI 1080P
    • 10/100/1000 Mbps Ethernet
    • Linux3.0.35/Android4.3
    • Audio
  • CPU
    • Freescale i.MX6 Series SoC with Quad/DualLite ARM Cortex™-A9 CPU 800 MHz
    System Memory
    • Onboard DDR3-1600, up to 1GB
    OS
    • Linux kernel 3.0.35
    • Android 4.3
    COM
    • 3 x COM with TX/RX/RTS/CTS
    • 1 x Console port
    USB
    • 1 x USB 2.0
    • 1 x OTG client
    Ethernet
    • 1 x 10/100/1000 Mbps
    Display
    • 1 x 24-bit TTL signal
    • 1 x Dual channel 24-bit LVDS
    • 1 x HDMI 1080P
    Audio
    • Mic-in/Headphone
    I2C
    • 4 x I2C
    SPI
    • 2 x SPI (2 channel)
    CAN
    • 2 x CANBus 2.0B
    GPIO
    • 8 button-detect
    Storage
    • 1 x eMMC flash 4 GB
    • 1 x SDIO interface
    • 1 x SATA interface (Only Quad Support)
    Expansion
    • 1 x PCIe x1
    Others
    • Camera (MIPI v1.0, 2x Lane, PCAM 8bit)
    Battery
    • Battery on the Baseboard is required
    Power Requirements
    • +3V ~ +5.25V
    Operating Temperature
    • -40ºC ~ 85ºC (-40ºF ~185ºF) (Industrial)
    Relative Humidity
    • 10% ~ 95%, non-condensing
    Dimensions
    • 82 x 50 mm
    Board Thickness
    • 1.2 mm
    Certification
    • CE
    • SCM120-DualLite-I
      SCM120 with Freescale iMX6 DualLite 800 MHz (Industrial) SoC, 1GB Memory, 4GB eMMC, 1 GbE LAN, audio, and CAN
    • SCM120-Quad-I
      SCM120 with Freescale iMX6 Quad 800MHz (Industrial) SoC, 1GB Memory, 4GB eMMC, 10/100/1000 Mbps Ethernet, audio, CAN and SATA
    • SCM120-120-EVK DualLite-I
      Evaluation kit board
    • SCM120-120-EVK
      Quad-I Evaluation kit board
    • P/N-5078S120100E
      SCM120 heatspread (-40 ˚C ~70 ˚C)
    • P/N-5078Q120200E
      Heatsink (-40 ˚C ~75 ˚C)
