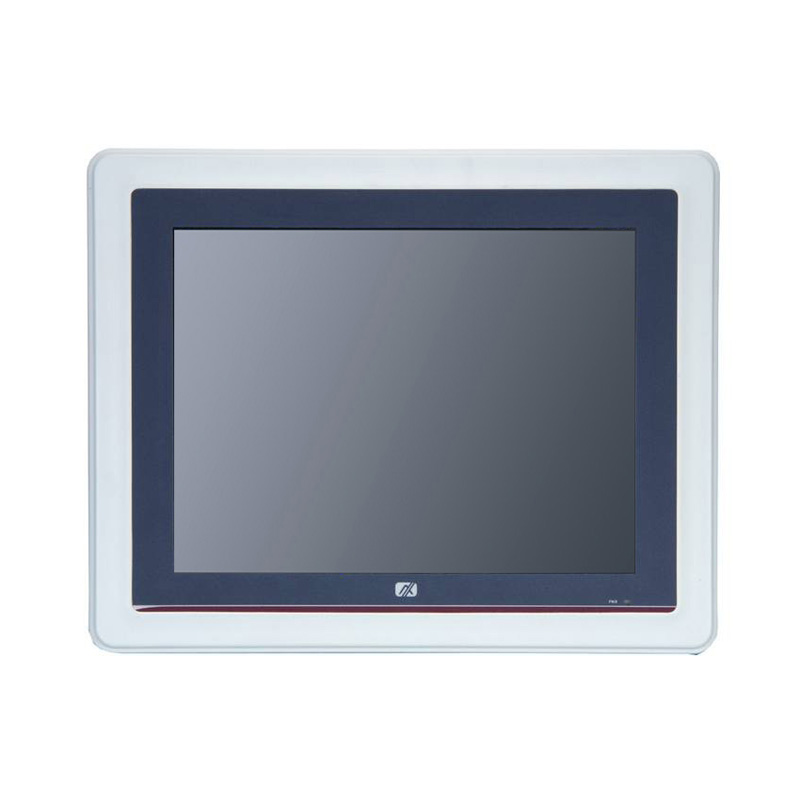

GOT5840T-834

8.4" SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor J1900

  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products
    • 8.4" SVGA TFT LCD display with LED backlight
    • Fanless cooling system with Intel® Celeron® processor J1900
    • Ultra slim and super light design
    • WLAN module and internal antenna
    • PCI Express Mini Card slots for easy expansion
    • 2 Gigabit LAN, 2 USB & 2 COM ports
    • Supports optional panel mount/wall mount/VESA arm/desktop stand
    • Plastic and IP65-rated front bezel

    Introduction

    The GOT5840T-834 is equipped with an 8.4-inch SVGA TFT LCD display and is also powered by the Intel® Atom™ processor J1900. The GOT5840T-834 has already gained success as a customer solution for small kiosks. When customers are in need of a slim-type touch panel computer with high brightness capabilities to be installed in a space constricting area- the GOT5840T-834 stands out as the best choice.

  • LCD Panel
    • 8.4" SVGA TFT LCD
    • 350 nits
    • 800 x 600 pixels
    CPU
    • Intel® Celeron® processor J1900
    Chipset
    • SoC integrated
    System Memory
    • 1 x 204-pin SO-DIMM DDR3L-1333, up to 8 GB
    BIOS
    • AMI
    COM
    • 2 x RS-232/422/485 (default RS-232)
    USB
    • 2 x USB 3.0
    Ethernet
    • 2 x 10/100/1000 Mbps (Intel® i210IT)
    Display
    • N/A
    Audio
    • Line-out
    Storage
    • 1 x CFas™ or mSATA
    Expansion
    • 1 x Full-Size PCI Express Mini Card with mSATA
    • 1 x Full-Size PCI Express Mini Card with SIM Slot
    Others
    • Built-in WLAN antenna
    Touchscreen
    • Resistive type
    Front Bezel
    • IP65, NEMA 4 rugged protection, plastic front bezel
    Power Supply
    • DC version: 9~36VDC with over-current protection fuse
    • AC version: 100-240V AC-DC, 60W power adapter
    Power Comsumption
    • 25W
    Watchdog Timer
    • 255 levels, 0~255 sec.
    Operating Temperature
    • 0°C ~ +50°C (+32°F ~ +122°F) (with W.T. DRAM/HDD in airflow condition)
    • 0°C ~ +45°C (+32°F ~ +113°F) (with W.T. DRAM)
    Relative Humidity
    • 20% ~ 90% @ 40°C; non-condensing
    Vibration
    • 2G, 5~500Hz, random for CFast™
    Dimensions
    (W x D x H)
    • 250.7 x 45.8 x 204.7 mm (9.87" x 1.80" x 8.06")
    Weight (net/gross)
    • 1.3 kg (2.87 lb)/ 2.25 kg (4.96 lb)
    Certificate
    • CE
    EOS
    • Windows® 8.1, WE8S, Windows® 7, WES 7
    Mounting
    • Panel mount
    • Wall mount
    • VESA arm
    • Desktop stand
    • GOT5840T-834-J 8.4" SVGA fanless touch panel computer with Intel® Celeron® processor J1900, 5-wire resistive touch screen, AC-DC 60W power adapter (screw type connector) and EMI class B
    • GOT5840T-834-DC 8.4" SVGA fanless touch panel computer with Intel® Celeron® processor J1900, 5-wire resistive touch screen and 9~36 VDC power input (terminal block connector)
  • Drivers

    Date Description Version Download File
    2017/07/21 Win8-10.part1 VA1.1 716,800KB
    2017/07/21 Win8-10.part2 VA1.1 217,839.7KB
    2017/07/21 Win7.part2 VA1.1 203,941.5KB
    2017/07/21 Win7.part1 VA1.1 716,800KB

    Software

    Manual

    Date Description Version Download File
    2017/07/21 GOT5840T-834 User's Manual VA1_3-11-2015 VA1.1 2,816KB
    2015/03/17 User's Manual VA1.0 2,816KB

    Technical Announcement

    Certificates

    Date Description Version Download File
    2017/07/07 CE LVD Verificate 885.6KB
