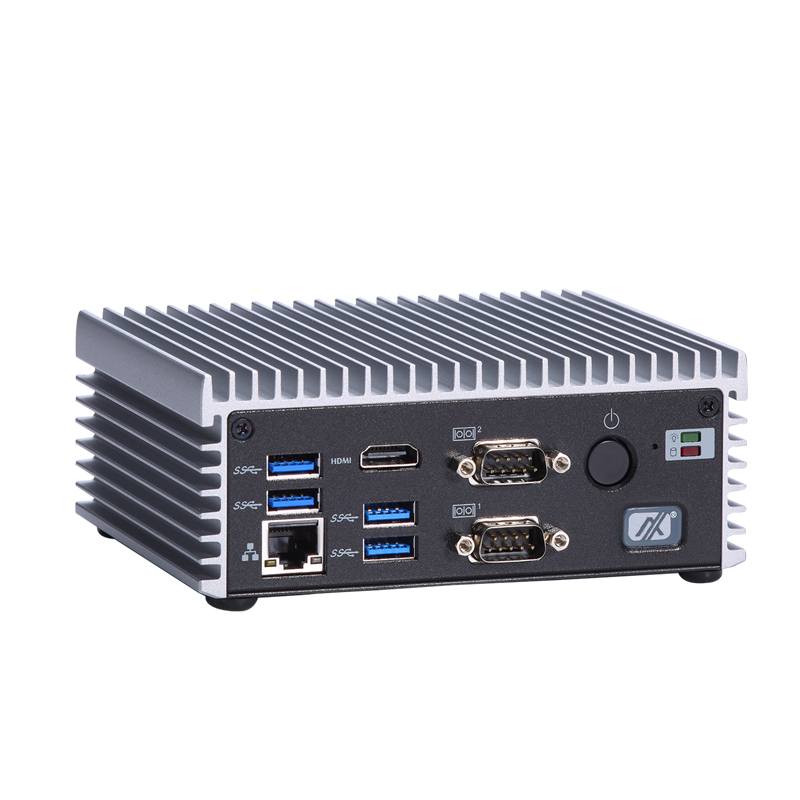

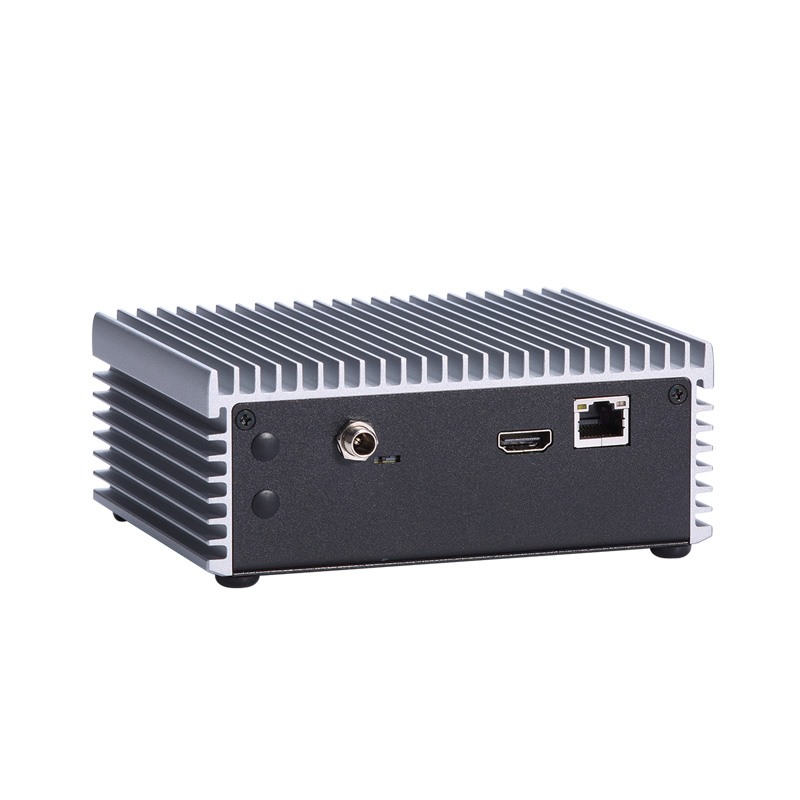

eBOX560-500-FL

Fanless Embedded System with 6th Generation Intel® Core™ i7-6600U 3.4 GHz/ Celeron® 3955U 2.0 GHz, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM and PCIe Mini Card

  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products
    • Intel® Core™ i7-6600U 3.4 GHz/i5-6300U 3 GHz/Celeron® 3955U 2.0 GHz (Skylake ULT SoC)
    • 260-pin DDR4 SO-DIMM, up to 16GB
    • Compact size with 12 VDC power input
    • Supports 2 HDMI, 2 GbE LANs, 2 COM and 4 USB 3.0 ports
    • Supports Jumbo Frame (9.5K),WoL, PXE and Teaming

    Introduction

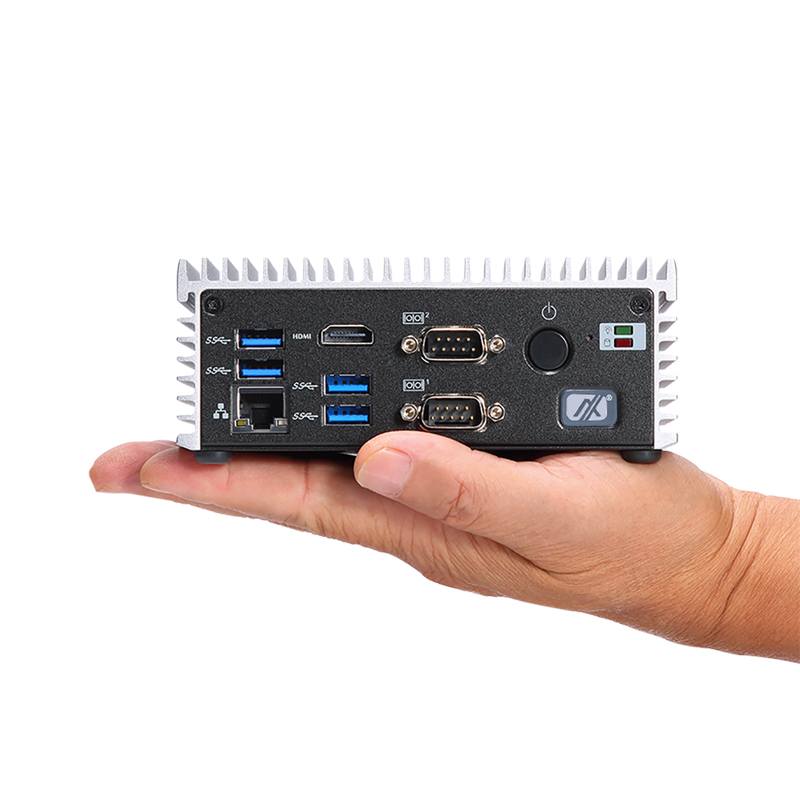

    The eBOX560-500-FL is an Intel® Skylake-based fanless embedded system with compact size and full-featured I/O interface. To bring both excellent performance and ultra-low power consumption, the palm-sized embedded box PC is powered by the 6th generation Intel® Core™ i7-6600U or Celeron® 3955U processor (formally codename: Skylake). One 260-pin DDR4-2133 SO-DIMM socket with system memory up to 16 GB is available. The power efficient IP40 embedded system supports 12V DC input with screw-lock and features a user-friendly AT/ATX DIP switch. The compact eBOX560-500-FL is suitable for Industrial Internet of Things (IIoT) solutions, digital signage, retail equipment, smart factory automation, thin clients, industrial controller systems and many more.

  • CPU
    • Intel® Core™ i7-6600U 3.4 GHz/i5-6300U 3 GHz/ Celeron® 3955U 2.0 GHz processor (Skylake ULT SoC)
    Chipset
    • SoC Integrated
    System Memory
    • 1 x 260-pin SO-DIMM DDR4-2133, up to 16 GB
    BIOS
    • AMI
    COM
    • 1 x RS-232/422/485
    • 1 x RS-232
    USB
    • 4 x USB 3.0
    Ethernet
    • 2 x 10/100/1000 Mbps
    Display
    • 2 x HDMI
    Digital I/O
    • N/A
    Audio
    • N/A
    Storage
    • 1 x 2.5” SATA HDD drive bay
    • 1 x mSATA (optional)
    Expansion
    • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
    Others
    • 2 x SMA type connector opening for antenna
    • 1 x AT/ATX Quick switch
    • 1 x ATX power switch
    • 1 x Reset button
    Power Supply
    • 12VDC
    Watchdog Timer
    • 255 levels, 1~255 sec.
    Construction
    • Aluminum extrusion and heavy-duty steel, IP40
    Operating Temperature
    • -10°C ~ +55°C (-14°F~+131°F) (with W.T. SSD)
    Relative Humidity
    • 10% ~ 95% , non-condensing
    Vibration
    • 3 Grms with SSD™ (5-500Hz, X, Y, Z directions)
    Dimensions
    (W x D x H)
    • 141.5 x 106 x 55 mm (5.57" x 4.17" x 2.17")
    Weight (net/gross)
    • 0.8 kg (1.76 lb)/1.67 kg (3.68 lb)
    Certificate
    • CE
    EOS Support
    • Win 10, Win 8.1, AXView 2.0
    Mounting
    • Wall mount
    • Din-rail
    • VESA mount
    • eBOX560-500-FL-3955U-US
      Fanless embedded system with Intel® Celeron® 3955U processor, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM, PCIe Mini Card, 12V 60W power adaptor and US power cord
    • eBOX560-500-FL-3955U-EU
      Fanless embedded system with Intel® Celeron® 3955U processor, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM, PCIe Mini Card, 12V 60W power adaptor and EU power cord
    • eBOX560-500-FL-6600U-US
      Fanless embedded system with Intel® Core™ i7-6600U processor, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM, PCIe Mini Card, 12V 60W power adaptor and US power cord
    • eBOX560-500-FL-6600U-EU
      Fanless embedded system with Intel® Core™ i7-6600U processor, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM, PCIe Mini Card, 12V 60W power adaptor and EU power cord
    • eBOX560-500-FL-6300U-US
      Fanless embedded system with Intel® Core™ i5-6300U processor, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM, PCIe Mini Card, 12V 60W power adaptor and US power cord
    • eBOX560-500-FL-6300U-EU
      Fanless embedded system with Intel® Core™ i5-6300U processor, 2 HDMI, 2 GbE, LANs, 4 USB 3.0, 2 COM, PCIe Mini Card, 12V 60W power adaptor and EU power cord
    • 2.5” SATA HDD
      40GB or above
    • 2.5” SATA SSD
      4GB or above
    • DDR4 SO-DIMM
      2G~16G
    • Wall mount kit
      8816K5600A0E
    • VESA arm kit
      8816K5602A0E
    • DIN-rail kit
      8816K5601A0E
    • WLAN/WWAN module
  • Drivers

    Date Description Version Download File
    2017/06/01 Hot fix for ME installer (only for Win 7) V1.0 1,490.8KB
    2017/06/01 USB 3.0 Driver (only for Win 8.X) V1.0 6,302.8KB
    2017/06/01 Audio Driver V1.0 128,267KB
    2017/06/01 ME Driver V1.0 96,369KB
    2017/06/01 LAN Driver V1.0 193,918.7KB
    2017/06/01 Graphic Driver V1.0 181,950.1KB
    2017/06/01 Chipset Driver V1.0 2,761.7KB

    Software

    Manual

    Date Description Version Download File
    2017/06/01 Quick Manual V1.0 247.4KB
    2017/06/01 User's Manual V1.0 3,923.2KB

    Technical Announcement

    Certificates
