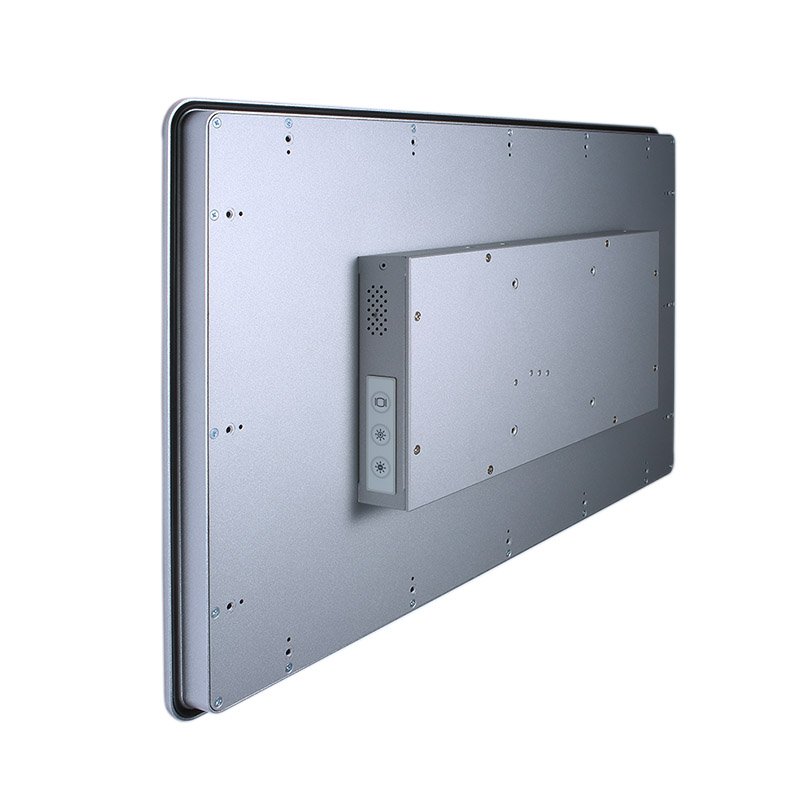

GOT3217WL-845-PCT

21.5" FHD TFT Multi-touch Panel Computer with Intel® Pentium® Processor N3710 (0°C to +45°C)

  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products
    • 21.5" FHD 10-point multi-touch projected capacitive wide screen
    • Fanless design with Intel® Pentium® processor N3710
    • 2.5" SATA HDD & mSATA
    • 3G, WLAN module & antennas (optional)
    • 2 Gigabit LANs, 2 USB 3.0, 2 USB 2.0 & 2 COM ports
    • IP65 aluminum front bezel
    • Supports panel mount and optional VESA arm/desktop stand/ wall mount
    • Adjust RS-232/422/485 setting via BIOS

    Introduction

    The GOT3217WL-845-PCT is powered by the Intel® Pentium® processor N3710. The industrial grade touch panel PC adopts a 21.5” FHD TFT wide screen LCD display with 10-point multi-touch projected capacitive technology and 250 nits brightness. With an intuitive multi-touch display and full HD resolution, the GOT3217WL-845-PCT is aimed at infotainment and self-services kiosk, digital signage, light industry and smart factory automation field. The widescreen GOT3217WL-845-PCT features an IP65-rated water/dust-proof front bezel and is able to withstand temperature range from 0°C to 45°C. Operational vibration resistance is up to 1G. Designed to offer a better viewing and operating experience, the power-efficient 21.5” touch panel PC supports Full HD resolution and 10-point multi-touch screen. This 21.5-inch touch panel system also supports Windows® 10 and Windows® 10 IoT.

  • LCD Panel
    • 21.5" FHD TFT LCD
    • 250 nits
    • 1920 x 1080
    CPU
    • Intel® Pentium® processor N3710 1.6 GHz (Braswell)
    Chipset
    • SoC Integrated
    System Memory
    • 1 x 204-pin SO-DIMM DDR3L-1333/1600, up to 8GB
    BIOS
    • AMI
    COM
    • 1 x RS-232
    • 1 x RS-232/422/485
    USB
    • 2 x USB 3.0
    • 2 x USB 2.0
    Ethernet
    • 2 x 10/100/1000 Mbps (Intel® i217LM & i210AT)
    Display
    • N/A
    Audio
    • Line-out
    Storage
    • 1 x 2.5" SATA HDD
    • 1 x mSATA
    Expansion
    • 1 x Full-size PCI Express Mini Card with mSATA
    • 1 x Full-size PCI Express Mini Card with SIM slot
    Others
    • 1 x Switch for power on/off (ATX)
    Touchscreen
    • 10-point projected capacitive multi-touch
    Front Bezel
    • IP65 front bezel
    Power Supply
    • DC version: 24 VDC
    • AC version: 12 VDC 60W adapter
    Power Comsumption
    • 48 W
    Watchdog Timer
    • 255 levels, 0~255 sec.
    Operating Temperature
    • 0°C ~ +45°C (+32°F ~ +113°F)
    Relative Humidity
    • 20% ~ 90% @ 40°C; non-condensing
    Vibration
    • 1 G, 10 ~ 500 Hz, random for 2.5" SATA HDD
    Dimensions
    (W x D x H)
    • 547.6 x 58.5 x 339 mm (21.56" x 2.30" x 13.35")
    Weight (net/gross)
    • 7.6 kg (16.8 lb)/10.5 kg (23.1 lb)
    Certification
    • CE
    EOS
    • Windows® 10 IoT, Windows® 10
    Mounting
    • Panel mount
    • VESA arm
    • Desktop stand
    • Wall mount
    • GOT3217WL-845-PCT-J
      21.5" FHD TFT fanless touch panel computer with Intel® Pentium® N3710 1.6 GHz quad core processor, 10-point projected capacitive multi-touch screen and AC-DC 12 VDC power adapter (screw type connector)
    • GOT3217WL-845-PCT-DC
      21.5" FHD TFT fanless touch panel computer with Intel® Pentium® N3710 1.6 GHz quad core processor, 10-point projected capacitive multi-touch screen and 24 VDC terminal block connector
  • Drivers

    Software

    Manual

    Date Description Version Download File
    2017/03/01 GOT3217W-845 User's Manual VA1.0 3,006.9KB
