NA345R

1U Rackmount Network Appliance Platform with Intel® Celeron® N3350 or Atom™ x5-E3940 Processor and 6 LANs

  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products
    • Intel® Celeron® N3350 or Atom™ x5-E3940 processor (Apollo Lake)
    • One DDR3L-1866 SO-DIMM, up to 8GB memory
    • Six 10/100/1000 Mbps Ethernet ports (Intel® i211)
    • Supports one 2.5" SATA3 HDD
    • Suitable for VPN, network bandwidth controller and firewall applications

    Introduction

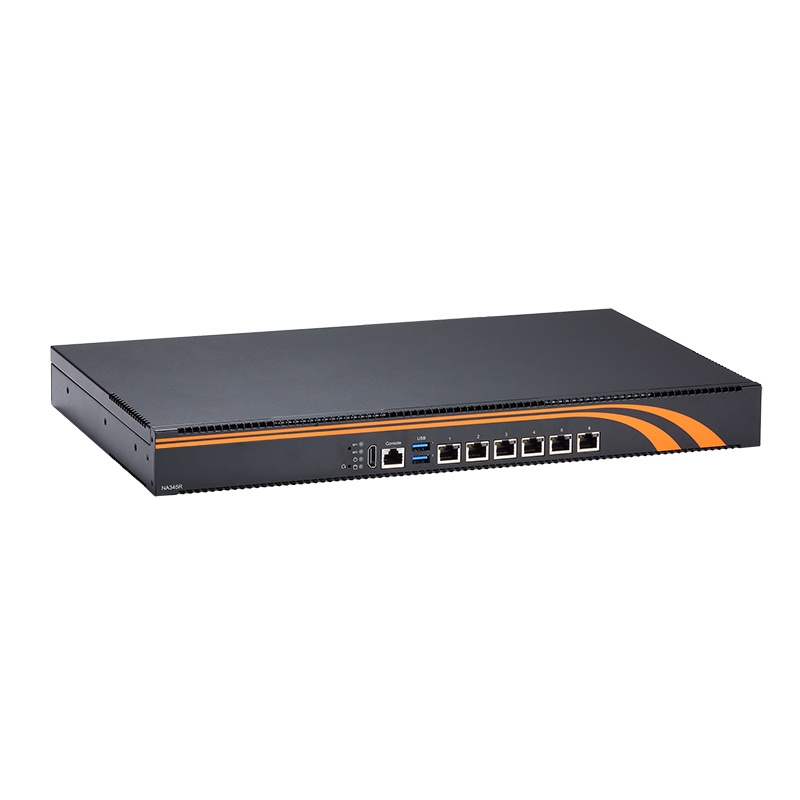

    The NA345R supports the Intel® Celeron® processor N3350 and Intel® Atom™ x5-E3940 processor. The reliable 1U rackmount network security platform features six Gigabit Ethernet ports using Intel® i211 Ethernet controller and supports one pair of LAN bypass function. It comes with one DDR3L-1866 SO-DIMM slot with up to 8GB non-ECC memory. One 2.5-inch SATA3 HDD and one mSATA are available for sufficient storage. Furthermore, it comes with one HDMI port for high definition display, two USB 3.0 ports for external devices, and one console port for device network management. The LED indicators are available on the front panel for convenient monitoring of power, HD, and LAN activity. To keep system running smoothly, the NA345R is equipped with a built-in watchdog timer which features 255 levels for system reset and 7 levels for LAN bypass. Finally, it is compliant with Win10 and Linux. Bringing high security and high reliability at a low cost, the NA345R is aimed for VPN, network bandwidth controller, and firewall applications.

  • Form Factor
    • 1U rackmount
    CPU
    • Intel® Celeron® N3350 or Atom™ x5-E3940 processor (Apollo Lake)
    Chipset
    • SoC integrated
    System Memory
    • 1 x SO-DIMM DDR3L-1866, up to 8GB non-ECC memory
    BIOS
    • AMI
    Ethernet
    • 6 x 10/100/1000 Mbps (Intel® i211)
    LAM Bypass
    • LAN Bypass function through latch relay (one pair)
    LAN Module
    • N/A
    Storage
    • 1 x 2.5" SATA3 HDD
    • 1 x mSATA
    • 1 x 3.5" SATA HDD (optional)
    Expansion
    • N/A
    I/O Interface
    • 1 x RS-232 (RJ-type)
    • 2 x USB 3.0
    • 6 x RJ-45
    • 1 x HDMI
    Power Supply
    • 65 W open frame
    LCM Module
    • Optional
    Operating Temperature
    • 0°C ~ +45°C (+32°F ~ +113°F)
    Dimensions
    (W x D x H)
    • 44 x 430 x 250 mm (1.73" x 16.93" x 9.84")
    Weight (net/gross)
    • 7 kg (15.43 lb)/8 kg (17.64 lb)
    OS
    • Win 10, Linux (Yocto project)
    Certificate
    • FCC class B/CE class B
    • NA345R-R6GI-US (P/N- E26E345101)
      1U rackmount appliance with Intel® Celeron® N3350 or Atom™ x5-E3940 processor and 6 GbE LANs
    • 5916E552000E
      DB9F-RJ-45 1.8M console cable for Cisco
