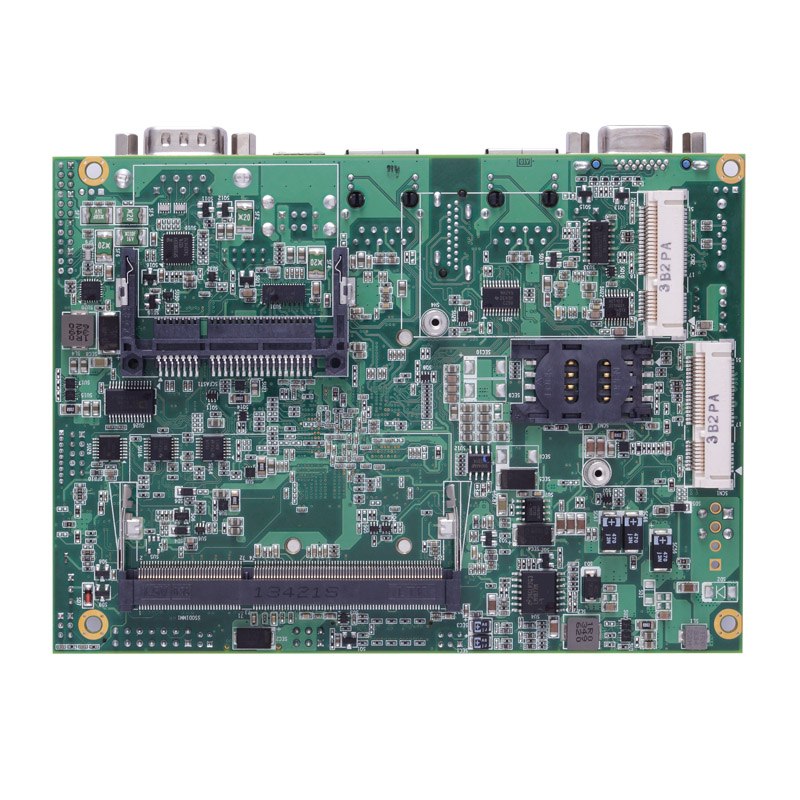

CAPA842

3.5" Embedded SBC with Intel® Celeron® Processor J1900/N2807, LVDS/VGA/HDMI, Dual LANs and Audio

  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products
    • Intel® Celeron® processor J1900/N2807 (Bay Trail SoC)
    • 1 DDR3L-1333 SO-DIMM, up to 8GB
    • 4 USB 2.0 ports
    • 4 COM ports
    • 2 PCI Express Mini Card slots and 1 SIM slot
    • 2 Gigabit Ethernet ports
    • LVDS/VGA/HDMI with dual-view supported

    Introduction

    The CAPA842, fanless 3.5-inch embedded board, is equipped with the newest 22nm Intel® Celeron® processor quad core J1900 (2.0GHz) or dual core Celeron® N2807 (1.58 GHz). The CAPA842 supports high bandwidth DDR3L-1333 SO-DIMM with memory up to 8 GB. Designed with fanless ultra-small form factor, the CAPA842 has excellent temperature tolerance for used in extremely harsh environments. With integrated Intel® Gfx graphics engine, up to 854MHz in turbo, this ultra-small 3.5-inch embedded single board computer provides completely new visual experiences, including faster media processing, full HD over HDMI, and spectacular HD playback, etc. Moreover, its multiple display outputs of HDMI, LVDS and VGA support dual views.

  • CPU
    • Intel® Celeron® processor J1900 quad core or N2807 dual core onboard (Bay Trail)
    Chipset
    • SoC integrated
    System Memory
    • 1 x 204-pin SO-DIMM DDR3L-1333, up to 8 GB
    BIOS
    • AMI
    COM
    • 2 x RS-232/422/485 with +5V/+12V powered
    • 2 x RS-232 with +5V/+12V powered
    USB
    • 4 x USB 2.0
    Ethernet
    • 2 x 10/100/1000 Mbps (Intel® i211AT)
    Display
    • 1 x VGA
    • 1 x LVDS
    • 1 x HDMI
    Digital I/O
    • 8-IN/OUT
    Audio
    • MIC-in/Line-in/Line-out/Speaker out
    Storage
    • 1 x CFast™
    • 1 x SATA-300
    Expansion
    • 1 x Full-size PCI Express Mini Card w/mSATA
    • 1 x Half-size PCI Express Mini Card
    • 1 x SIM slot
    Others
    • SMbus
    • TPM 1.2
    Battery
    • Lithium 3V/220mAH
    Power Input
    • 2 x 2-pin connector
    • +12V DC-in only
    • AT Auto Power On function supported
    Power Requirements
    • Intel® Celeron® J1900 @ 2 GHz, 8GB DDR3L
      Max. RMS: +12V @ 1.41A
    • Intel® Celeron® N2807 @ 1.58 GHz, 8GB DDR3L
      Max. RMS: +12V @ 0.64A
    Watchdog Timer
    • 255 levels, 1 ~ 255 sec.
    Hardware Monitoring
    • Yes
    Operating Temperature
    • -20°C ~ +70°C (-4°F ~ +158°F)
    Relative Humidity
    • 10% ~ 95% relative humidity, non-condensing
    Dimensions
    • 146 x 104 mm
    Board Thickness
    • 1.6 mm
    Certificate
    • CE
    • CAPA842VHGGA-J1900 (P/N-E38E842102)
      3.5" Embedded SBC with Intel® Celeron® processor J1900 (2 ~ 2.42 GHz, 2 MB Cache, 10 W), VGA/LVDS/HDMI, 2 GbE LANs and audio
    • CAPA842VHGGA-N2807 (P/N- E38E842100)
      3.5" Embedded SBC with Intel® Celeron® processor N2807 (1.58 ~ 2.16 GHz, 1 MB Cache, 4.3 W), VGA/LVDS/HDMI, 2 GbE LANs and audio
