- Intel® Celeron® processor J1900 2.0 GHz
- 204-pin DDR3L-1066/1333 SO-DIMM, up to 8GB
- Fanless operation design with full feature I/O
- 2 RS-232/422/485 and 4 USB 2.0 ports
- One 2.5” SATA drive bay and mSATA supported
- 2 PCI Express Mini Card slots and 1 SIM slot
- VGA and HDMI with dual-view supported
- -20°C to +60°C wide operating temperature range
Introduction

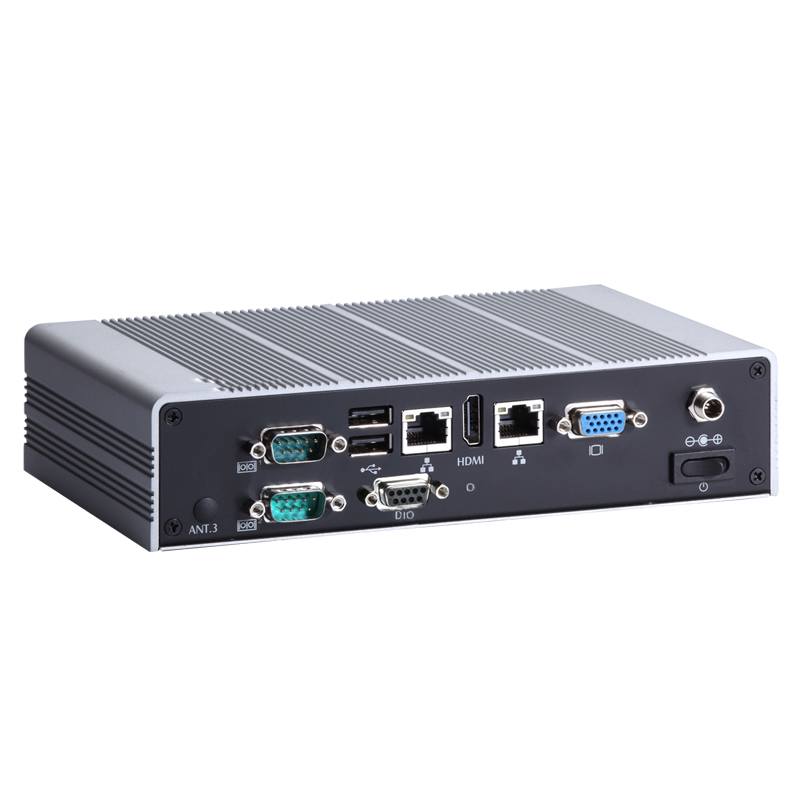

The eBOX625-842-FL industrial-grade, extreme slim, fanless embedded system is powered by quad cores Intel® Celeron™ J1900 2.0GHz SoC (system-on-a-chip). Through the use of Intel® Bay Trail-D type quad-core SoC and one 8 GB DDR3L-1066/1333 SO-DIMM socket, the energy-efficient embedded box computer offers outstanding performance, yet remarkably power efficient experience. Dramatically lighter and rugged enclosure enables the compact system to fit into limited space and withstand any harsh industry environment. The eBOX625-842-FL features dual displays and rich connection capability, including VGA, HDMI, 2 LAN ports, 2 COM ports, 4 USB 2.0 and 8-channel DI/DO, providing an ideal solution for variety applications from digital signage, transportation, kiosk, industrial control automation, medical equipment and IoT & M2M applications.
-
| CPU |
- Intel® Celeron® processor J1900 2.0 GHz
|
| Chipset |
|
| System Memory |
- 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8GB
|
| BIOS |
|
| COM |
|
| USB |
|
| Ethernet |
- 2 x 10/100/1000 Mbps (Intel® i211AT)
|
| Display |
|
| Digital I/O |
- 8-channel programmable digital I/O
|
| Audio |
|
| Storage |
- 1 x 2.5” SATA HDD
- 1 x mSATA
|
| Expansion |
- 1 x Full-size PCI Express Mini Card (USB + PCI Express signal)
- 1 x Half-size PCI Express Mini Card (USB + PCI Express signal)
- 1 x SIM slot
|
| Others |
- 3 x SMA type connector opening for antenna
|
| Power Supply |
- Input AC 90-264V, AC 36W adapter with lock
- Output: DC 12V @ 3A
|
| Watchdog Timer |
|
| Construction |
- Aluminum extrusion and heavy-duty steel, IP40
|
| Operating Temperature |
- -20°C ~ +55°C (with W.T. SSD/CAPA842)
|
| Relative Humidity |
- 10% ~ 90% , non-condensing
|
| Vibration |
- 3 Grms w/ SSD (5-500Hz, X, Y, Z directions)
|
Dimensions
(W x D x H) |
- 200 x 120 x 46 mm (7.87” x 4.72” x 1.81")
|
| Weight (net/gross) |
- 1.1kg (2.43lb)/ 1.8kg (3.97lb)
|
| Certificate |
|
| EOS Support |
|
| Mounting |
- Wall mount
- DIN-rail
- VESA mount
|
-
-
eBOX625-842-FL-J1900-US
Fanless embedded system with Intel® Celeron® J1900 2.0 GHz, 2 GbE LANs, 4 USB, 2 COM, 8 CH DI/DO, 36W AC/DC adapter and US power cord
-
eBOX625-842-FL-J1900-EU
Fanless embedded system with Intel® Celeron® J1900 2.0 GHz, 2 GbE LANs, 4 USB, 2 COM, 8 CH DI/DO, 36W AC/DC adapter and EU power cord
-
2.5” SATA HDD
40GB or above
-
2.5” SATA SSD
4GB or above
-
DDR3L SO-DIMM
1GB ~ 8GB
-
wall mount
88606200010E
-
VESA arm kit
88606200020E
-
DIN-rail kit
88606200030E
-
Wi-Fi module
-
Power cord
-
Drivers
| Date
|
Description
|
Version
|
Download File
|
|
2015/06/12
|
TXE for Windows 8
|
VA1.0
|
66,268.2KB
|
|
2015/06/12
|
Intel Sideband Fabric Driver for Windows 8
|
VA1.0
|
1,331.2KB
|
|
2015/06/12
|
Audio driver for Windows 7
|
VA1.0
|
172,995KB
|
|
2015/06/12
|
Audio driver for Windows 8
|
VA1.0
|
172,995KB
|
|
2015/06/12
|
Chipset driver for Windows 7
|
VA1.0
|
4,683.6KB
|
|
2015/06/12
|
Chipset driver for Windows 8
|
VA1.0
|
4,683.6KB
|
|
2015/06/12
|
Graphic driver for Windows 7
|
VA1.0
|
182,549.5KB
|
|
2015/06/12
|
Graphic driver for Windows 8
|
VA1.0
|
150,381.5KB
|
|
2015/06/12
|
LAN driver for Windows 7
|
VA1.0
|
48,497.5KB
|
|
2015/06/12
|
LAN driver for Windows 8
|
VA1.0
|
48,209.6KB
|
