NANO842

Nano-ITX SBC with Intel® Celeron® Processor J1900/N2807, LVDS/VGA/HDMI, Dual LANs and Audio

  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products
    • Intel® Celeron® Processor J1900/N2807 (Bay Trail SoC)
    • 1 DDR3L-1066/1333 SO-DIMM, up to 8GB
    • 5 USB 2.0 ports and 1 USB 3.0 port
    • 2 COM ports
    • 2 PCI Express Mini Card slots

    Introduction

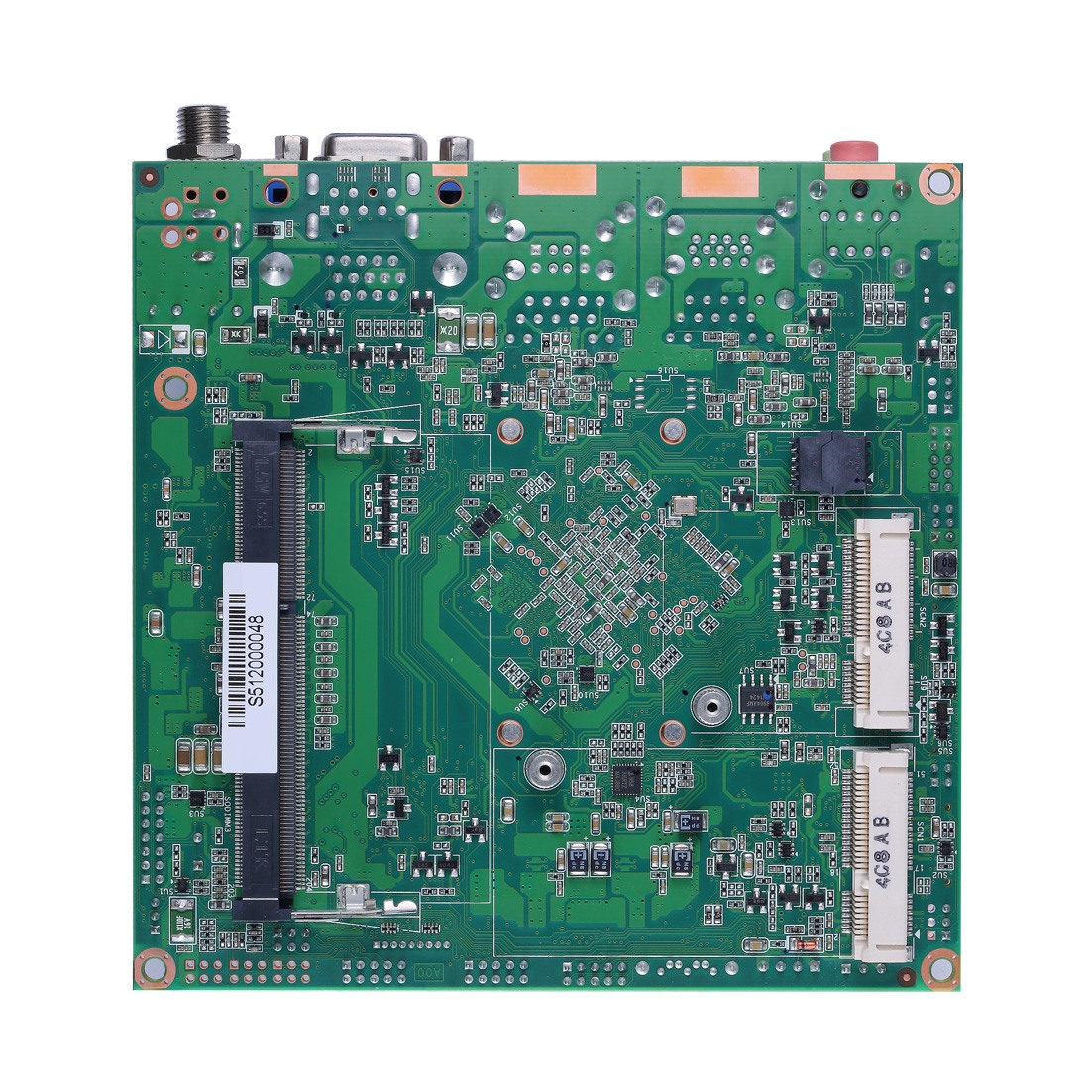

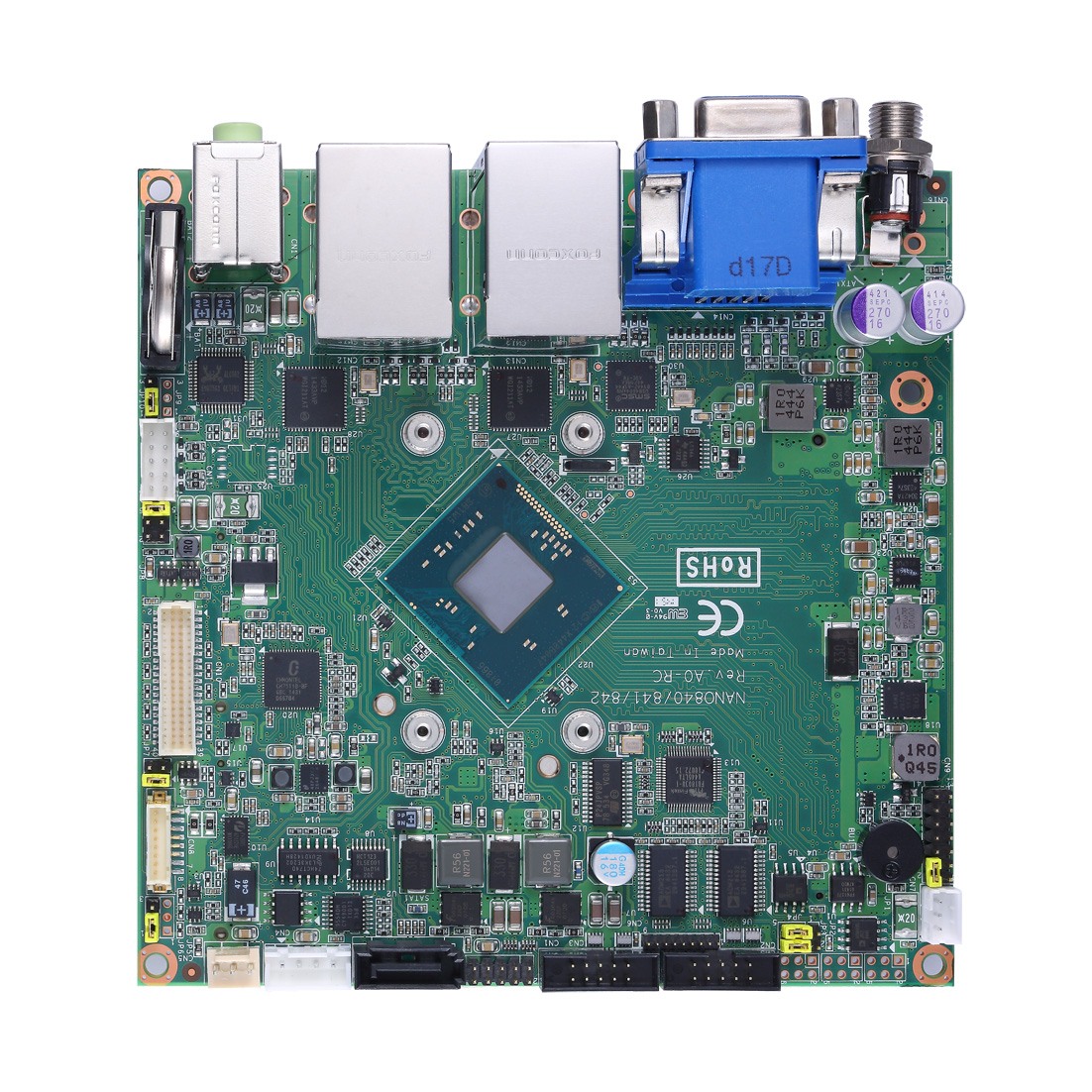

    The NANO842 Nano-ITX motherboard is designed to support the Intel® Celeron® processors quad-core J1900 and dual-core N2807 (code name: Bay Trail). A DDR3L SO-DIMM socket located on the bottom of the board can support up to 8GB of DDR3L memory. It can handle operating temperatures from -20°C to 70°C, and runs on +12V DC input. This 120 x 120 mm industrial embedded board comes with multiple display outputs: HDMI, LVDS and VGA with visual experiences enhanced for dual-view supported. The Axiomtek NANO842 is an ideal solution aimed at embedded, industrial, and IoT applications.

  • CPU
    • Intel® Celeron® Processor J1900 2.0 GHz & N2807 1.58 GHz onboard
    Chipset
    • SoC integrated
    System Memory
    • 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8GB
    BIOS
    • AMI
    COM
    • 1 x RS-232/422/485 with +5V/+12V powered
    • 1 x RS-232
    USB
    • 5 x USB 2.0
    • 1 x USB 3.0
    Ethernet
    • 2 x 10/100/1000Mbps (Intel® i211AT)
    Display
    • 1 x VGA
    • 1 x LVDS
    • 1 x HDMI
    Digital I/O
    • 8-IN/OUT
    Audio
    • MIC-in/Line-out
    Storage
    • 1 x SATA-300
    Expansion
    • 1 x Full-Size PCI Express Mini Card w/mSATA
    • 1 x Half-Size PCI Express Mini Card
    Others
    • ST ST33TPM12LPC with TPM 1.2 compliant
    Battery
    • Lithium 3V/220mAH
    Power Input
    • DC power jackconnector
    • +12V DC-in
    • AT Auto Power On function supported
    Power Requirements
    • Intel® Celeron® J1900 @ 2 GHz 8 GB DDR3L
      Max. RMS: +12V @0.9A
    • Intel® Celeron® N2807 @ 1.58 GHz 8 GB DDR3L
      Max. RMS: +12V @0.7A
    Hardware Monitoring
    • Yes
    Watchdog Timer
    • 255 levels, 1~255 sec.
    Operating Temperature
    • -20°C ~ +70°C (-4°F ~ 158°F)
    Relative Humidity
    • 10% ~ 95% relative humidity, non-condensing
    Dimensions
    • 120 x 120 mm
    Board Thickness
    • 1.6 mm
    Certificate
    • CE
    • NANO842VHGGA-J1900 (P/N-E38K842100)
      Nano-ITX SBC with Intel® Celeron® processor J1900 (2 GHz-2.4 GHz, 2 MB Cache, 10W), VGA/LVDS/HDMI, 2 GbE LANs, and audio
    • NANO842VHGGA-N2807 (P/N- E38K842101)
      Nano-ITX SBC with Intel® Celeron® processor N2807 (1.58 GHz-2.16 GHz, 1 MB Cache, 4.3W), VGA/LVDS/HDMI, 2 GbE LANs, and audio
  • Drivers

    Date Description Version Download File
    2017/07/12 Function driver for Windows 10 VA1.1 387,047.9KB
    2017/07/12 Function driver for Windows 8 VA1.1 523,771.8KB
    2017/07/12 Function driver for Windows 7 VA1.1 499,407KB

    Software

    Manual

    Date Description Version Download File
    2015/08/28 User's Manual VA1.0 5,030.1KB
    2015/08/28 Quick Manual VA1.0 111.6KB

    Technical Announcement

    Certificates

    Date Description Version Download File
    2017/08/08 CE-Conformity Declaration 48.8KB
