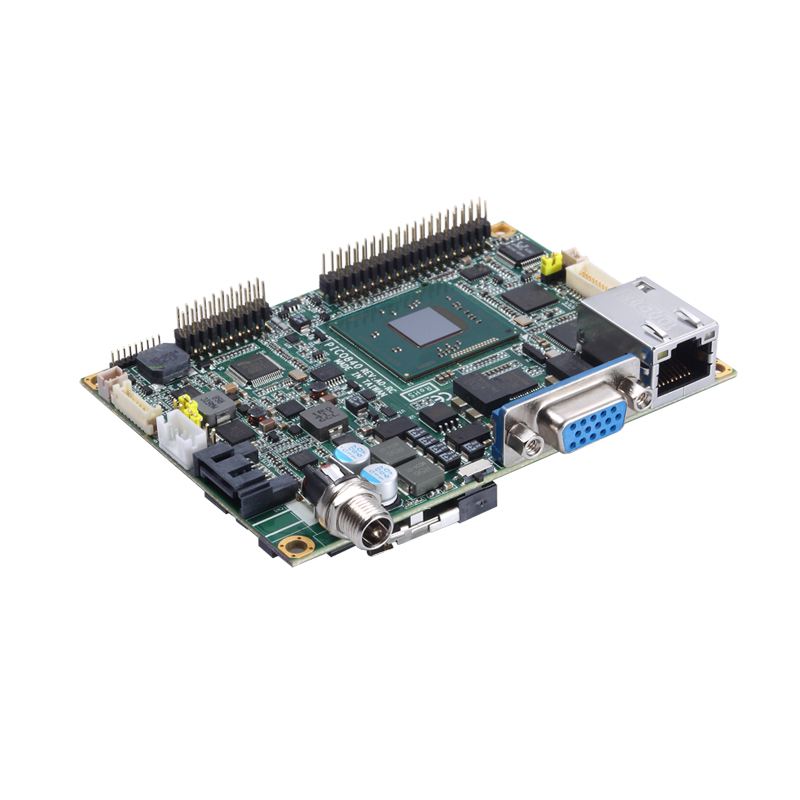

PICO842

Pico-ITX SBC with Intel® Celeron® Processor J1900/N2807, LVDS/VGA (HDMI), LAN and Audio

Status:Available
Related News
Add to Compare
Add to Inquiry List
Datasheet (PDF)
PICO842 PICO842 PICO842
  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products

Features

  • Intel® Celeron® processor J1900/N2807 (Bay Trail SoC)
  • 1 DDR3L-1066/1333 SO-DIMM, up to 8GB
  • 4 USB 2.0 ports
  • 2 COM ports (RS-232/422/485 selectable)
  • PCI Express Mini Card with mSATA supported

Introduction

The PICO842, an extreme-compact fanless pico-ITX motherboard, is designed to support the Intel® Celeron® processors quad-core J1900 and dual-core N2807 (codename: ). Its system memory supports up to 8GB of DDR3L. The extreme compact-size fanless embedded board supports dual display outputs through HDMI or VGA, and 18/24-bit single/dual channel LVDS. With improved media and graphics performance, the Axiomtek PICO842 is suitable for any graphics, imaging, and video intensive application. Its ultra slim size also makes it perfectly suitable for IoT, medical, automation, and embedded systems.

CPU
  • Intel® Celeron® processor J1900 (up to 2.42 GHz) /N2807 (up to 2.16 GHz)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 4 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i211AT)
Display
  • 1 x VGA or 1 x HDMI
  • 1 x LVDS
Digital I/O
  • N/A
Audio
  • MIC-in/Line-out
Storage
  • 1 x SATA-300
Expansion
  • 1 x Full-Size PCI Express Mini Card with mSATA supported
Others
  • SMbus
  • ST ST33TPM12LPC with TPM 1.2 compliant
Battery
  • Lithium 3 V/ 220 mAH
Power Input
  • DC power jack connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Celeron® J1900 @ 8GB DDR3L
    Max. RMS. +12V @ 0.9A
  • Intel® Celeron® N2807 @ 8GB DDR3L
    Max. RMS. +12V @ 0.7A
Watchdog Timer
  • 255 levels, 1~255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C ~ +70°C (-4°F ~ 158°F)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 100 x 72 mm
Board Thickness
  • 1.6 mm
Certificate
  • CE
  • PICO842VGA-J1900 (P/N-E38H842100)
  • Pico-ITX SBC with Intel® Celeron® processor J1900 (2-2.4 GHz, 2 MB Cache, 10W), VGA/LVDS, 1 GbE LAN, audio and gift box
  • PICO842VGA-N2807 (P/N- E38H842101)
  • Pico-ITX SBC with Intel® Celeron® processor N2807 (1.58-2.16 GHz, 1 MB Cache, 4.3W), VGA/LVDS, 1 GbE LAN, audio and gift box
  • PICO842HGA-J1900 (P/N-E38H842102)
  • Pico-ITX SBC with Intel® Celeron® processor J1900 (2-2.4 GHz, 2 MB Cache, 10W), HDMI/LVDS, 1 GbE LAN, audio and gift box
  • PICO842HGA-N2807 (P/N-E38H842103)
  • Pico-ITX SBC with Intel® Celeron® processor N2807 (1.58-2.16 GHz, 1 MB Cache, 4.3W), HDMI/LVDS, 1 GbE LAN, audio and gift box

Drivers

Date Description Version Download File
2017/07/12 Function driver for Windows 10 VA1.3 494,680.7KB
2017/07/12 Function driver for Windows 8 VA1.3 504,568.7KB
2017/07/12 Function driver for Windows 7 VA1.3 477,960.3KB

Software

Manual

Date Description Version Download File
2015/12/25 PICO840_PICO842 User's Manual VA2_ 09-01-2015 VA2.0 4,484.2KB
2015/12/25 AX93283 Quick Manual VA1_03-03-2015 VA1.0 65.8KB

Technical Announcement

Certificates

Date Description Version Download File
2017/08/09 CE-Conformity Declaration 46.6KB

Please read our Software License Information

Picture of PICO840

PICO840

Pico-ITX SBC with Intel® Atom® Processor E3845/E3827, LVDS/ VGA (HDMI), LAN and Audio

Datasheet (PDF)
PICO842 PICO842 PICO842
  • Features
  • Features

    • Intel® Celeron® processor J1900/N2807 (Bay Trail SoC)
    • 1 DDR3L-1066/1333 SO-DIMM, up to 8GB
    • 4 USB 2.0 ports
    • 2 COM ports (RS-232/422/485 selectable)
    • PCI Express Mini Card with mSATA supported

    Introduction

    The PICO842, an extreme-compact fanless pico-ITX motherboard, is designed to support the Intel® Celeron® processors quad-core J1900 and dual-core N2807 (codename: ). Its system memory supports up to 8GB of DDR3L. The extreme compact-size fanless embedded board supports dual display outputs through HDMI or VGA, and 18/24-bit single/dual channel LVDS. With improved media and graphics performance, the Axiomtek PICO842 is suitable for any graphics, imaging, and video intensive application. Its ultra slim size also makes it perfectly suitable for IoT, medical, automation, and embedded systems.

  • Specifications
  • CPU
    • Intel® Celeron® processor J1900 (up to 2.42 GHz) /N2807 (up to 2.16 GHz)
    Chipset
    • SoC integrated
    System Memory
    • 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8GB
    BIOS
    • AMI
    COM
    • 2 x RS-232/422/485
    USB
    • 4 x USB 2.0
    Ethernet
    • 1 x 10/100/1000 Mbps (Intel® i211AT)
    Display
    • 1 x VGA or 1 x HDMI
    • 1 x LVDS
    Digital I/O
    • N/A
    Audio
    • MIC-in/Line-out
    Storage
    • 1 x SATA-300
    Expansion
    • 1 x Full-Size PCI Express Mini Card with mSATA supported
    Others
    • SMbus
    • ST ST33TPM12LPC with TPM 1.2 compliant
    Battery
    • Lithium 3 V/ 220 mAH
    Power Input
    • DC power jack connector
    • +12V DC-in only
    • AT Auto Power On function supported
    Power Requirements
    • Intel® Celeron® J1900 @ 8GB DDR3L
      Max. RMS. +12V @ 0.9A
    • Intel® Celeron® N2807 @ 8GB DDR3L
      Max. RMS. +12V @ 0.7A
    Watchdog Timer
    • 255 levels, 1~255 sec.
    Hardware Monitoring
    • Yes
    Operating Temperature
    • -20°C ~ +70°C (-4°F ~ 158°F)
    Relative Humidity
    • 10% ~ 95% relative humidity, non-condensing
    Dimensions
    • 100 x 72 mm
    Board Thickness
    • 1.6 mm
    Certificate
    • CE
  • Ordering Information
    • PICO842VGA-J1900 (P/N-E38H842100)
    • Pico-ITX SBC with Intel® Celeron® processor J1900 (2-2.4 GHz, 2 MB Cache, 10W), VGA/LVDS, 1 GbE LAN, audio and gift box
    • PICO842VGA-N2807 (P/N- E38H842101)
    • Pico-ITX SBC with Intel® Celeron® processor N2807 (1.58-2.16 GHz, 1 MB Cache, 4.3W), VGA/LVDS, 1 GbE LAN, audio and gift box
    • PICO842HGA-J1900 (P/N-E38H842102)
    • Pico-ITX SBC with Intel® Celeron® processor J1900 (2-2.4 GHz, 2 MB Cache, 10W), HDMI/LVDS, 1 GbE LAN, audio and gift box
    • PICO842HGA-N2807 (P/N-E38H842103)
    • Pico-ITX SBC with Intel® Celeron® processor N2807 (1.58-2.16 GHz, 1 MB Cache, 4.3W), HDMI/LVDS, 1 GbE LAN, audio and gift box
  • Download
  • Drivers

    Date Description Version Download File
    2017/07/12 Function driver for Windows 10 VA1.3 494,680.7KB
    2017/07/12 Function driver for Windows 8 VA1.3 504,568.7KB
    2017/07/12 Function driver for Windows 7 VA1.3 477,960.3KB

    Software

    Manual

    Date Description Version Download File
    2015/12/25 PICO840_PICO842 User's Manual VA2_ 09-01-2015 VA2.0 4,484.2KB
    2015/12/25 AX93283 Quick Manual VA1_03-03-2015 VA1.0 65.8KB

    Technical Announcement

    Certificates

    Date Description Version Download File
    2017/08/09 CE-Conformity Declaration 46.6KB

    Please read our Software License Information

  • Related Products

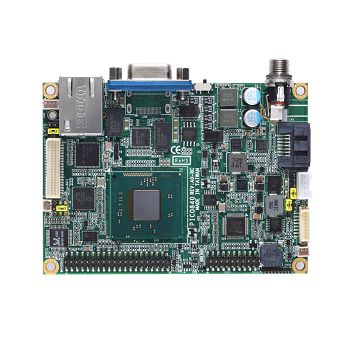

  • Picture of PICO840

    PICO840

    Pico-ITX SBC with Intel® Atom® Processor E3845/E3827, LVDS/ VGA (HDMI), LAN and Audio

    Datasheet (PDF)

Latest News

Axiomtek Reveals Its High Performance yet Low Power Mini-ITX Motherboard - MANO310

Video

PICO500- Pico-ITX SBC with 6th Generation Intel® Core™ Processor

Solution

Kaby Lake Ready Embedded Solutions

Products

  • Boards & Modules
  • Systems & Platforms
  • Industrial Panel PCs
  • IoT & M2M

Solutions

  • Industrial Automation
  • Transportation
  • Medical Solution
  • Digital Signage
  • Power and Energy
  • Kiosk and Self-service
  • Internet of Things (IoT)
  • Network Security
  • Gaming Solution

What's New

  • New Products
  • Press Releases
  • eNewsletters
  • Upcoming Events
  • Promotions
  • RSS Feeds

Resources

  • White Papers
  • Articles
  • Online Catalogs
  • Videos
  • Axiomtek App
  • Social Links

Support

  • Downloads
  • Datasheet (PDF)
  • Technical Support
  • Technical FAQ
  • Online RMA (International)
  • Online RMA (USA)
  • Partner Zone

Corporate

  • Company Profile
  • Milestones
  • Management Team
  • Support & Service
  • Product Lines
  • Job Openings
  • Worldwide Offices

Contact Us

  • Product Inquiry
  • Catalog Request
  • Channel Partners
  • Sales Contacts
  • Partnership
FacebookTwitterLinkinGoogle+YoutubeInstagram
eNews Subscription
Feedback
Sitemap
Privacy
Cookie
© 2018 Axiomtek Co., Ltd.

Axiomtek Websites use cookies to improve and personalize your experience. The Websites may also include cookies from third parties. By using this site, you consent to the use of cookies. Learn more.

Agree
