Embedded Boards & SoMs

3.5" Embedded Board

  • Result Per Page
  • Order By
  • Sort By
Product Model CPU Chipset LAN/ USB/ COM/ SATA Display Expansion

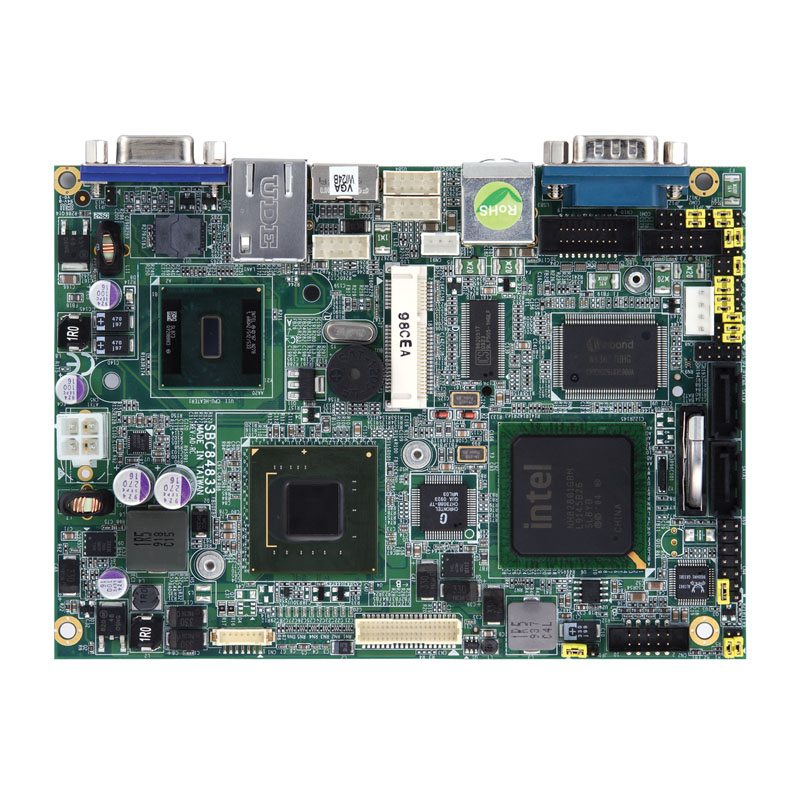

SBC84833 Atom™ N270 945GSE + ICH7M 1/7/4/2 VGA, LVDS, PCI Express Mini Card
SBC84832 Atom™ N270 945GSE + ICH7M 2/6/2/2 VGA, LVDS PCI Express Mini Card

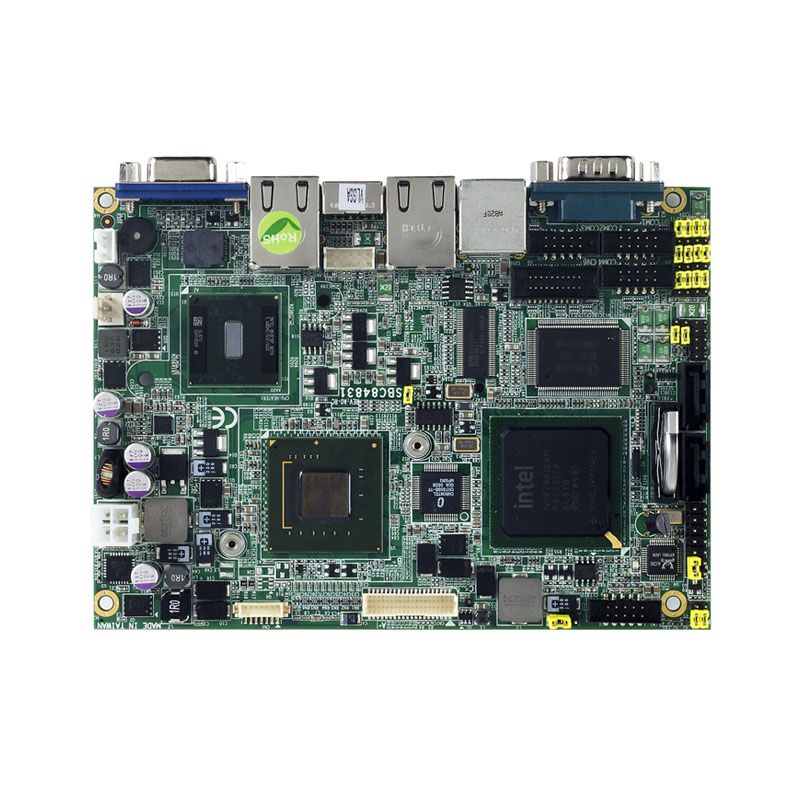

SBC84831 Atom™ N270 945GSE + ICH7M 2/4/6/2 VGA, LVDS N/A

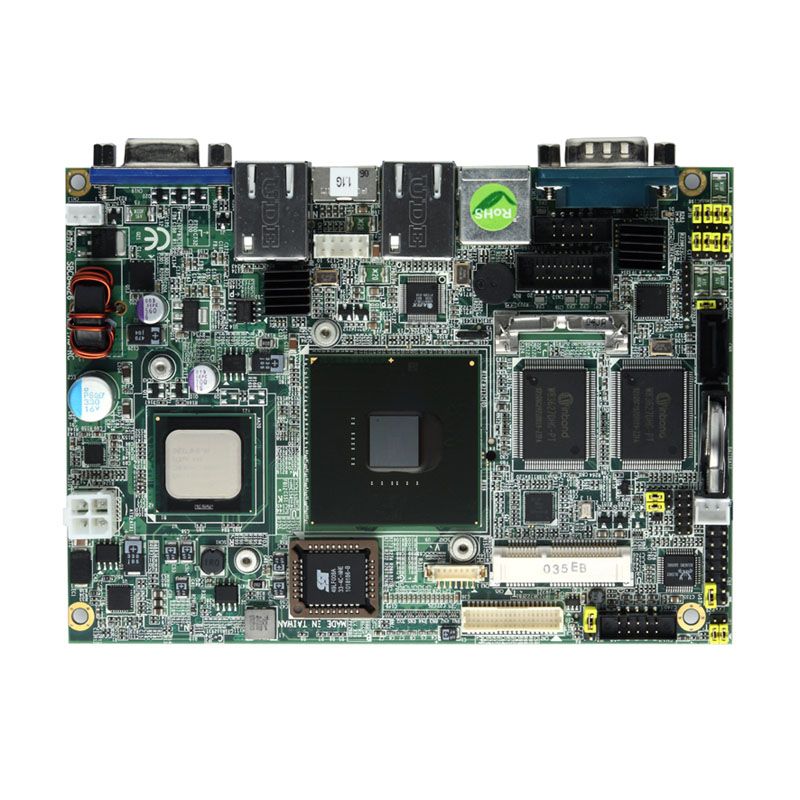

SBC84826 Atom™ Z510PT US15WPT 2/4/4/1 VGA, LVDS PCI Express Mini Card
SBC84823 Atom™ Z510PT/ Z520PT US15WPT 1/6/4/1 VGA, LVDS PCI Express Mini Card

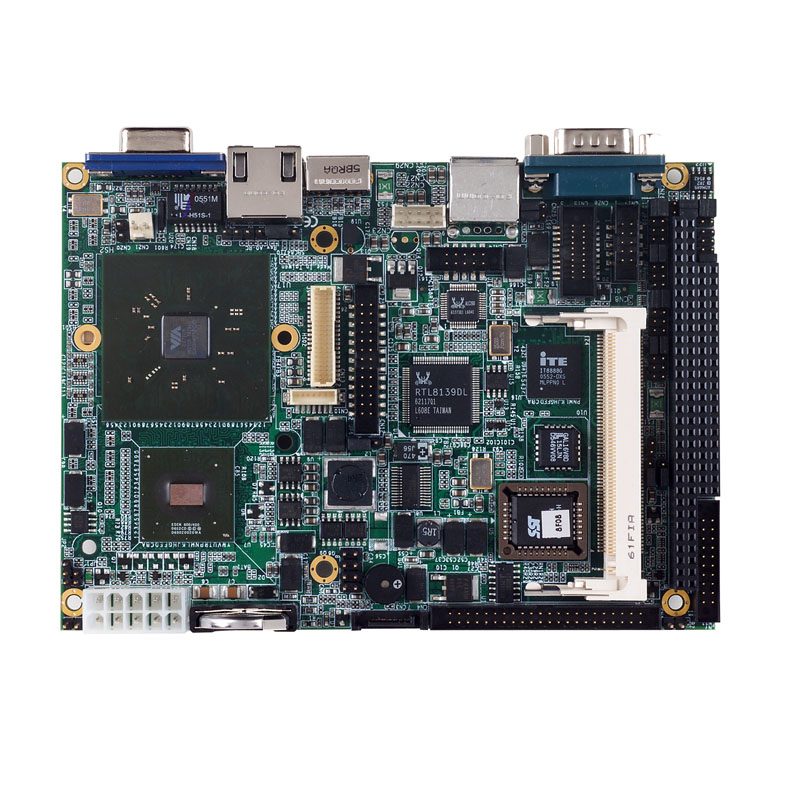

SBC84710 VIA V4 CX700M 1/4/4/1 VGA, LVDS MiniPCI, PC/104
SBC84622 AMD LX800 CS5536AD 2/4/4/0 VGA, TTL, LVDS N/A
SBC84621 AMD LX800 CS5536AD 2/4/4/0 VGA, LVDS MiniPCI, PC/104
SBC84620 AMD LX800 CS5536AD 2/4/4/0 VGA, TTL MiniPCI, PC/104
CAPA831 Atom™ D2550/ N2600/ N2800 NM10 2/6/4/1 DisplayPort, VGA, LVDS PCI Express Mini Card V1.2
CAPA830 Atom™ D2550/ N2600/ N2800 NM10 2/6/2/1 VGA, HDMI, LVDS PCI Express Mini Card, ZIO connector

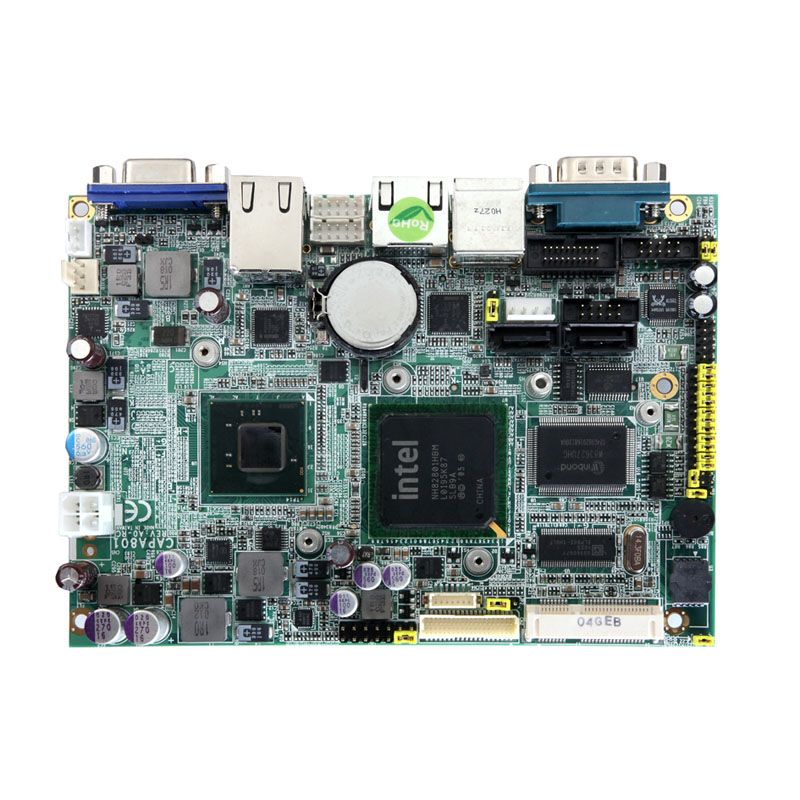

CAPA801 Atom™ N455/ D425/ D525 ICH8M 2/6/4/2 VGA, LVDS PCI Express Mini Card

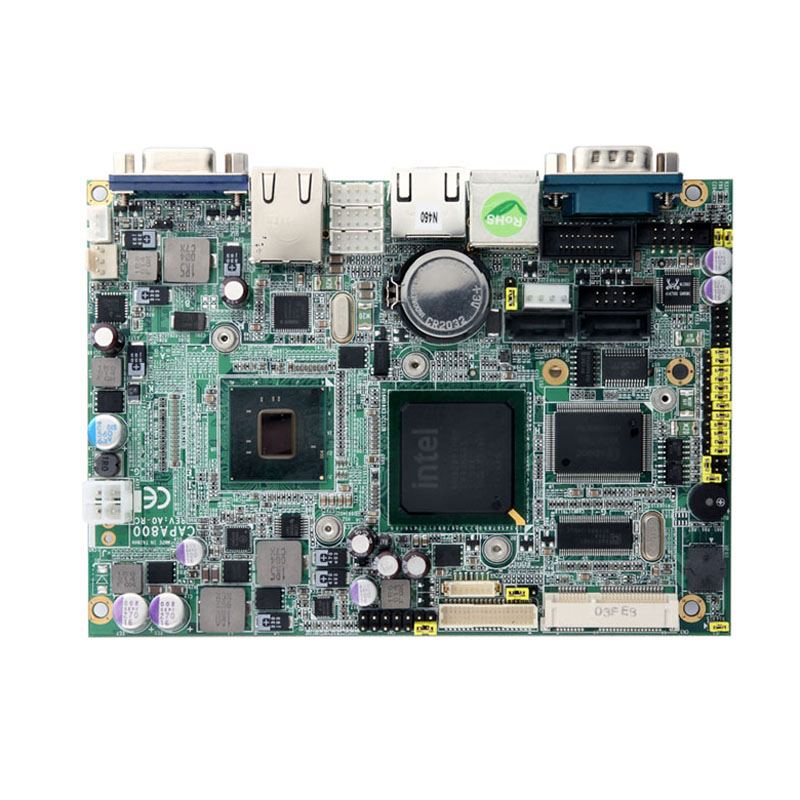

CAPA800 Atom™ N450/ D410/ D510 ICH8M 2/6/4/2 VGA, LVDS PCI Express Mini Card
CAPA111 AMD G-Series T40R/T40E FCH A50M 2/6/4/2 VGA, LVDS PCI Express Mini Card
CAPA110 AMD G-Series T56N FCH A50M 2/6/4/2 DisplayPort, VGA, LVDS PCI Express Mini Card
1 / 1 Page(s)
Total 15 item(s)
