IPC916-211-FL

6-slot Fanless System with Socket P (478-pin) Intel® Core™2 Duo Processor up to 2.53 GHz, Intel® GM45 Chipset, PCIe and PCI Slots

  • Features
  • Ordering Information
  • Download
  • Related Products
    • Socket P (478-pin) for Intel® Core™2 Duo/Celeron® M processors
    • Fanless operation
    • Intel® GM45 + ICH9M chipset
    • Supports 6 expansion slots
    • Two 2.5" SATA HDD drive bay
    • DC to DC power supply supports 10V ~ 30V
    • Compact & front I/O design

    Introduction

    The IPC916-211-FL fanless barebone system with six expansion slots, built with the Intel® GM45 Express chipset and ICH9M Southbridge, supports socket P Intel® Core™2 Duo and Celeron® M processors with a 667/800/1066 MHz FSB. To satisfy expansion capability requirement for industrial needs, the IPC916-211-FL barebone system provides two PCI, one PCIe x16 and three PCIe x1 slots. Two 204-pin SODIMM sockets support up to 8G DDR3 800/1066 system memory. Certification with CE marking, the IPC916-211-FL is an application-ready platform targeted at industrial automation, kiosk/POI, digital signage, gaming, and DVR.

    • IPC916-211-FL-HAB107-DC(P/N-E26G916100)
      6-slot fanless system with socket P Intel® Core™2 Duo, PCI & PCIe slots, DC-in ATX 150W P/S
    • IPC916-211-FL-HAB107-AC(P/N-E26G916101)
      6-slot fanless system with socket P Intel® Core™2 Duo, PCI & PCIe slots, DC-in ATX 150W P/S and AC-DC 150W power adaptor and US power cord
  • BIOS

    Date Description Version File Size
    2012/9/6 BIOS V2.04 707.9KB

    Drivers

    Date Description Version File Size
    2012/9/6 Chipset driver A1.0 1,933.4KB
    2012/9/6 Graphics driver A1.0 77,423.7KB
    2012/9/6 LAN driver A1.0 7,367.5KB
    2012/9/6 Audio driver A1.0 70,846.3KB
    2012/9/6 AHCI driver A1.0 398.3KB
    2012/9/6 Intel Matrix Storage Manager driver A1.0 19,625.9KB
    2012/9/6 CAN bus driver A1.0 31,469.4KB

    Manual

    Date Description Version File Size
    2012/9/6 user's manual A1.0 2,420.5KB

    Software

    The object is under update temporarily, please download it later.

    CE Conformity Declaration

    The object is under update temporarily, please download it later.

    Technical Announcement

    The object is under update temporarily, please download it later.

    Mechanical

    Date Description Version File Size
    2012/3/21 IPC916-211-FL_OD-20120310B0.pdf N/A 107.6KB
  • SHB211

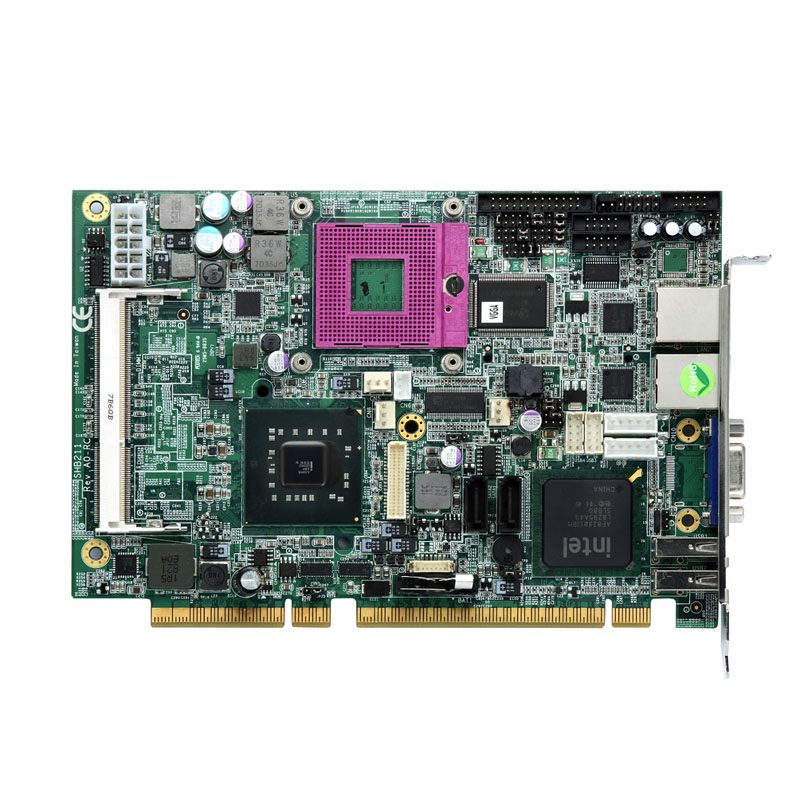

    Socket P Intel® Core™2 Duo PICMG 1.3 Half-size CPU Card with Intel® GM45 + ICH9M/ICH9M-E Chipset, VGA/LVDS, Dual LANs and Audio
