Product
|
Model
|
CPU
|
Chipset
|
I/O
|
Expansion
|
Storage
|
|
eBOX730-860-FL
|
Core™ i7/ i3/ Celeron
|
QM67
|
2 x LAN, 6 x USB, 8 x isolated COM, 1 x DVI-I, 2 x DisplayPort, 8 x isolated DI/DO
|
2 x PCI Express Min Card, 2 x SIM card
|
2.5-inch SATA HDD, CFast
|
|
eBOX623-831-FL
|
Atom™ N2600
|
NM10
|
2 x LAN, 6 x USB, 4 x COM, 1 x VGA, 1 x DisplayPort
|
1 x PCI Express Mini Card
|
2.5-inch SATA HDD, CFast
|
|
eBOX530-830-FL
|
Atom™ N2600
|
NM10
|
1 x LAN, 4 x USB, 2 x COM, 1 x VGA or 1 x DisplayPort
|
N/A
|
2.5-inch SATA HDD, CFast
|
|

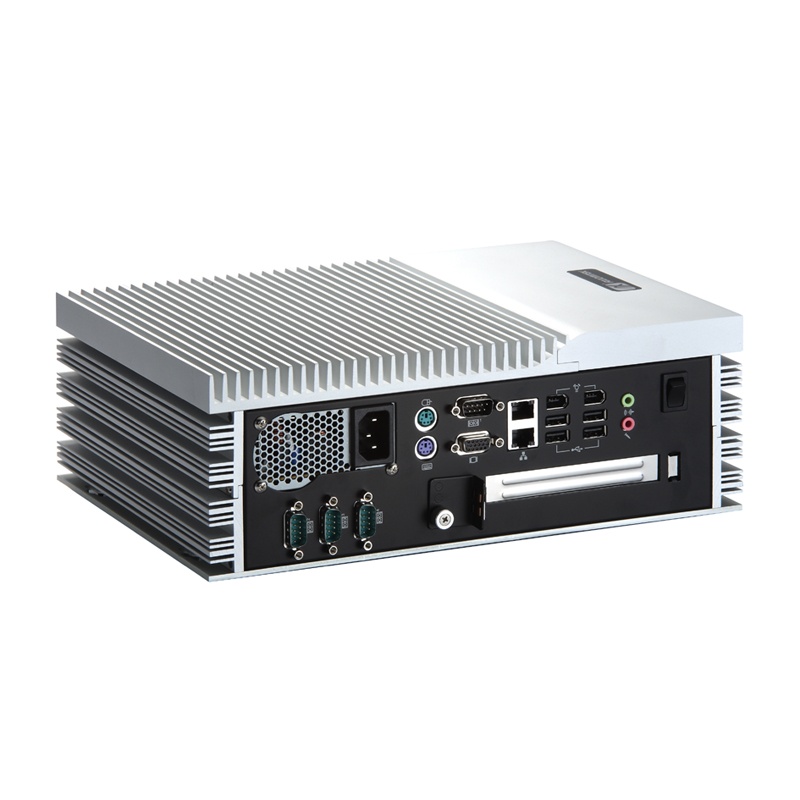

eBOX832-831
|
Core™2 Duo
|
945GME + ICH7M/-DH
|
2 x LAN, 6 x USB, 4 x COM, 1 x VGA
|
1 x PCIe x16
|
2.5-inch SATA HDD
|
|
eBOX830-831-FL
|
Core™2 Duo
|
945GME + ICH7M/-DH
|
2 x LAN, 6 x USB, 4 x COM, 1 x VGA
|
1 x PCI
|
2.5-inch SATA HDD
|
|

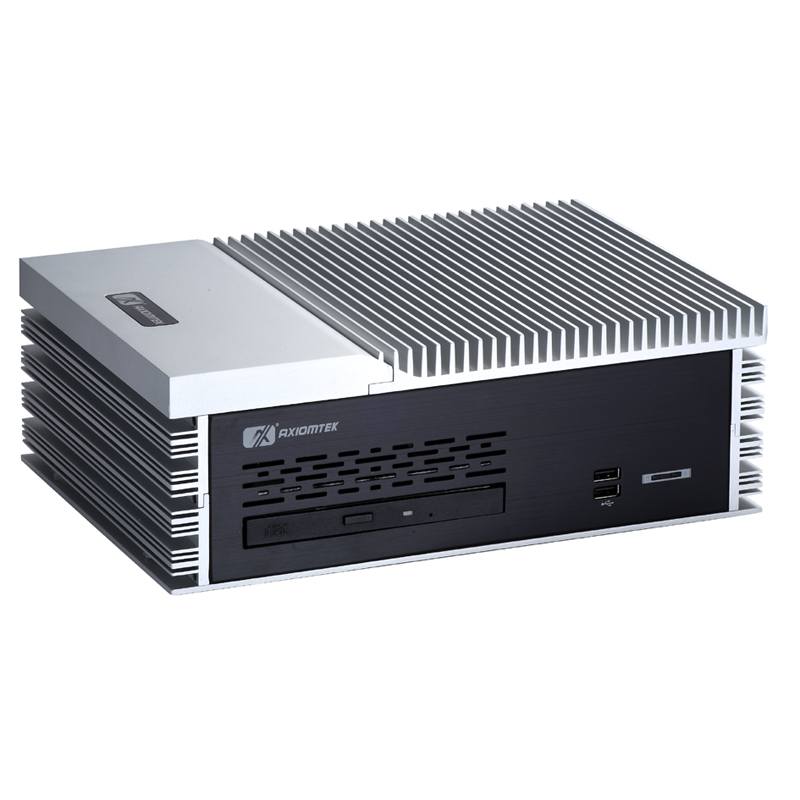

eBOX830-831
|
Core™2 Duo
|
945GME + ICH7M/-DH
|
2 x LAN, 6 x USB, 4 x COM, 1 x VGA
|
1 x PCI
|
2.5-inch SATA HDD
|
|
eBOX830-822-FL
|
Celeron® M/ Pentium® M
|
910GMLE+ICH6M
|
2 x LAN, 6 x USB, 6 x COM, 1 x VGA
|
1 x PCI
|
2.5-inch SATA HDD
|
|

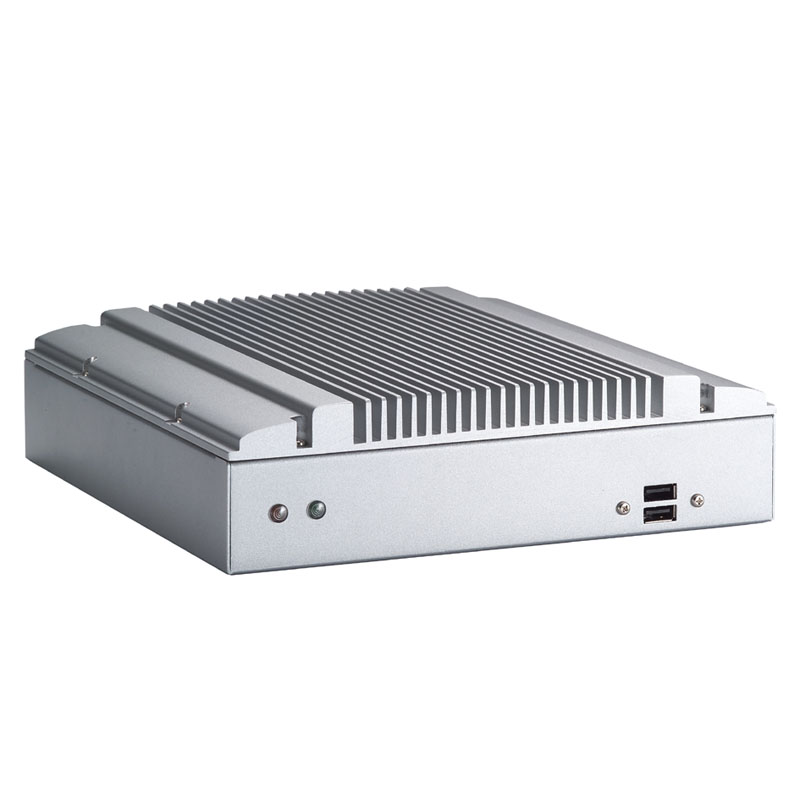

eBOX746A-FL
|
VIA Eden/ C7
|
CX700M
|
1 x LAN, 3 x USB, 4 x COM, 1 x VGA,
|
N/A
|
2.5-inch IDE HDD, CompactFlash
|
|

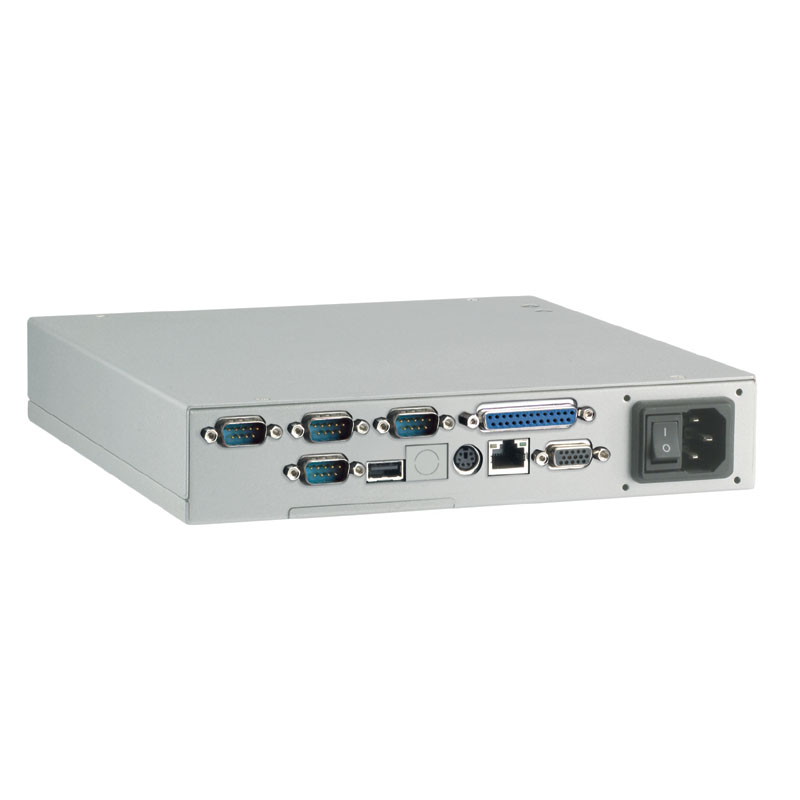

eBOX745-FL500
|
AMD Geode™ LX800
|
LX + CS5536
|
2 x LAN, 3 x USB, 4 x COM, 1 x VGA
|
N/A
|
2.5-inch IDE HDD, CompactFlash
|
|

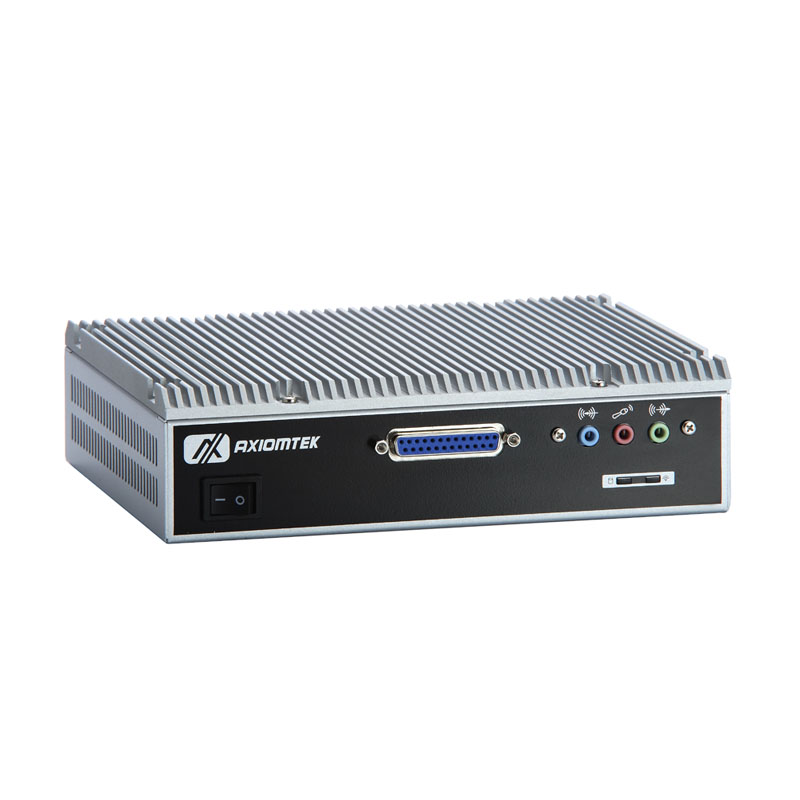

eBOX647-FL
|
VIA C7
|
CX700M + ITE8888G
|
1 x LAN, 2 x USB, 4 x COM, 1 x VGA
|
N/A
|
CompactFlash
|
|
eBOX646-FL
|
AMD Geode™ LX800
|
LX + CS5536
|
2 x LAN, 3 x USB, 4 x COM, 1 x VGA
|
N/A
|
CompactFlash
|
|

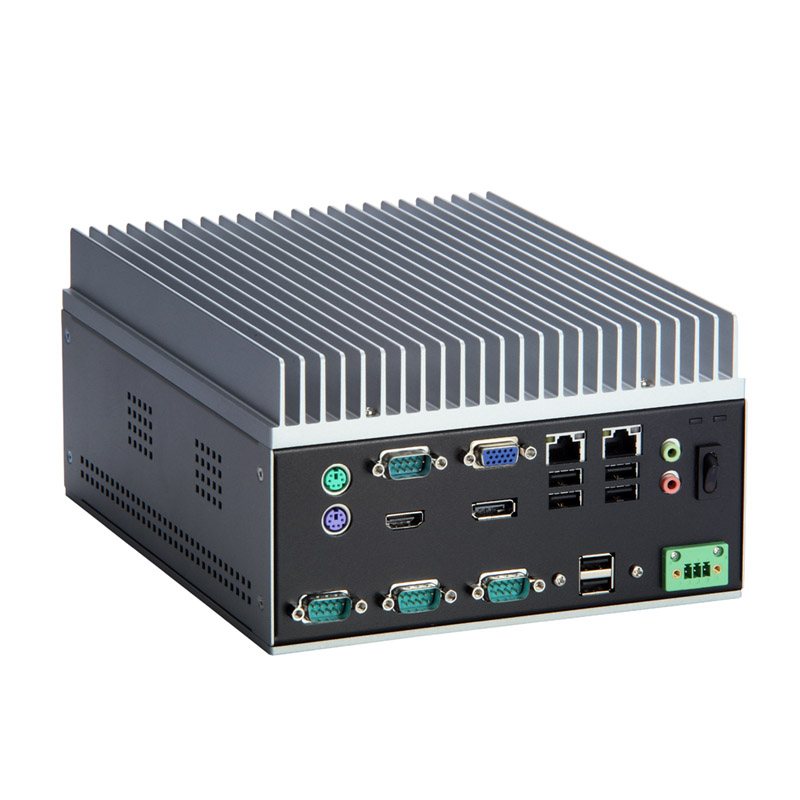

eBOX640-860-FL
|
2nd Generation Core™ i7/ i5/ i3
|
QM67
|
2 x LAN, 6 x USB, 4 x COM, 1 x VGA, 1 x HDMI, 1 x DisplayPort
|
1 x PCI Express Mini Card
|
2 x 2.5-inch SATA HDD, CFast
|
|

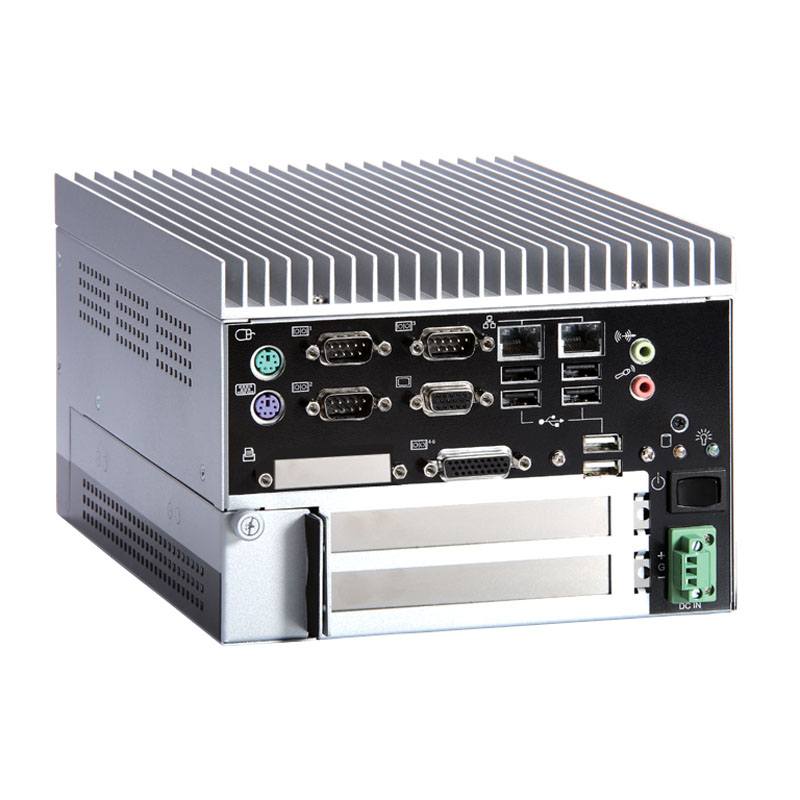

eBOX639-836-FL
|
Atom™ N270
|
945GSE + ICH7M
|
2 x LAN, 6 x USB, 6 x COM, 1 x VGA
|
2 x PCI
|
2.5-inch SATA HDD, CompactFlash
|
|

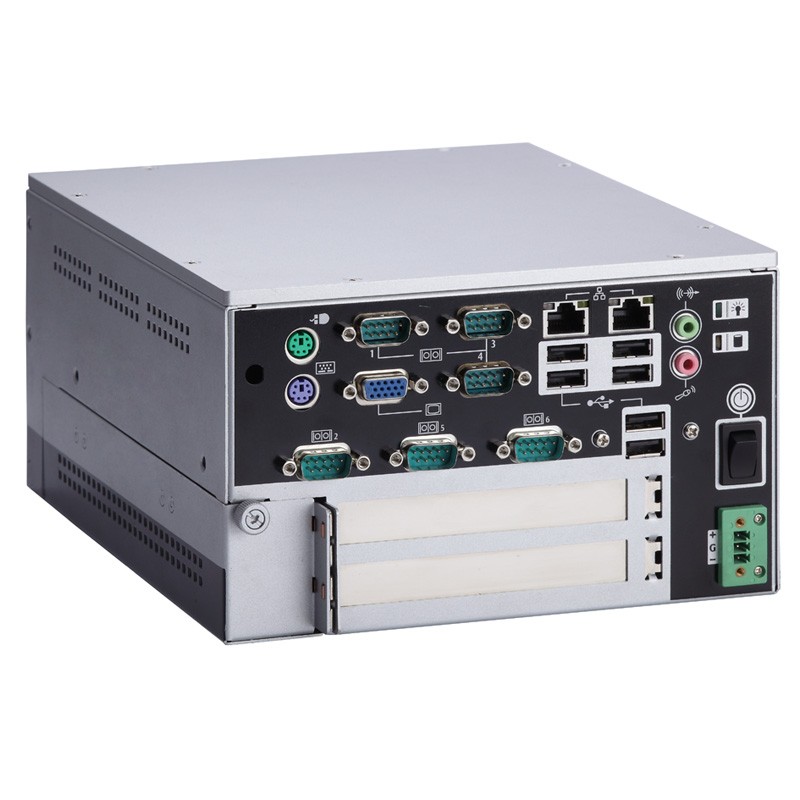

eBOX639-825-FL
|
Atom™ D525
|
NM10
|
2 x LAN, 6 x USB, 6 x COM, 1 x VGA
|
2 x PCI, 1 x PCI Express Mini Card
|
2.5-inch SATA HDD, CFast
|
|

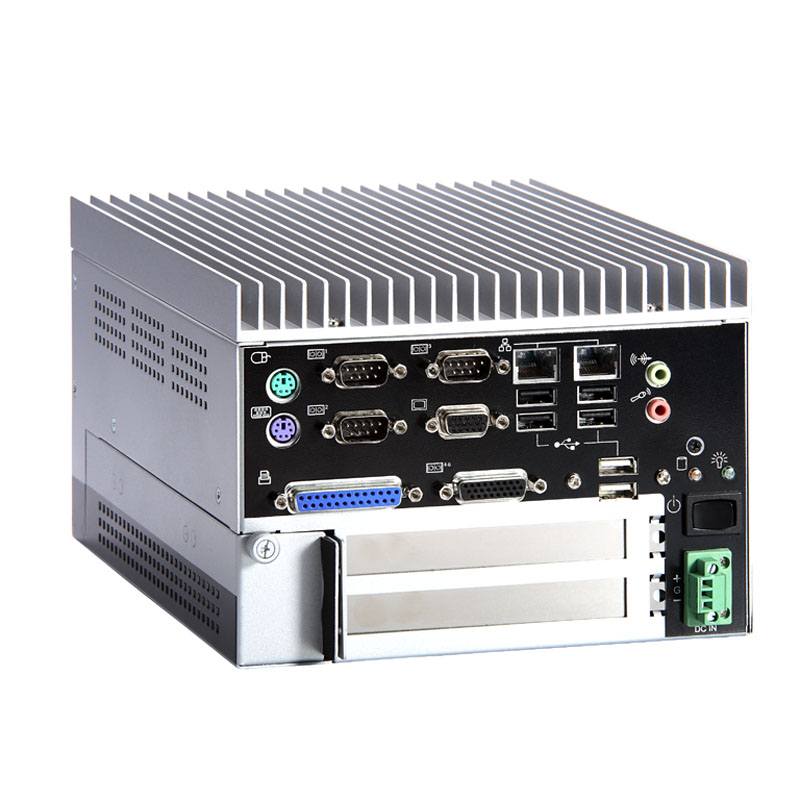

eBOX639-822-FL
|
Celeron® M/ Pentium® M
|
910GMLE + ICH6M
|
2 x LAN, 6 x USB, 6 x COM, 1 x VGA
|
2 x PCI
|
2.5-inch SATA HDD
|
|
eBOX630-850-FL
|
Core™2 Duo
|
GM45 + ICH9M
|
2 x LAN, 4 x USB, 2 x COM, 1 x VGA, 1 x DVI
|
N/A
|
2.5-inch SATA HDD, CompactFlash
|
|
eBOX630-830-FL
|
Core™2 Duo
|
945GME + ICH7M
|
2 x LAN, 4 x USB, 4 x COM, 1 x DVI-I, 1 x DVI-D
|
N/A
|
2.5-inch SATA HDD, CompactFlash
|
|

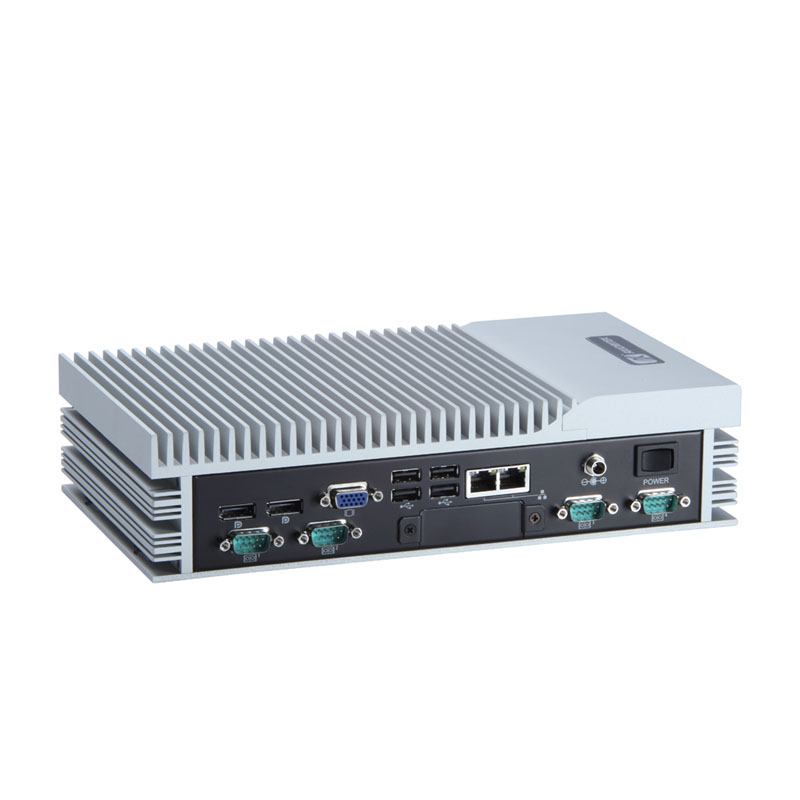

eBOX630-100-FL
|
AMD G-Series T56N
|
AMD FCH Hudson-M1
|
2 x LAN, 6 x USB, 4 x COM, 1 x VGA, 2 x DisplayPort
|
1 x PCI Express Min Card, 1 x SIM card
|
2.5-inch SATA HDD, CFast
|
|

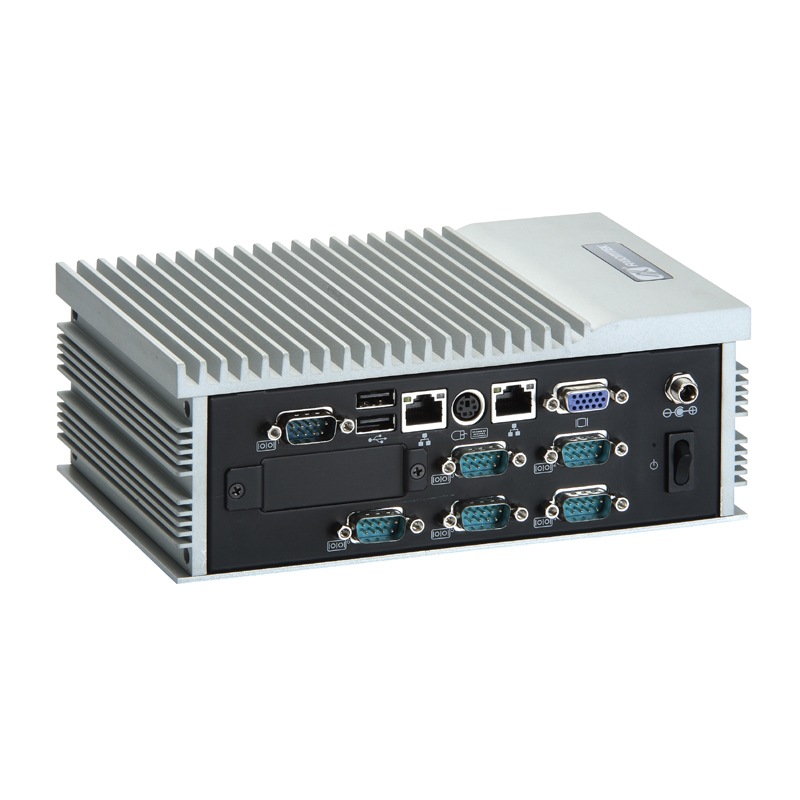

eBOX622-831-FL
|
Atom™ N270
|
945GSE + ICH7M
|
2 x LAN, 4 x USB, 6 x COM, 1 x VGA
|
N/A
|
2.5-inch SATA HDD, CompactFlash
|
|
eBOX621-831-FL
|
Atom™ N270
|
945GSE + ICH7M
|
2 x LAN, 4 x USB, 3 x COM, 1 x VGA
|
N/A
|
2.5-inch SATA HDD, CompactFlash
|
|

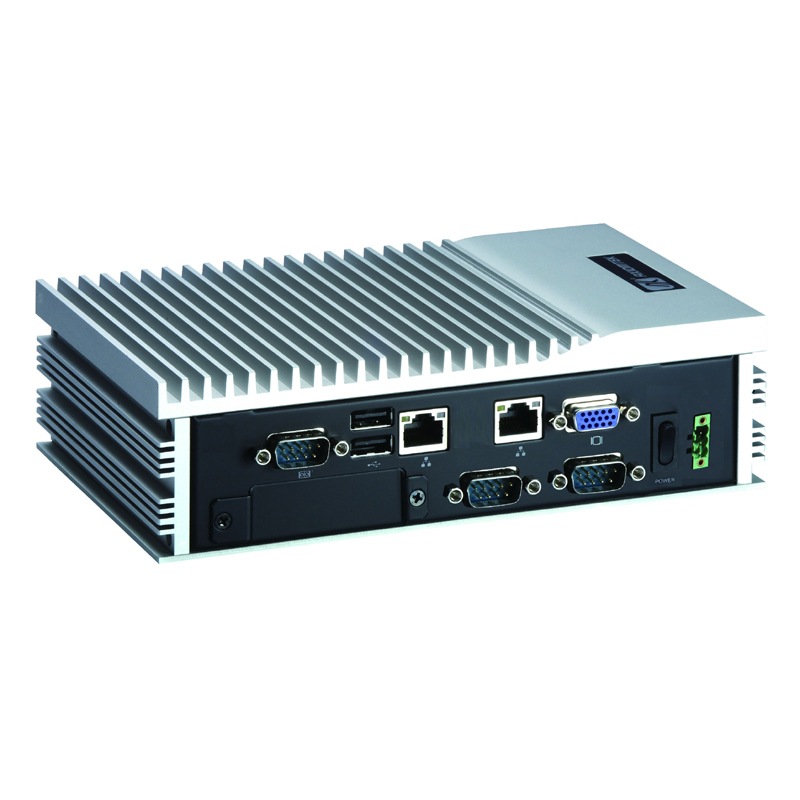

eBOX621-801-FL
|
Atom™ D525
|
ICH8M
|
2 x LAN, 4 x USB, 3 x COM, 1 x VGA
|
1 x PCI Express Mini Card, 1 x USB WiFi mounting space
|
2.5-inch SATA HDD, CompactFlash
|
|
eBOX620-831-FL
|
Atom™ N270
|
945GSE + ICH7M
|
2 x LAN, 4 x USB, 3 x COM, 1 x CAN bus, 1 x VGA
|
N/A
|
2.5-inch SATA HDD, CompactFlash
|
|

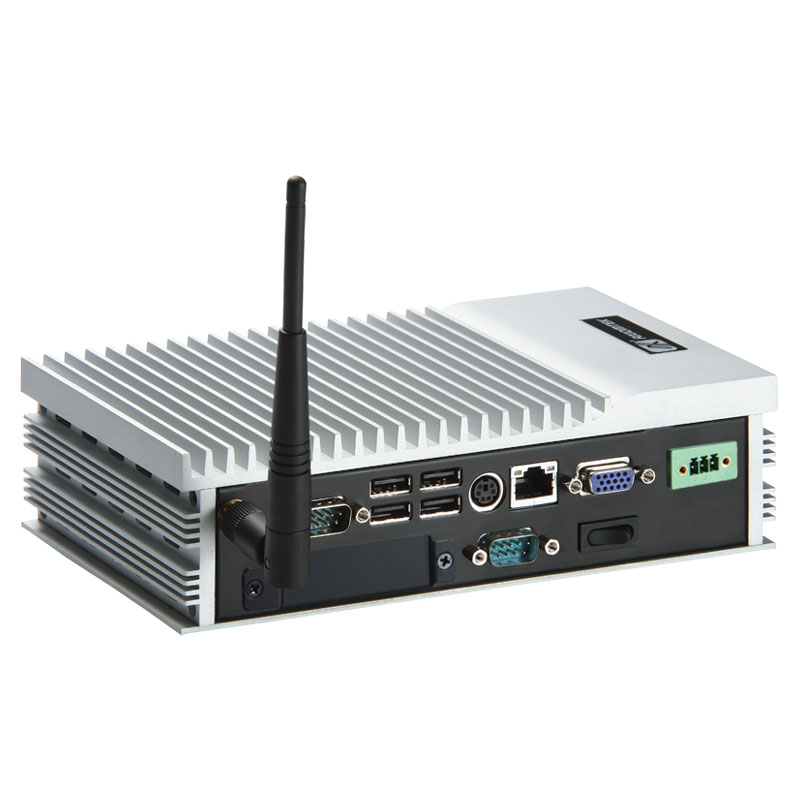

eBOX620-823-FL
|
Atom™ Z510PT/ Z520PT
|
US15WPT
|
1 x LAN, 4 x USB, 2 x COM, 1 x VGA
|
1 x PCI Express Mini Card
|
2.5-inch SATA HDD, CompactFlash
|
|

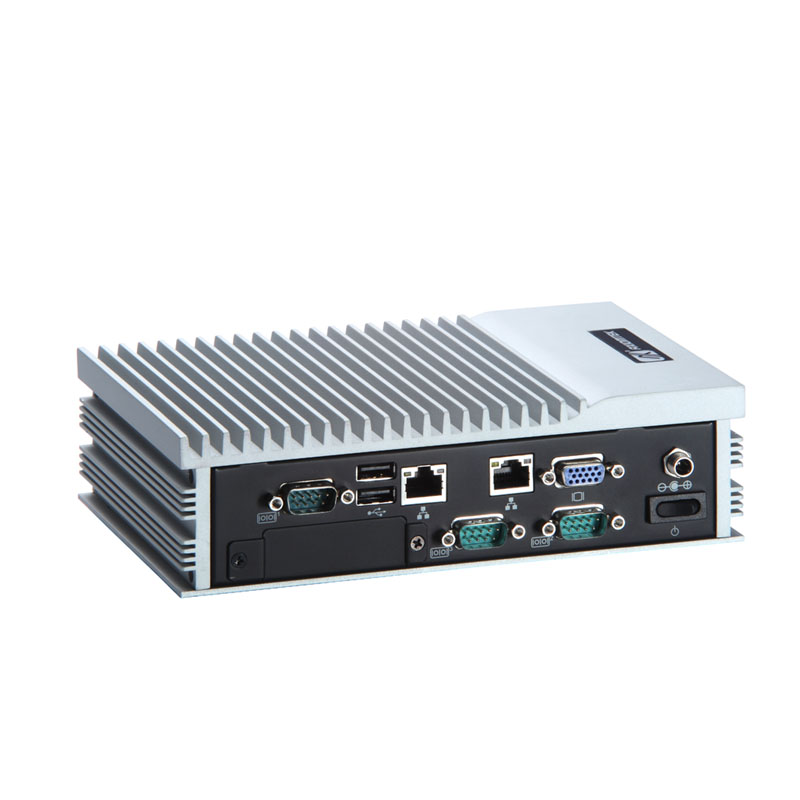

eBOX620-801-FL
|
Atom™ N455/D525
|
ICH8M
|
2 x LAN, 4 x USB, 3 x COM, 1 x VGA, 1 x DVI-D
|
1 x PCI Express Mini Card, 1 x USB WiFi Mounting Space
|
2.5-inch SATA HDD, CompactFlash
|
|

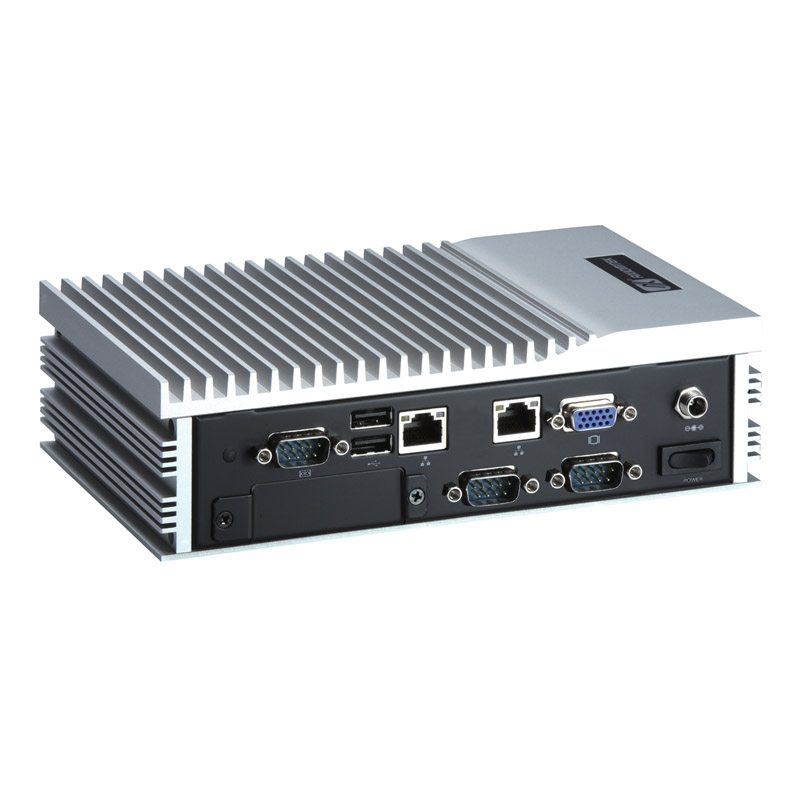

eBOX620-800-FL
|
Atom™ N450/ D510
|
ICH8M
|
2 x LAN, 4 x USB, 3 x COM, 1 x VGA, 1 x DVI-D
|
1 x PCI Express Mini Card
|
2.5-inch SATA HDD, CompactFlash
|
|

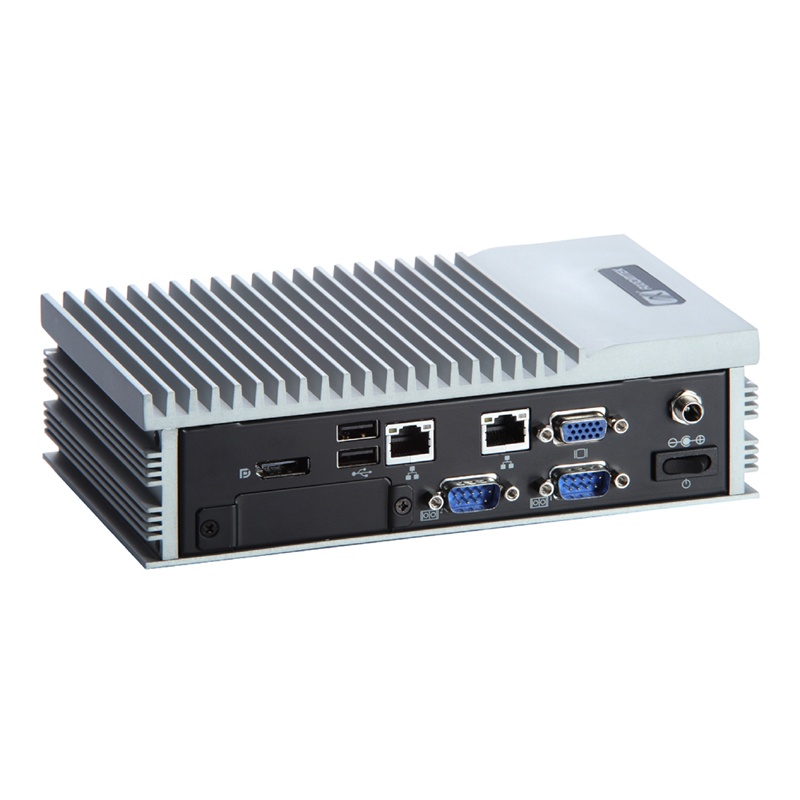

eBOX620-110-FL
|
AMD G-Series T40R/ T56N
|
A50M FCH
|
2 x LAN, 6 x USB, 4 x COM, 1 x VGA, 1 x DisplayPort
|
1 x PCI Express Mini Card
|
2.5-inch SATA HDD, CompactFlash
|
|

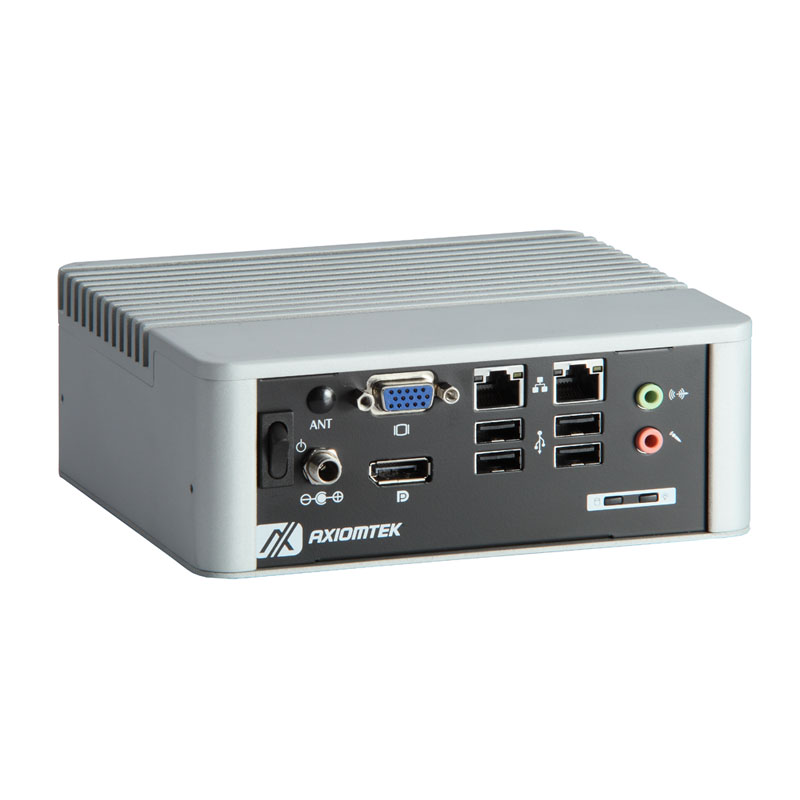

eBOX550-100-FL
|
AMD G-Series T40E
|
AMD A50M FCH
|
2 x LAN, 4 x USB, 1 x VGA, 1 x DisplayPort
|
1 x PCI Express Mini Card
|
2.5-inch SATA HDD, CFast
|
|

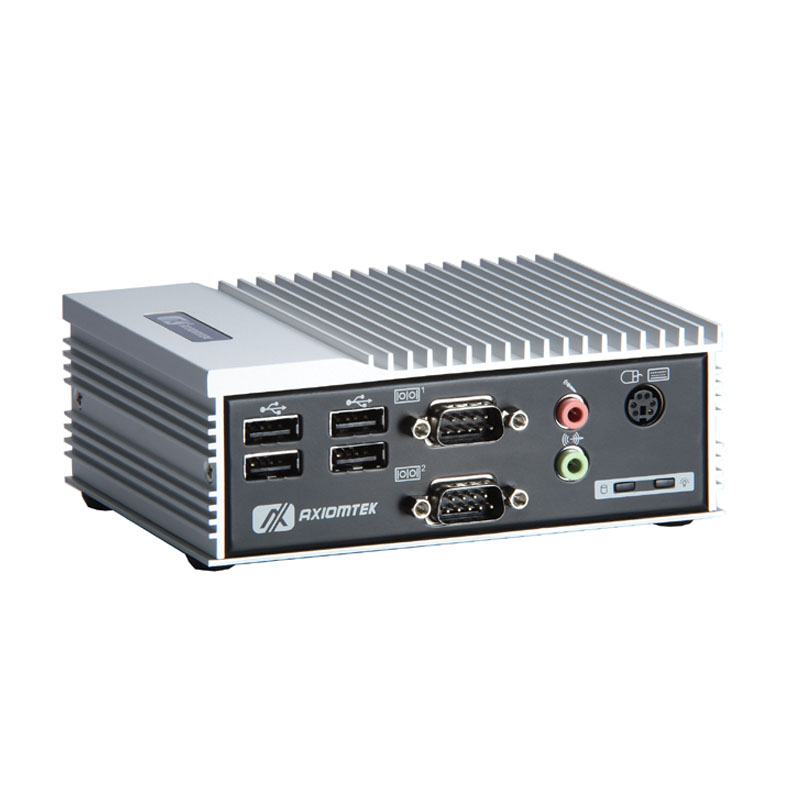

eBOX532-100-FL
|
AMD G-Series T40R
|
A50M FCH
|
1 x LAN, 4 x USB, 2 x COM, 1 x VGA or DisplayPort
|
N/A
|
2.5-inch SATA HDD, CompactFlash
|
|

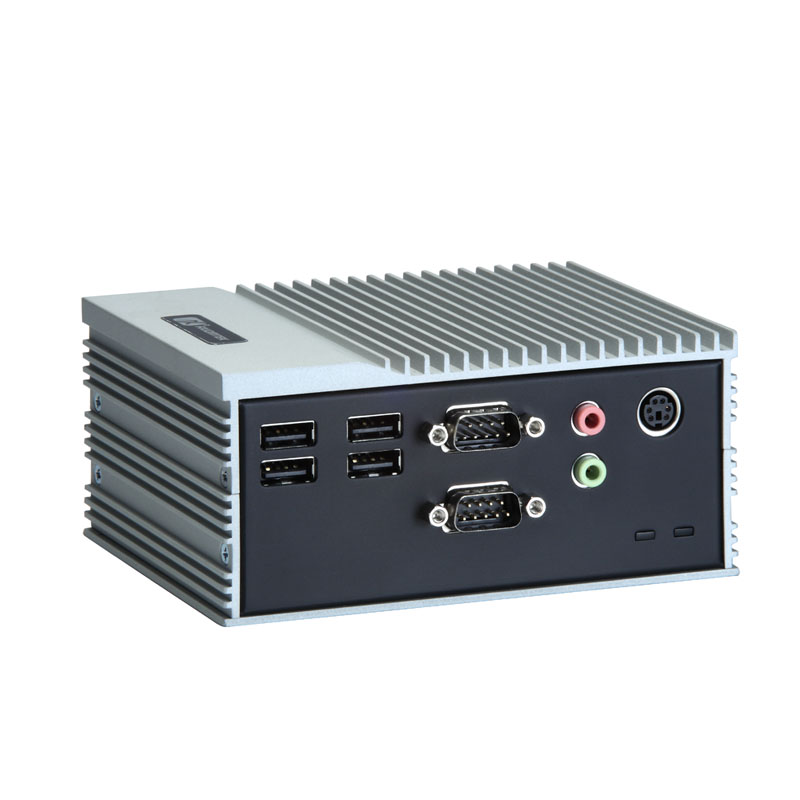

eBOX531-820-FL
|
Atom™ Z510/ Z530
|
US15W
|
1 x LAN, 4 x USB, 2 x COM, 1 x VGA
|
N/A
|
2.5-inch SATA HDD, CompactFlash
|
|
eBOX530-820-FL
|
Atom™ Z510/ Z530
|
US15W
|
1 x LAN, 4 x USB, 2 x COM, 1 x VGA
|
N/A
|
2.5-inch SATA HDD, CompactFlash
|
|
eBOX511-820-FL
|
Atom™ Z510/ Z530
|
US15W
|
1 x LAN, 4 x USB, 2 x COM, 1 x VGA
|
N/A
|
CompactFlash
|
|
eBOX510-820-FL
|
Atom™ Z510/ Z530
|
US15W
|
1 x LAN, 4 x USB, 1 x COM, 1 x VGA
|
N/A
|
CompactFlash
|
