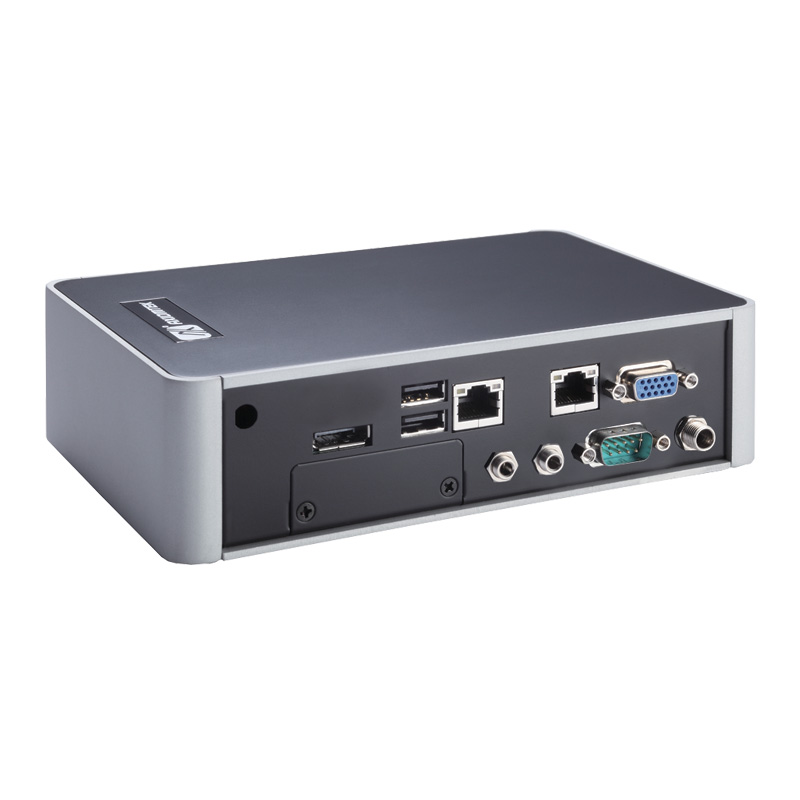

DSB-310
Fanless Digital Signage Player
- Status: Available
- Related News
- Download
- Advanced Search
- Data Sheet (PDF)
- Additional Information
- Features
- Ordering Information
- Download
- Related Products
-
- Fanless operation
- Supports AMD G-Series APU T40E 1.0 GHz dual core onboard
- DDR3-1066/1333 SO-DIMM max. up to 4 GB
- Low power consumption
- Displayport & VGA
- 1 2.5" SATA drive bay & 1 CF
- Optional wireless LAN module
- Supports wall mount and VESA mount
Introduction
The DSB-310 fanless digital signage player is small, light, but also powerful. The DSB-310 supports the latest low-power AMD G-series T40E 1.0GHz dual core APU with AMD A50M FCH. The DDR3-1066/1333 system memory can be expanded up to 4GB. With the integrated Radeon™ HD 6320 graphics with DirectX 11, the unit delivers superior 3D performance and fully supports 1080P multimedia content on dual independent displays. It is also capable of hardware decoding video formats. The DSB-310 provides a wide selection of multimedia content and upgrades user experience. This new signage player is an ideal solution for graphics intensive digital signage applications within retail, commerce, education, healthcare and entertainment.
-
-
DSB-310 (P/N- E22L310100)
Fanless digital signage player with AMD G-Series T40E APU onboard -
Wireless Lan kit
Wi-Fi module and antenna -
HDMI cable
Cable for DisplayPort to HDMI -
DVI cable
Cable for DisplayPort to DVI -
VESA mount kit
-
Wall mount kit
-
DSB-310 (P/N- E22L310100)
-
BIOS
The object is under update temporarily, please download it later. Drivers
Date Description Version File Size 2012/11/19 AHCI FDD A1.0 290.2KB 2012/11/19 VGA driver A1.0 686,003.0KB 2012/11/19 Chipset driver A1.0 119,730.8KB 2012/11/19 LAN driver A1.0 16,577.3KB 2012/11/19 Audio driver A1.0 134,209.3KB Manual
Date Description Version File Size 2012/11/19 Manual A1.0 2,027.2KB Mechanical
The object is under update temporarily, please download it later. CE Conformity Declaration
Date Description Version File Size 2012/9/12 DSB-310-110 CE-Conformity Declaration N/A 23.0KB Technical Announcement
The object is under update temporarily, please download it later. -
-
-
