• Fanless and cableless design
• Supports Intel® Atom™ processor Z510 PT 1.1 GHz or Z520 PT 1.33 GHz
• Wide temperature operation of -40°C ~ +70°C
• 4 isolated COM ports
• 2 isolated 10/100/1000Mbps Ethernet
• 2 watchdog timer
• RTC Battery function
• LED indicators
• 1 wireless (3G/GPRS or Wifi)
• SNMP V1/V2c
• Supports 1 x 2.5" SATA SSD (or HDD)
• Supports one CompactFlash™, one SD card (optional)
• 2 power paths with terminal block and 12-48VDC
• Supports AXView monitoring software package

Introduction

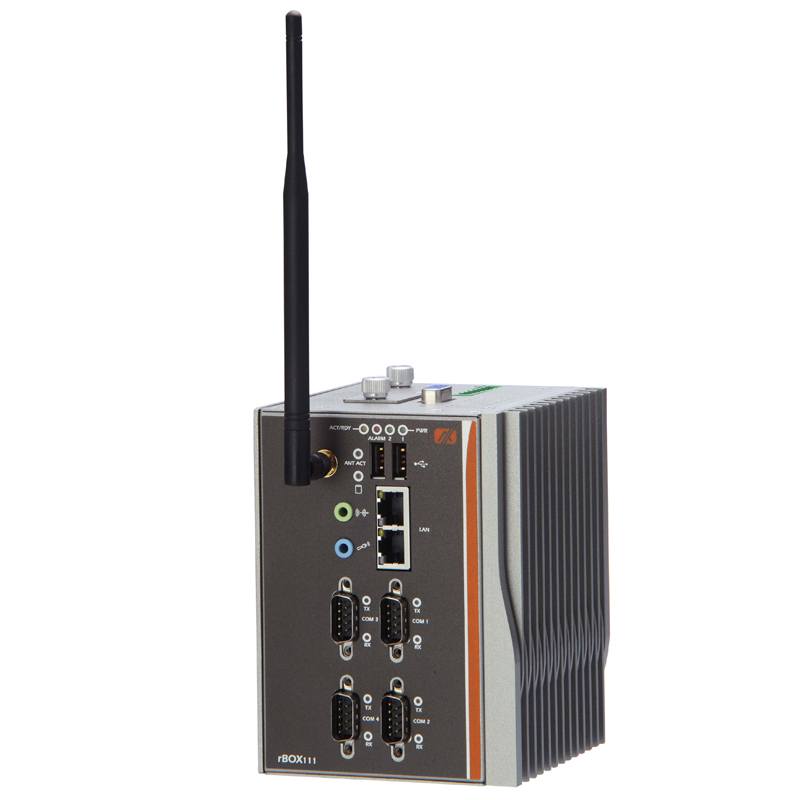

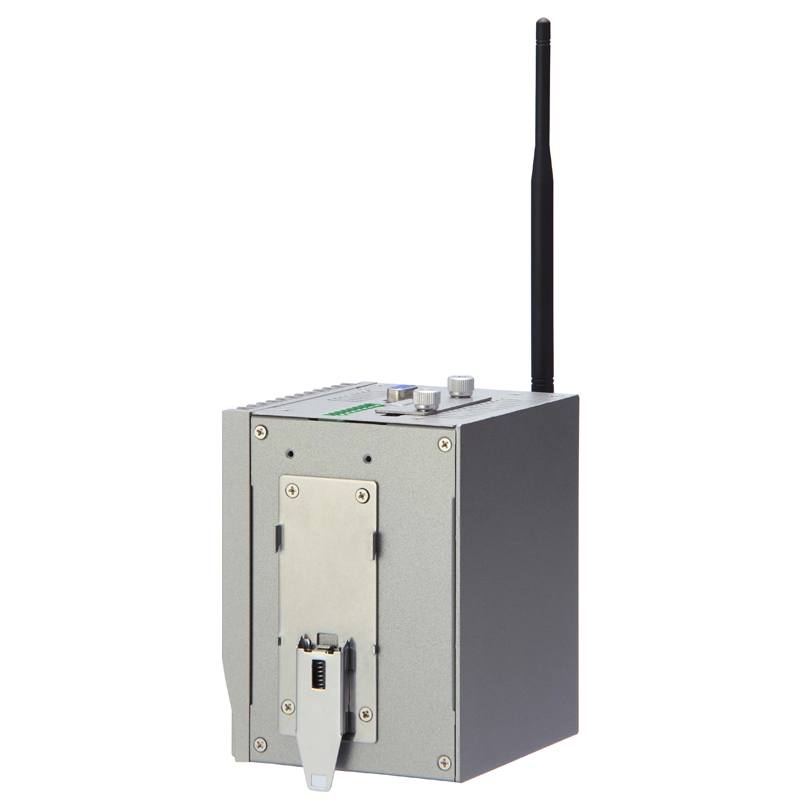

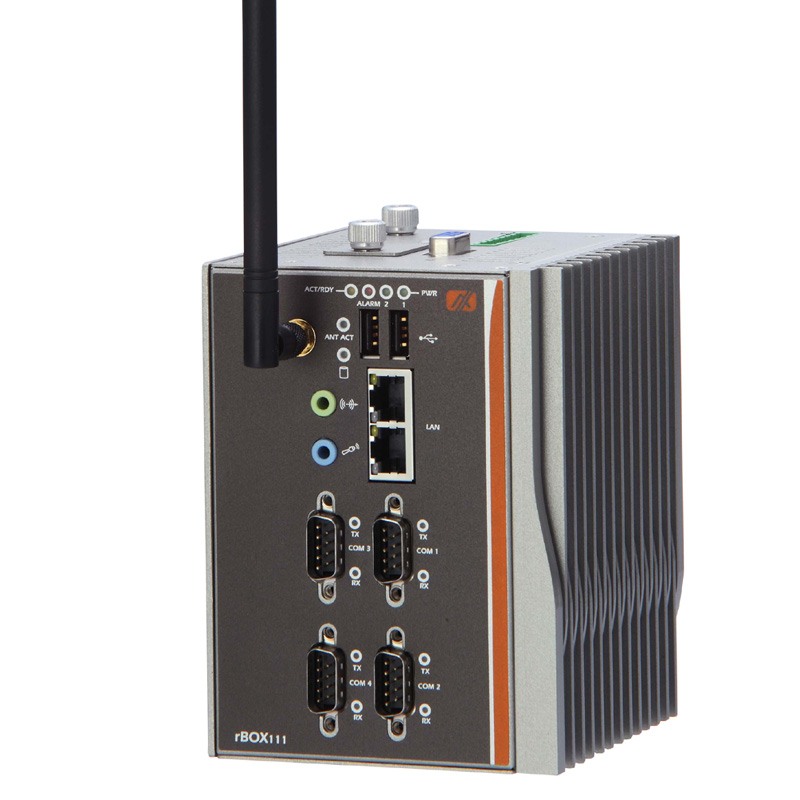

Set out to meet the critical demands of almost any rugged environment, the rBOX111-4COM is specifically designed to be operating in extremes of temperature ranging from -40°C ~ +70°C and features 4 isolated COM & 2 isolated Ethernet ports, wireless (3G/GPRS or WiFi) connection, fanless & cableless design, RTC battery function, 2 watchdog timers and many more. Its significant anti-vibration design can endure up to 5g (with CF & SSD) and anti-shock design can endure up to 50g (half-sine shock pulse; storage/ transport).

• rBOX111-4COM-FL1.1G
  Robust Din-rail fanless embedded system with Intel® AtomTM processor Z510PT 1.1 GHz and 4 isolated COM ports (-40°C ~ +70°C)
• rBOX111-4COM-FL1.33G
  Robust Din-rail fanless embedded system with Intel® AtomTM processor Z520PT 1.33 GHz and 4 isolated COM ports (-40°C ~ +70°C)
• DDR2 SODIMM
  1 GB ~ 2 GB (with W.T. memory)
• DDR2 SODIMM
  1 GB ~ 2 GB (with 0°C ~ +85°C memory; operating temperature
• CompactFlash™
  2 GB or above (with W.T. CF)
• 2.5" SATA SSD or HDD

• Wall mount kit

• Wireless (3G/GPRS or Wifi) module for rBOX series
