• Socket M for Intel Core™2 Duo or Celeron M processor up to 1.5 GHz
• Intel® 945GME + ICH7M/-DH chipset
• High performance with full feature I/O
• Supports PCI interface or optical drive
• Supports 6 USB 2.0 ports and 4 COM ports
• Supports 2 10/100/1000Mbps Ethernet ports
• Supports 2 IEEE 1394a ports
• 1 2.5 SATA HDD drive bay
• 120W AC or DC power supply

Introduction

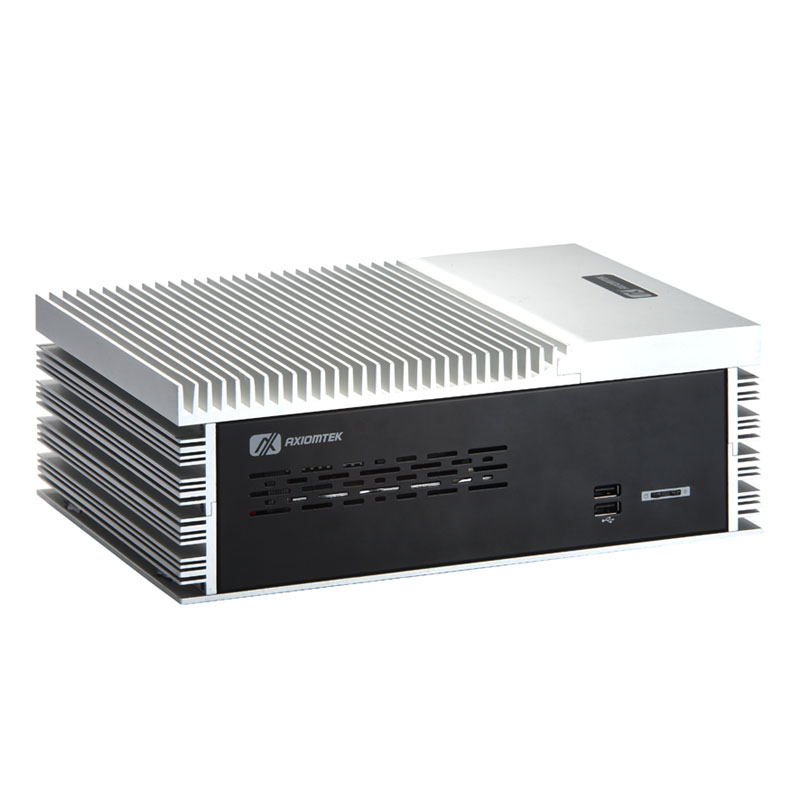

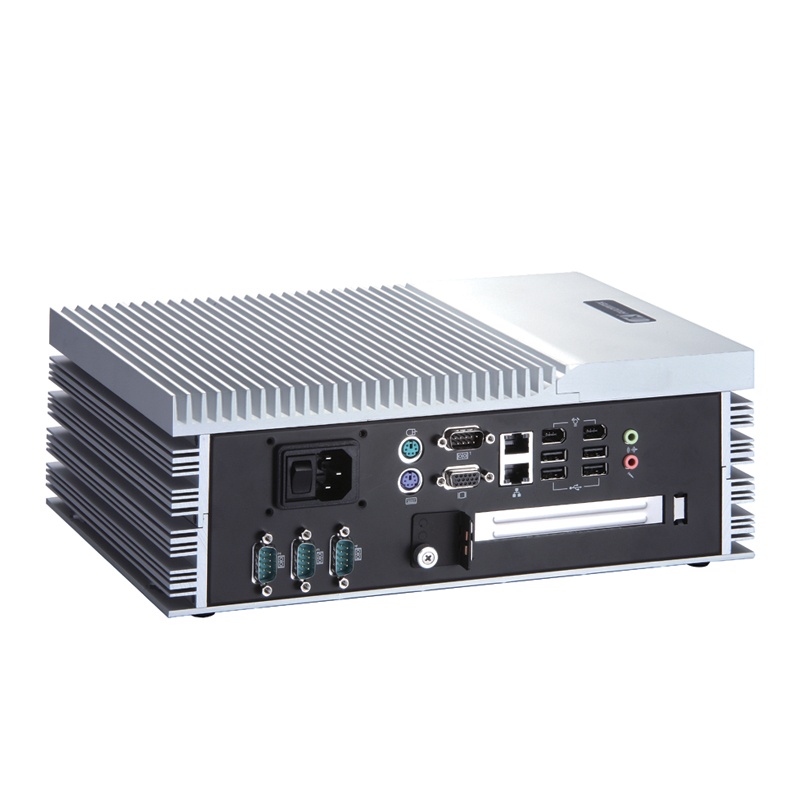

The eBOX830-831-FL supports superior Intel® Core™2 Duo processor. This rugged embedded system delivers system integrators and users a lot of advantages such as fanless operation, high computing power, rich expansion, and cost-effective oppositely. Considering system expansion and easy-to-upgrade, it reserved one PCI slot (or optical drive) and supported both socket type Intel® Celeron® M processor and onboard type Intel® Core™2 Duo processor. Moreover, multiple I/O features include six high-speed USB 2.0 ports, four COM ports, two Firewire (IEEE 1394a), dual Gigabit Ethernet, and audio. The eBOX830-831-FL is entirely a full-function fanless computer especially suitable for industrial automation, excellent AOI/DVR, and media display devices.

• eBOX830-831-FL-AC
  Fanless embedded system supports socket M for Intel® Celeron® M processor, 4 COM, 6 USB, PCI slot and AC power
• eBOX830-831-FL-AC-DVD
  Fanless embedded system supports socket M for Intel® Celeron® M processor, 4 COM, 6 USB, DVD-ROM and AC power
• eBOX830-831-FL-1.5G-AC
  Fanless embedded system with LV Intel® Core™2 Duo 1.5 GHz (L7400) processor, 4 COM, 6 USB, PCI slot and AC power
• eBOX830-831-FL-1.5G-ACDVD
  Fanless embedded system with LV Intel® Core™2 Duo 1.5 GHz (L7400) processor, 4 COM, 6 USB, DVD-ROM and AC power
• eBOX830-831-FL-DC
  Fanless embedded system supports socket M for Intel® Celeron® M processor, 4 COM, 6 USB, PCI slot and DC power
• eBOX830-831-FL-DC-DVD
  Fanless embedded system supports socket M for Intel® Celeron® M processor, 4 COM, 6 USB, DVD-ROM and DC power
• 2.5 SATA HDD
  40 GB or above
• 2.5 SATA SSD
  4 GB or above
• DDR2 DIMM
  256 MB ~ 2 GB
• Power cord
