• Socket M Intel® Core™2 Duo/ Core™ Duo/ Celeron® M processor up to 2.33 GHz
• Intel® 945GME + ICH7M/-DH chipset
• Supports 1 PCIe x16 slot
• High performance with full feature I/O
• Supports 6 USB 2.0 ports and 4 COM ports
• Supports dual 10/100/1000Mbps Ethernet ports
• Supports dual IEEE 1394a ports
• One 2.5 SATA HDD drive bay

Introduction

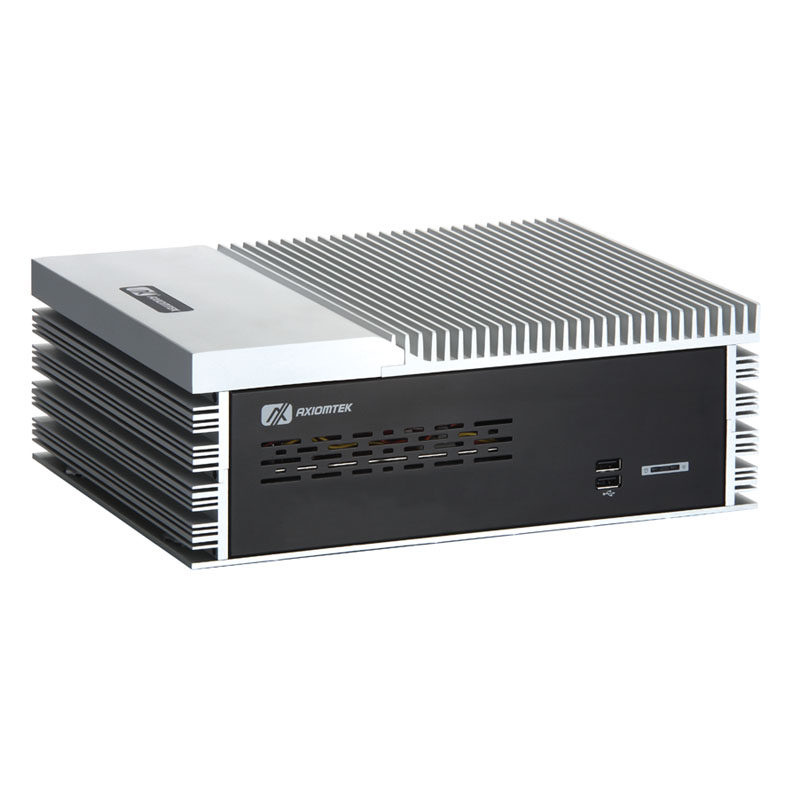

The eBOX832-831 features the advanced Intel® 945GME Express chipset and supports socket M compliant processors with 533/667MHz FSB including Intel® Core™2 Duo, Core Duo, and Celeron® M processors. It supports up to 4 GB of DDR2 400/533/677 MHz system memory in dual-channel mode. The Intel® 945GME Express chipset featuring the Intel® Graphics Media Accelerator 950 offers enhanced graphics and increased I/O bandwidth. For today�s and future applications, the eBOX832-831 features a PCI Express x16 slot for high end graphic cards. The eBOX832-831 is an all-in-one embedded box PC featuring rich I/O connections including two Gigabit Ethernet ports, six USB 2.0 ports, four COM ports (3 x RS-232, 1 x RS-232/422/485), PS/2, two IEEE 1394a ports, Audio and VGA connector. Additionally, the rugged box computer supports various embedded operating systems including Windows® CE, Windows® XP Embedded (XPE) and Linux.

• eBOX832-831
  Embedded system supports socket M for Intel® Core™2 Duo/ Core™ Duo/ Celeron® M processor, 4 COM, 6 USB and PCIe slot, AC-in ATX 250W P/S
• 2.5 SATA HDD
  20 GB or above
• 2.5 SATA SDD
  4 GB or above
• DDR2 DIMM
  256 MB ~ 2 GB
• Power cord
