• Ultra low power Intel® Atom™ processor Z510/ Z530
• Intel® System Controller Hub US15W
• Compact size: 100 x 72mm
• 2 COM and 4 USB 2.0 supported
• CRT/LVDS LCD supported
• 1 SATA-300 port
• 1 10/100/1000Mbps Ethernet
• 1 SDIO port
• Minimum 8 Watt power requirenent

Introduction

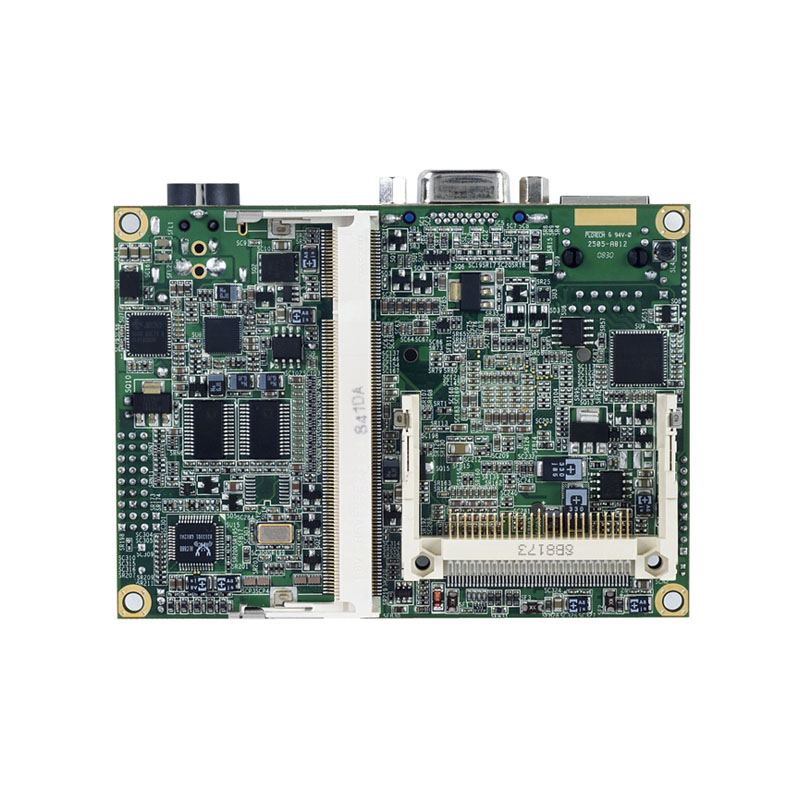

The PICO820 supports ultra low power Intel® Atom™ Z510 1.1GHz and Z530 1.6GHz processors at 400/533MHz FSB with the Intel® System Controller Hub (SCH) US15W, a low power chipset in one small 22x22 mm package. The integrated Intel® Graphics Media Accelerator 500 (Intel® GMA 500) offers advanced graphics and 3D performance. Moreover, the Intel® Atom™ processor Z500 series supports SSE3 that improves performance on multimedia and gaming applications, as well as, Hyper-Threading technology, Intel® Virtualization Technology and Low TDP.

• PICO820VGA-Z510 (P/N- E38H820100)
  Pico-ITX SBC with Intel® Atom™ processor Z510 1.1 GHz, VGA/LVDS, 10/100/1000Mbps Ethernet, SATA-300 and HD audio
• PICO820VGA-Z530 (P/N- E38H820101)
  Pico-ITX SBC with Intel® Atom™ processor Z530 1.6 GHz, VGA/LVDS, 10/100/1000Mbps Ethernet, SATA-300 and HD audio
• PICO820VGA-Z510 90D PWR Connector (P/N- E38H820109)
  Pico-ITX SBC with Intel® Atom™ processor Z510 1.1 GHz, VGA/LVDS, 10/100/1000Mbps Ethernet, SATA-300, 90D power connector and HD audio
• PICO820VGA-Z530 90D PWR Connector (P/N- E38H820110)
  Pico-ITX SBC with Intel® Atom™ processor Z530 1.6 GHz, VGA/LVDS, 10/100/1000Mbps Ethernet, SATA-300, 90D power connector and HD audio
• 5938H820010E
  COM x 2 + audio cable
• 5938H820000E
  USB x 4 + Mini DIN cable
• 5948H823000E
  DC power cable (for internal power connector)
