• Intel Atom™ processor Z510 (1.1 GHz) or Z530 (1.6 GHz) onboard
• Intel® US15W core logic chipset
• Ultra slim and compact design
• Supports 4 USB 2.0 ports and 2 COM ports
• Supports 10/100/1000Mbps Ethernet
• 1 2.5 SATA HDD drive bay, 1 CompactFlash™

Introduction

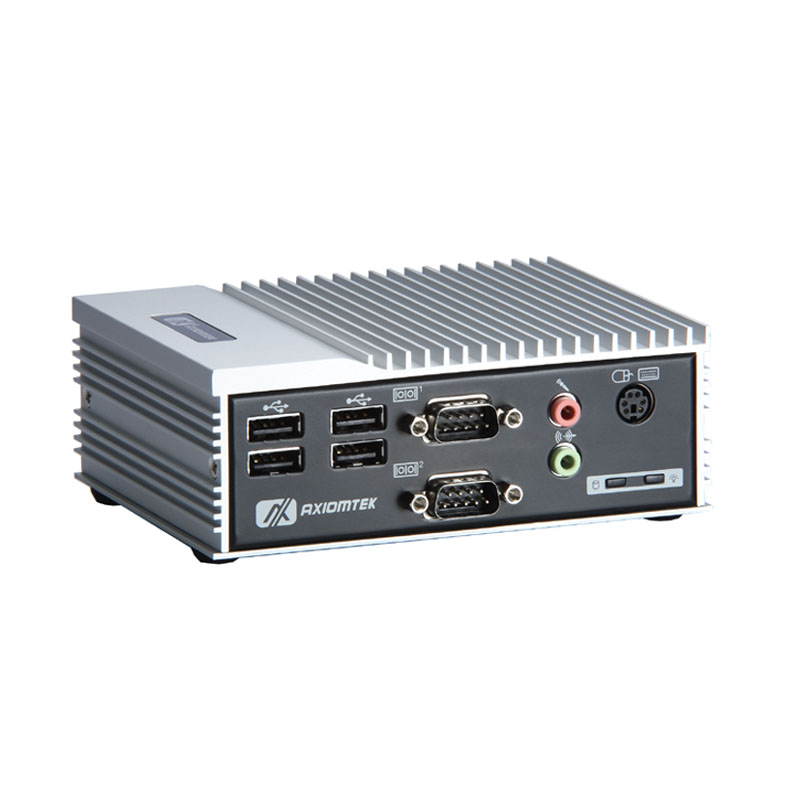

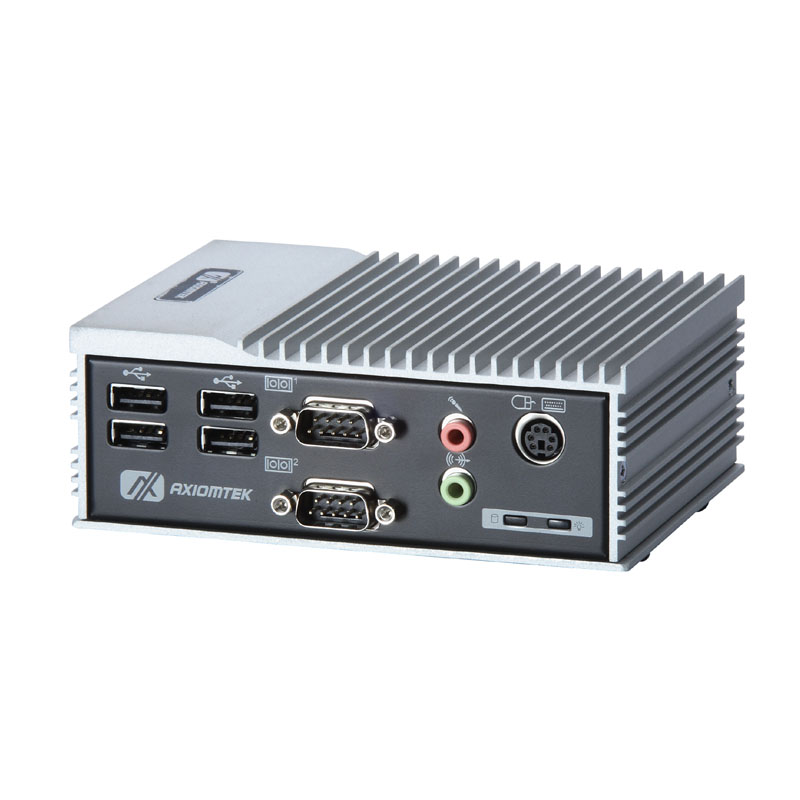

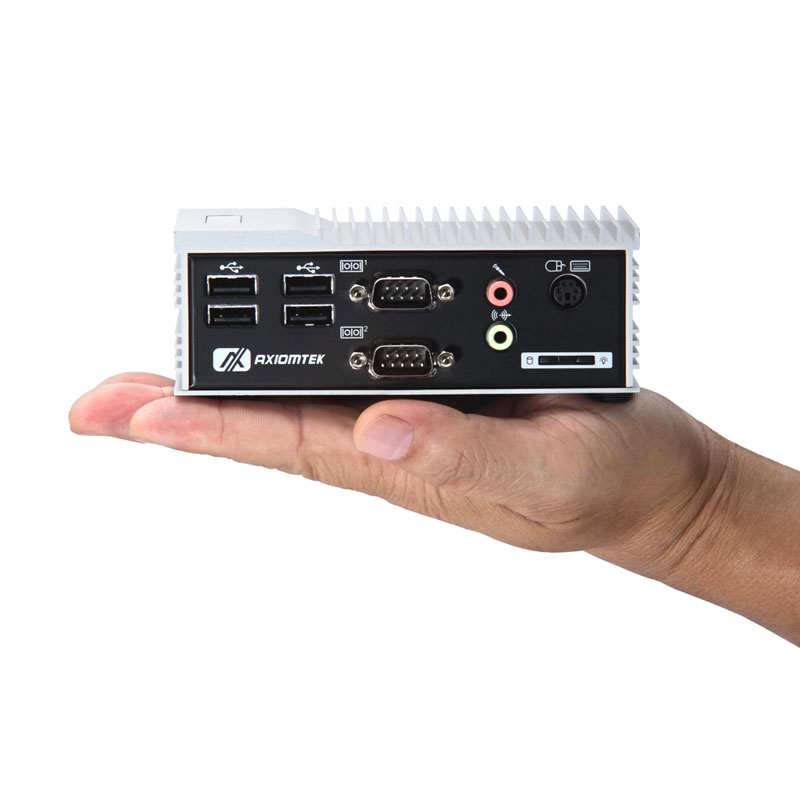

The eBOX530-820-FL is an incredibly small 130mm (W) x 95.4mm (D) x 47.1mm (H) embedded system based on an ultra low power Intel® Atom™ processor up to 1.6GHz with the Intel® System Controller Hub (SCH) US15W. The integrated Intel® Graphics Media Accelerator 500 offers advanced graphics and 3D performance. The eBOX530-820-FL is an ideal for many embedded market segments such as portable POS, Car PC, medical healthcare, entry-level gaming, and in-flight infotainment.

• eBOX530-820-FL1.1G
  Fanless embedded system with Intel® Atom™ processor Z510 1.1 GHz, 25W AC/DC adapter
• eBOX530-820-FL1.6G
  Fanless embedded system with Intel® Atom™ processor Z530 1.6 GHz, 25W AC/DC adapter
• 2.5 SATA HDD
  40 GB or above
• 2.5 SATA SSD
  4 GB or above
• DDR2 SODIMM
  512 MB ~ 2 GB
• CompactFlash™
  1GB or above
• Din rail kit

• VESA mount kit
