• Socket P for Intel® Core™2 Duo/ Celeron® M processor with FSB 667/800/1067 MHz
• High performance ATI M72 graphics chip onboard
• 4 COM ports for transaction terminal applications
• 8 USB 2.0 ports supported

Introduction

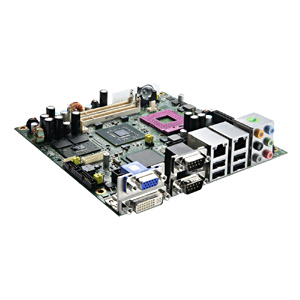

Axiomtek's SBC86850 high-end graphic Mini ITX motherboard is based on the Mobile Intel® GM45 Express chipset with the ATI Radeon™ HD2400 (ATI M72) graphic chip onboard. This space-saving Mini ITX motherboard is designed for graphics-intensive applications such as in high-end medical imaging, digital signage, kiosks/POI, thin clients, and gaming machines. The SBC86850 incorporates a socket P Intel® Core™2 Duo Mobile Penryn processor with a 667/800/1066MHz FSB, and supports two DDR2 SODIMM SDRAM socketswith up to 4GB system memory. With onboard ATI Radeon™ HD2400 graphic core, the SBC86850 offers excellent 3D/2D graphics and high-speed dual-view capability.

• SBC86850DGGA w/ ATI M72
  Socket P Mini ITX SBC with DVI-I/LVDS LCD, 2 10/100/1000Mbps Ethernet, HD audio, 4 COM ports and ATI M72 graphics controller
• SBC86850VGGA w/o ATI M72
  Socket P Mini ITX SBC with VGA/LVDS LCD, 2 10/100/1000Mbps Ethernet, HD audio, 4 COM ports
• E9C2D00016
  ATP Z-U130 USB DoM 1GB 10P (RC)
• E9C2D00026
  ATP Z-U130 USB DOM 2GB 10P (RC)
