• Intel Atom™ processor Z510 (1.1 GHz) or Z530 (1.6 GHz) nboard
• Intel® US15W core logic chipset
• Ultra slim and power-efficient design
• Supports 4 USB 2.0 ports and 1 COM port
• Supports 10/100/1000Mbps Ethernet
• Supports CompactFlash™

Introduction

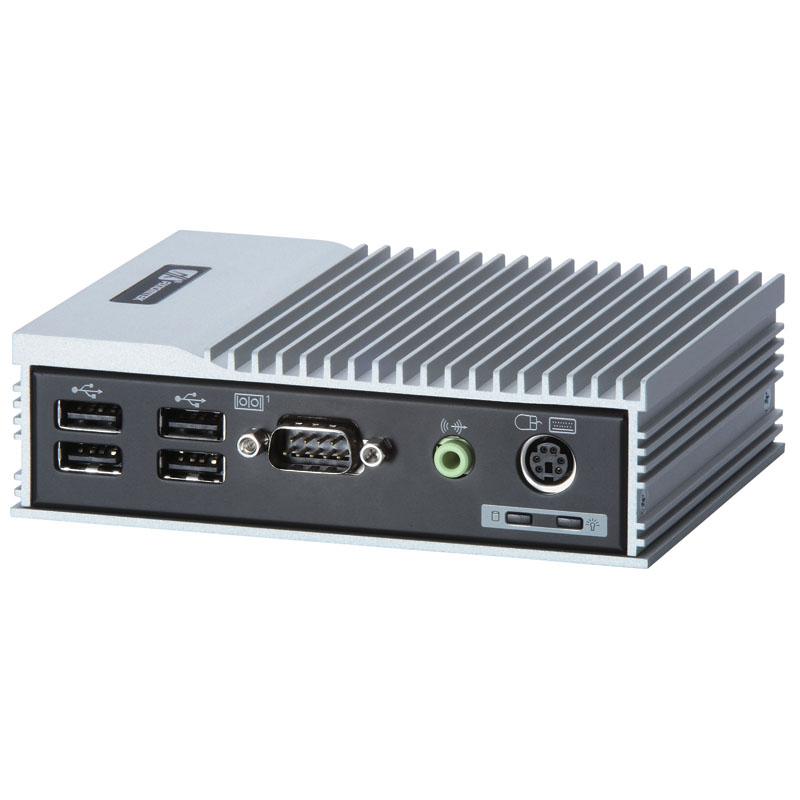

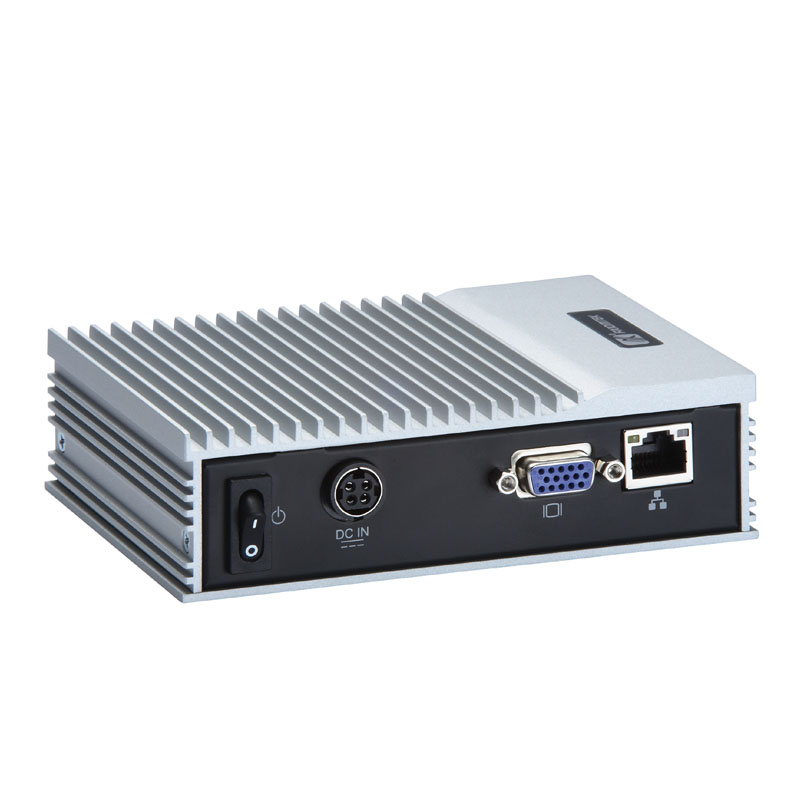

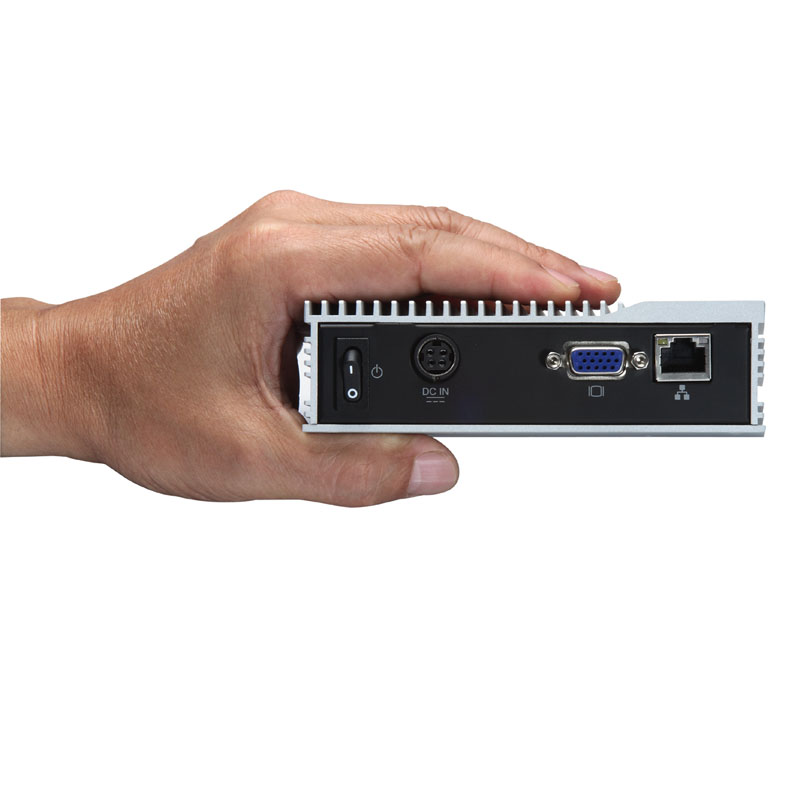

The eBOX510-820-FL, an extremely small fanless embedded computer with an overall height of only 37.5mm (95.4mm in depth and 132mm in width), is based on an ultra low-power Intel® Atom™ Z530 processor up to 1.6GHz or Z510 processor up to 1.1GHz with up to 2GB of dual-channel DDR2 system memory. Powered by the Intel® System Controller Hub US15W with integrated Intel® GMA 500, the eBOX510-820-FL offers advanced graphics and 3D performance. Its power consumption is less than 10W in common used, making the eBOX510-820-FL an optimal solution for power-sensitive embedded applications. This fanless box computer built with low-cost and power-effective in mind is a tiny application-ready system for DSA, car PC, medical healthcare, entry-level gaming, and in-flight infotainment.

• eBOX510-820-FL 1.1G
  Fanless embedded system with Intel Atom processorm Z510 1.1 GHz, 25W AC/DC adapter
• eBOX510-820-FL 1.6G
  Fanless embedded system with Intel Atom processor Z530 1.6 GHz, 25W AC/DC adapter
• DDR2 SODIMM
  512 MB ~ 2 GB
• CompactFlash
  1 GB or above
• Din rail kit

• VESA mount kit
