• Socket P Intel® Core™2 Duo processor up to 2.66 GHz
• Intel® GM45 + ICH9M chipset
• Fanless operation design with full feature I/O
• Onboard VGA and optional DVI for independent dual view support
• 204-pin DDR3 SO-DIMM max. up to 4 GB
• 1 2.5" SATA drive bay
• Watchdog Timer

Introduction

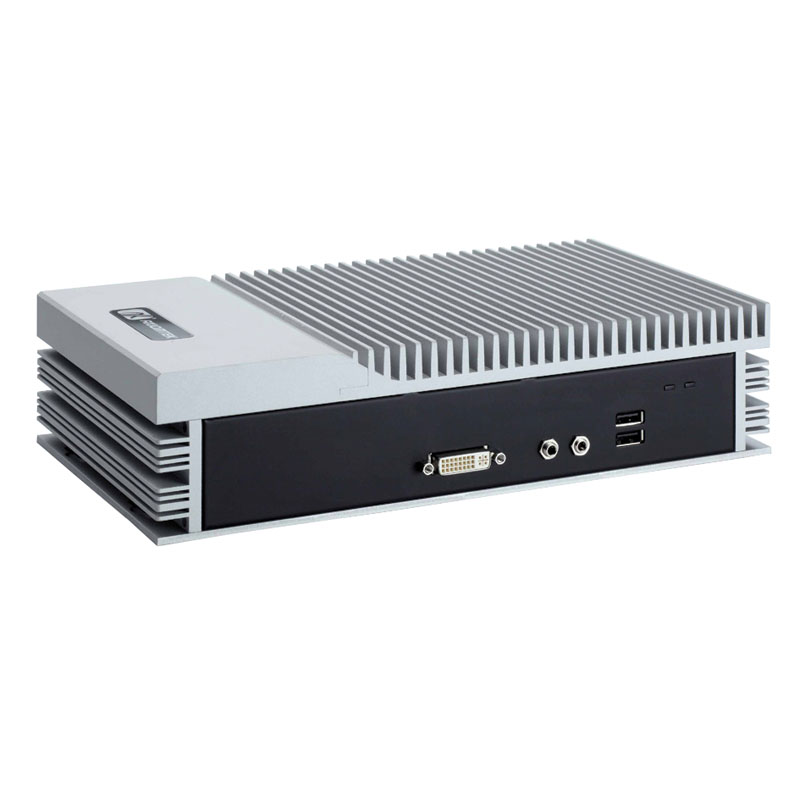

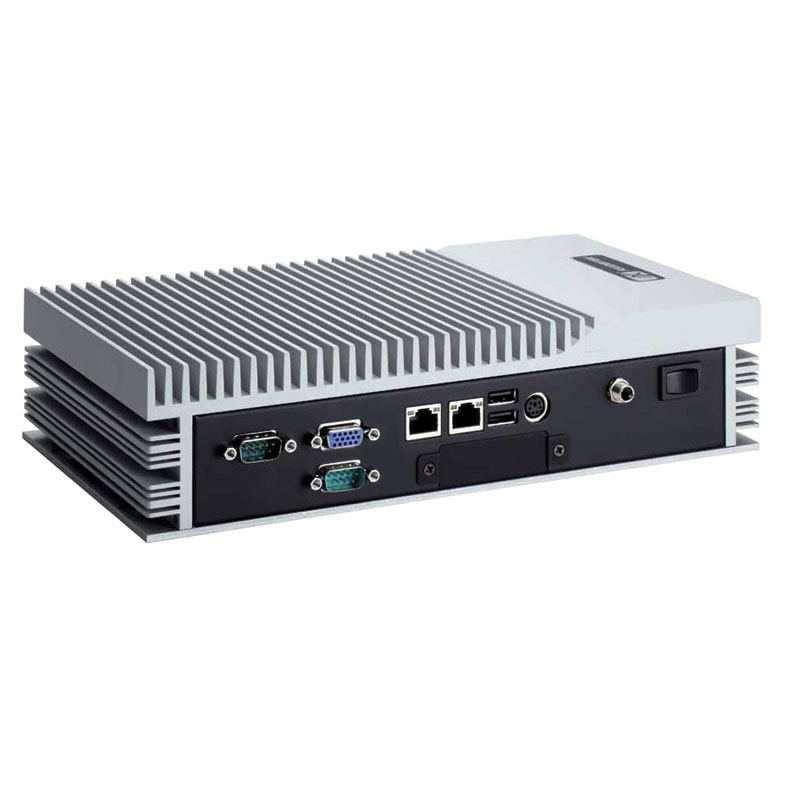

The eBOX630-850-FL utilizes the Intel® Core™2 Duo processor up to 2.66 GHz with Mobile Intel® GM45 Express chipset. One 204-pin DDR3 SODIMM socket supports up to 4GB system memory. The all-in-one embedded system features dual-independent display support using the VGA port and DVI-I port. Certification with CE marking, the eBOX630-850-FL is equipped with a unique thermal design to ensure reliable operation in critical environments at temperature from -10°C to +45°C. Its friendly fanless design increases reliability, extends MTTR, and ultimately reduces maintenance efforts. The eBOX630-850-FL is ideal for applications requiring a stable and rich-graphics platform, such as digital signage, gaming, industrial control automation, POS, Kiosk, and medical equipment applications.

• eBOX630-850-FL
  Fanless embedded system with socket P Intel® Core™2 Duo/ Core™ Duo/ Celeron® processor, 60W AC/DC adapter e
• eBOX630-850-FL-D
  Fanless embedded system with socket P ntel® Core™2 Duo/ Core™ Duo/ Celeron® processor, 60W AC/DC adapter and DVI-D
• 2.5" SATA HDD
  40 GB or above
• 2.5" SATA SSD
  4 GB or above
• DDR3 SODIMM
  256MB ~ 4 GB
• CompactFlash™
  256MB or above
• Power cord
