• Low power and high performance Intel® Atom™ processor D510 1.66 GHz with 1M L2 cache and Intel® ICH8M PCH chipset
• Supports 6 10/100/1000Mbps Ethernet ports (Intel® 82583V is default)
• Supports BIOS redirected to COM port
• Supports two 2.5" SATA HDD
• Suitable for VPN, network bandwidth controller, firewall applications
• Supports Intel Hyper-threading technology

Introduction

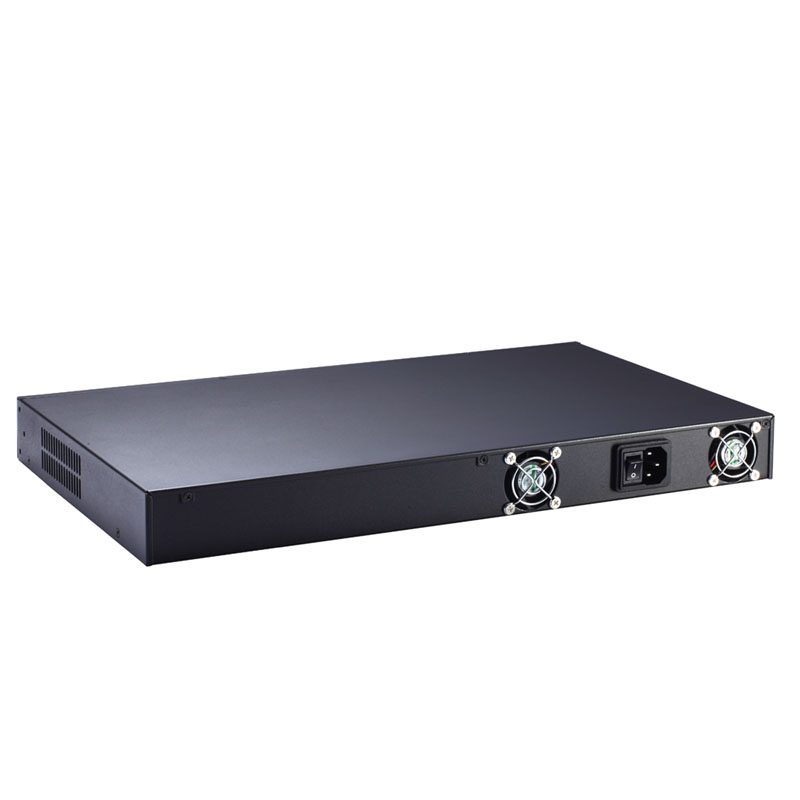

The NA-320R is a 1U rackmountable network security hardware platform for VPN, firewall, UTM and other network security applications. It supports low power Intel® Atom™ processor D410/ D510 1.66 GHz with Intel® ICH8M PCH chipset and a DDR2 667 memory up to 2 GB. For storing event log data, the NA-320R utilizes two 2.5" SATA2 HDD or one 3.5" SATA2 HDD (optional). To prevent problems from sudden shutdown, the platform supports one group of LAN bypass function through WDT and GPIO pin definitions. Meantime, the optional Mini card is for WiFi wireless card installation.

• NA-320R-R6GI-1.6G
  1U rackmount network appliance with Intel® Atom™ processor D510 1.66 GHz and 6 10/100/1000Mbps
• CK9A104
  Cable kit (P/N- 8816E320010E)
• 59416112100E
  Cable DB9 (M) - RJ-45, L=1.5M straight cable
