Intelligent Computing and Communication Solutions (rBOX + AXView)

Introduction

The rBOX DIN-rail fanless embedded systems are suitable for intelligent computing and communication solutions in critical environments, such as power plant automation, facility monitoring systems, and intelligent transportation systems. Built for rugged environments, the rBOX series supports extended temperature range of -40°C to +70°C for use in extreme operating environments, meets Safety Agency requirements and has passed heavy industrial EMI/EMS testing. Front accessible I/O cabling is convenient for wiring and maintenance.

Advanced Features:

• Fanless operation
• Robust industrial-grade hardware design
• x86 architecture supported
• Flexible I/O expansions
• -40°C to +70°C wide temperature range
• Compact size with DIN-rail mounting
• Supports DIO, PoE, Can bus, and Isolated COM
• Redundant power inputs with power failure alarm
• Meets Safety Agency requirements and complies with EMI/EMS
• Linux, Windows® CE or Windows® XP embedded supported

rBOX100 Robust Din-rail Fanless Embedded System with Intel® Atom™ Processor Z510PT/Z520PT up to 1.3 GHz, Intel® US15WPT Chipset and DIO	rBOX104 Robust Din-rail Fanless Embedded System with Intel® Atom™ Processor Z510PT/Z520PT up to 1.3 GHz, Intel® US15WPT Chipset and 4-port PoE

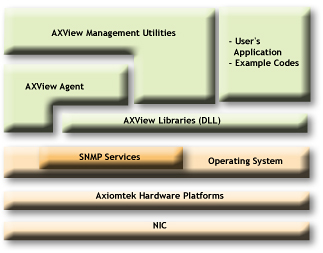

AXView Monitoring Software Package
To streamline implementation of management applications, Axiomtek has launch 'AXView 2010' packages for customers to build their own unique management systems easily and quickly. By importing private MIB, Axiomtek platforms with AXView could be easily integrated into standard SNMP-based management systems. Based on standard SNMP protocols, AXView contains a variety of easy-to-use management utilities, agent services and libraries.

Four Major Modules:

Libraries (DLL)

• Local Monitoring (CPU clock, FAN speed, thermal, WDT, case open, current working voltages, H.D.D.(S.M.A.R.T.), hibernation...etc.)
• Remote Monitoring (FAN speed, thermal, WDT, case open, working voltages, H.D.D. (S.M.A.R.T.), hibernation, settings... etc.)
• C/C++,C#... etc.

Management Utilities

• Local monitoring
• Remote monitoring Agent
• On-line monitoring system
  • Overheating
  • Fan stop
  • Case open
  • LAN drop
  • Working voltage beyond pre-defined normal range
  • USB devices changed
• Fire alarm by sending (SNMP trap & email)

Private MIB

• Easily integrates into well-known SNMP management systems

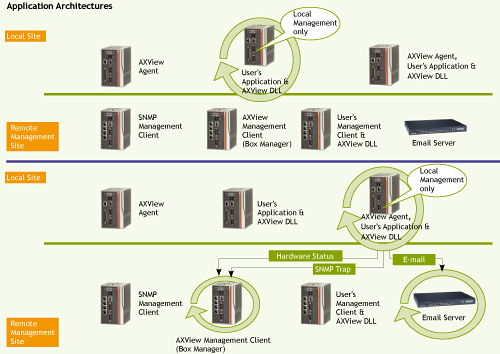

Application Diagram
