Optimizing Production Line Monitoring with HMI for Harsh Manufacturing Settings
|
|
| |
In modern manufacturing, efficiency, precision, and real-time monitoring are paramount. The HMI (Human Machine Interface) operator station is an indispensable tool in modern production environments, enabling operators to interact with machines, processes, or entire production lines. With its clear, interactive interface, the HMI operator station allows for seamless monitoring, control, and optimization of production processes in real-time.
|
|
|
| |
|
The customer, based in Turkey, has been delivering turnkey solutions and innovative machinery for the aluminum and copper industries worldwide since 1991. They have been looking for a 15-inch industrial touch panel PC for use as an HMI operator station to monitor production lines in copper and aluminum manufacturing plants. The system needed to withstand the tough conditions typical of these environments, offering a robust combination of durability, high performance, and intuitive, user-friendly features specifically designed for industrial applications.
|
| |
| Main Requirements |
- Robust IP65 aluminum front bezel
- 15" display with PCAP touchscreen
- High-performance Intel® CoreTM processor
- Less screw design for easy installation
- One PCIe x4 slot
|
| |
|
Axiomtek Robust 15-inch Industrial Touch Panel PC
|
|
| |
|

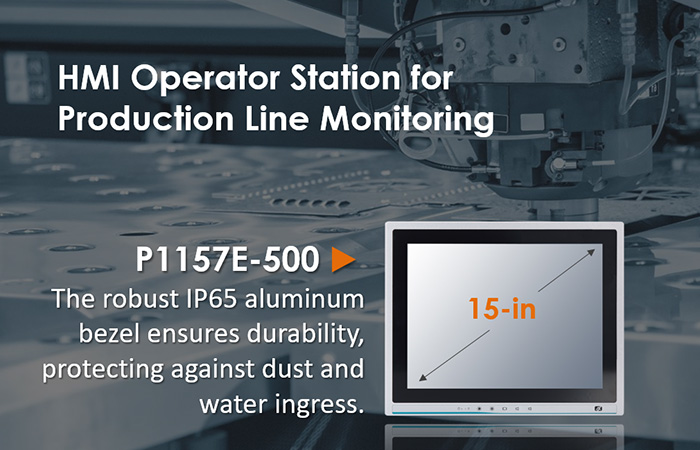

 Axiomtek has proposed its P1157E-500, a 15” XGA TFT LCD display, featuring an IP65-rated front bezel and 5-wire resistive touchscreen with 250 nits of brightness – making it perfectly suited for human machine interface (HMI) applications in factory automation. Featuring a PCAP touchscreen, the P1157E-500 ensures a responsive and intuitive user experience, even in challenging industrial environments.
The P1157E-500 features one PCIe x4 slot for flexible integration of various add-on cards. Rich I/O interfaces include three RS-232 ports, one RS-232/422/485 port, four USB 3.0 ports, two USB 2.0 ports, two Gigabit Ethernet ports, one audio (Mic-in/Line-out), one VGA, one HDMI, and one DisplayPort. For extensive storage options, the P1157E-500 supports one 2.5”/3.5” SATA HDD or two 2.5” SATA HDDs upon request.
|
| |
|
Boosting Productivity and Quality with HMI Operator Stations
|
| |
|
The customer has applied Axiomtek’s P1157E-500 as their HMI operator station for monitoring and controlling production lines in copper and aluminum manufacturing plants. The P1157E-500 offers a durable, high-performance solution tailored to the unique needs of copper and aluminum manufacturing operations, ensuring efficient and reliable production line monitoring. Industrial environments can be demanding, not only in terms of performance but also when it comes to ease of deployment. The P1157E-500 features a less screw design, which simplifies installation and reduces setup time.
With a 15" XGA TFT LCD display, Intel® processors, robust connectivity options, and an industrial-grade IP65-rated design, this system is built to deliver optimal performance in even the most demanding industrial environments. Its easy installation, expansion capabilities, and versatility ensure that it is an ideal solution for manufacturers, machine builders, and system integrators looking to enhance productivity, streamline processes, and improve operational efficiency.
|
 |
| |
| System Configurations of the CAPA322 |
- 15" XGA TFT LCD display with PCAP touchscreen
- Intel® Core™ i7/i5/i3, Celeron® & Pentium® processors
- 4 USB 3.0, 2 USB 2.0, and 4 COM
- One PCIe x4 slot
- Robust IP65 aluminum front bezel
- Supports panel mount
|
| |
|
|
| |
|
For an industrial touch panel PC that can serve as an HMI operator station in demanding environments such as copper and aluminum manufacturing plants, you’ll need a rugged, high-performance system designed to withstand harsh conditions, including durability against dust, moisture, temperature extremes, and potential vibrations from heavy machinery. Axiomtek’s industrial panel computers provide excellent solutions that meet these requirements, offering a balance of ruggedness, performance, and user-friendly features tailored for industrial use.
“We extend our sincere gratitude to Axiomtek and local partner for their exceptional service. Their timely delivery of high-quality products was instrumental in the success of our project. The outstanding technical support and customer service have surpassed our expectations, reinforcing our confidence in Axiomtek as a trusted partner,” said the IT Manager of the customer.
|
| |
|
|
|
