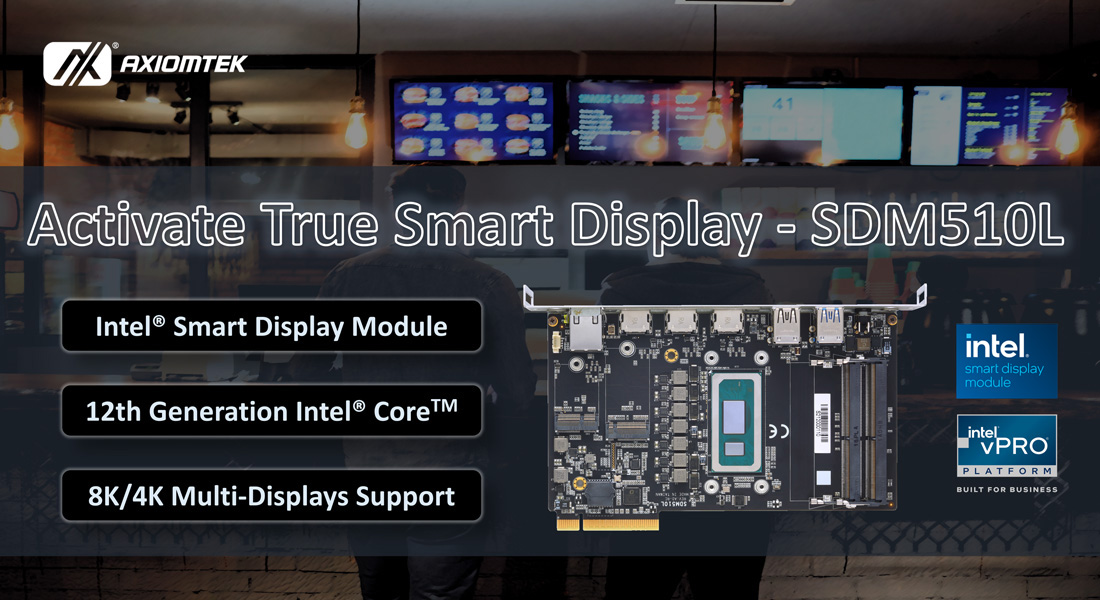

Axiomtek – a world-renowned leader relentlessly devoted to the research, development, and manufacturing of innovative and reliable industrial computer products of high efficiency – is glad to introduce the SDM510L, an Intel® Smart Display Module Large (Intel® SDM-L) featuring the 12th generation Intel® Core™ processors (code name: Alder Lake-H/P/U series). In addition to the superior performance, the SDM510L is customer-oriented in support of Intel® OpenVINO™ and Intel vPro® for AI development and remote management and can drive a single 8K display or quadruple 4K displays to be an ideal digital signage solution across industries, especially in the smart retail sector.
Axiomtek’s SDM510L is powered by the 12th generation Intel® Core™ i7/i5/i3 or Intel® Celeron® processors. It is worth mentioning that Intel® Thread Director (Alder Lake featuring power-saving technology) secures the secondary tasks to needlessly invoke the main core, which benefits the overall OS performance. The board offers two SO-DIMM slots for DDR4-3200 MHz memory. Delivering visual amazement, the SDM510L supports Intel® Iris® Xe Graphics (Core™ i7/i5) or Intel® UHD Graphics (Core™ i3 and Celeron®) with three coastline HDMI 2.0 (4K60Hz) plus one HDMI 2.1 (for 8K60Hz) and one DisplayPort 1.4 through the SDM edge connector that allows connecting up to quadruple displays with precise color accuracy and wide ranges of colors to deliver crystal-clear images. More I/O ports include three USB 3.2 Gen2, one USB 2.0, and one 2.5GbE LAN for further connection.
The SDM510L supports one M.2 Key M 2242 slot for SSD storage and one M.2 Key E 2230 slot for Wi-Fi/Bluetooth module as the expansion interfaces for performance upgrades. The SDM-L edge connector expresses the fifth USB interface, as well as two I2C, a serial port, and +12V & +3.3VBS power input, in addition to the HDMI and DisplayPort connections.
“The SDM510L is designed to simplify integration, maintenance, and upgrade, and saves space for limited space signage applications. It supports single 8K or multiple 4K displays, rich I/O interfaces, and flexible expansion slots that bring out a truly smart display solution for in-store digital signage and digital menu boards in retail or video surveillance in the control room,” said Alan Nieh, the product manager of the Intelligent Retail Solution Team at Axiomtek. “Moreover, we have the capability to assist any customer's industrial integration requirements and achieve fast time to market.”
The SDM510L is available for purchase now. For further product information or customization services, please visit our global website at www.axiomtek.com or contact sales representatives at firstname.lastname@example.org.
Advanced Features of SDM510L:
- Intel® Smart Display Module Large (Intel® SDM-L) specification
- 12th generation Intel® Core™ i7/i5/i3 or Intel® Celeron® processor (Alder Lake-H/P/U series)
- 2 DDR4-3200 SO-DIMM slots
- M.2 Key M 2242 slot for storage
- M.2 Key E 2230 slot for Wi-Fi/Bluetooth
- 3 HDMI, 3 USB 3.2 Gen2, 1 USB 2.0, and 1 LAN
- Supports Intel® OpenVINO™ and Intel vPro® platform
