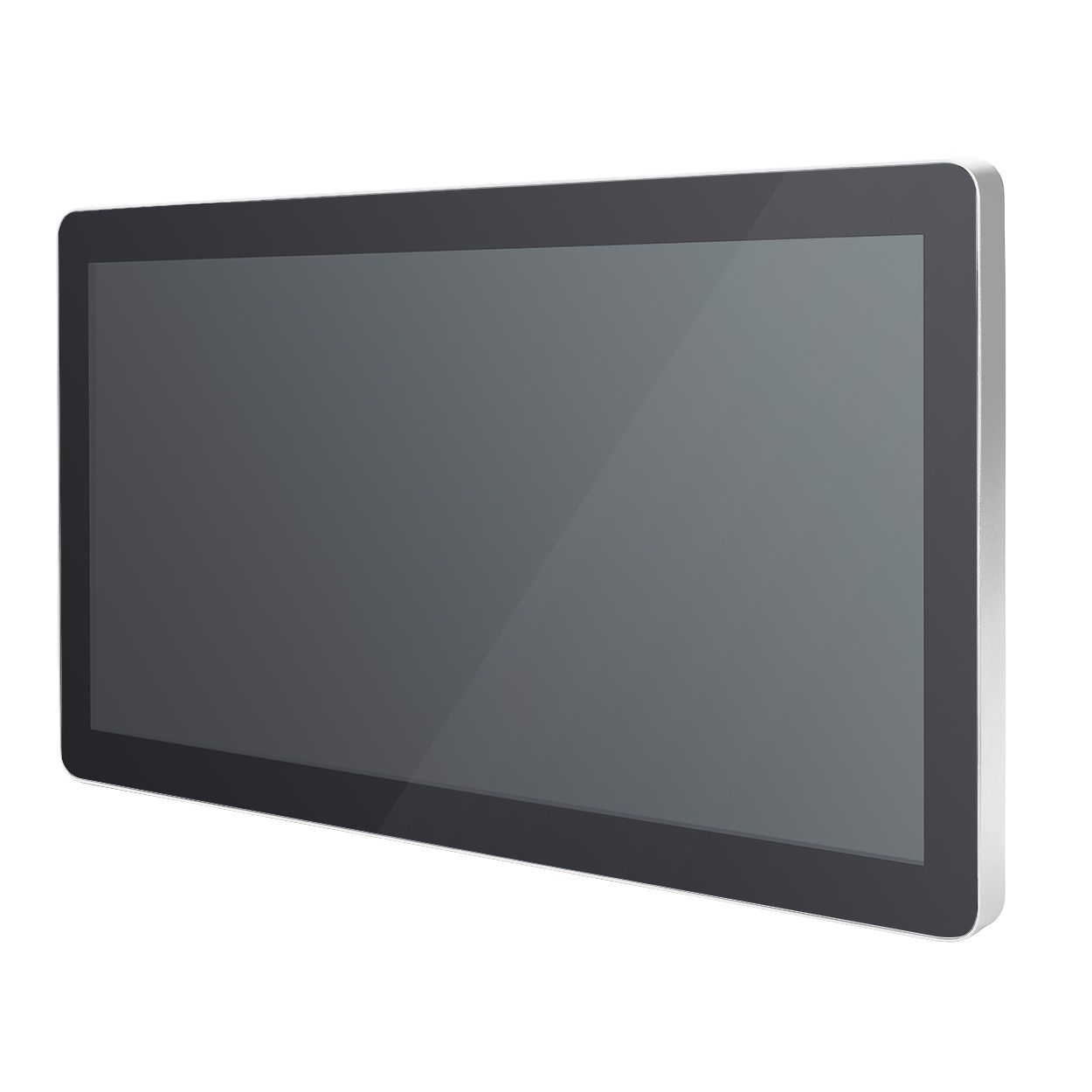

LCD Panel |
- 15.6" FHD TFT LCD
- 300 nits
- 16:9 radio
- 1920 x 1080 pixels
|
SDM Module |
- SDM300-S: Intel® SDM Small (SDM-S, 60 x 100 mm)
- SDM500-L: Intel® SDM Large (SDM-L, 175 x 100 mm)
|
CPU |
- SDM300-S: Quad-core Intel® Pentium® N4200 1.1GHz processor or dual-core Intel® Celeron® N3350 1.1GHz processor
- SDM500-L: Intel® Celeron® 4305UE 2.0GHz processor or Intel® Core™ processor (optional)
|
Chipset |
|
System Memory |
- SDM300S: Onboard LPDDR4 2400 MHz 4GB (8GB optional)
- SDM500L: 2 x 260-pin DDR4-2400 SO-DIMM slot, up to 64GB
|

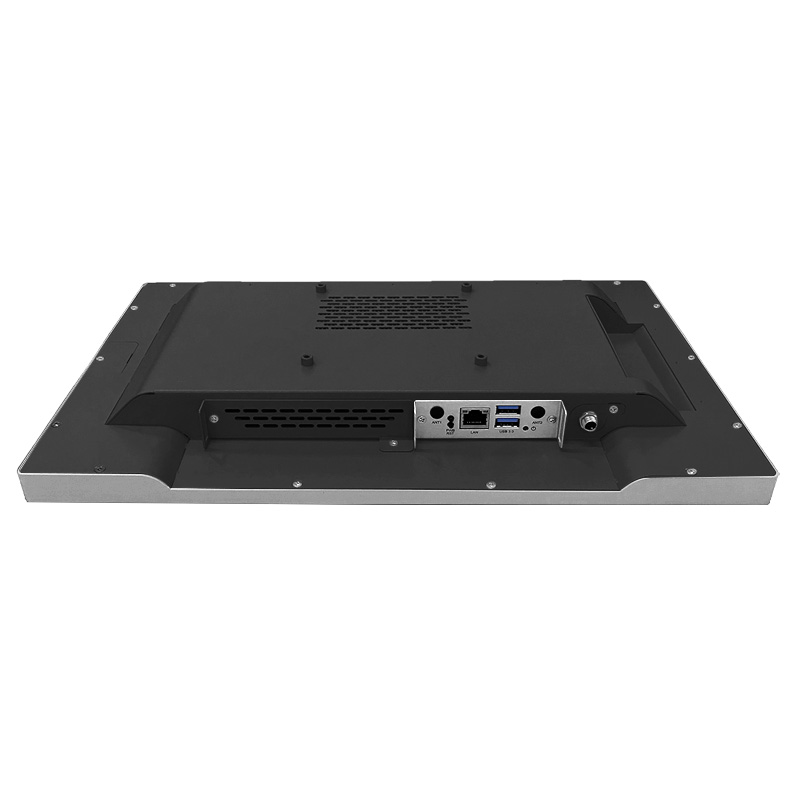

SDM-S I/O |
- 1 x GbE LAN
- 2 x USB 3.0 Type A
- 2 x SMA antenna reserved hole
|

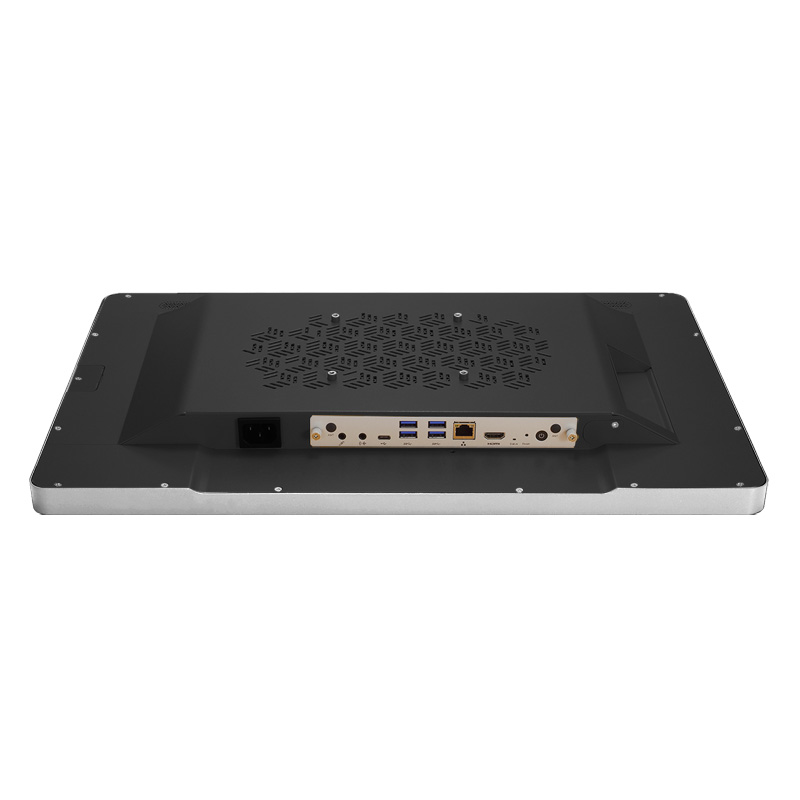

SDM-L I/O |
- 1 x Power button with LED
- 1 x GbE LAN
- 4 x USB 3.0 Type A
- 1 x Audio output
- 1 x Micphone input
|

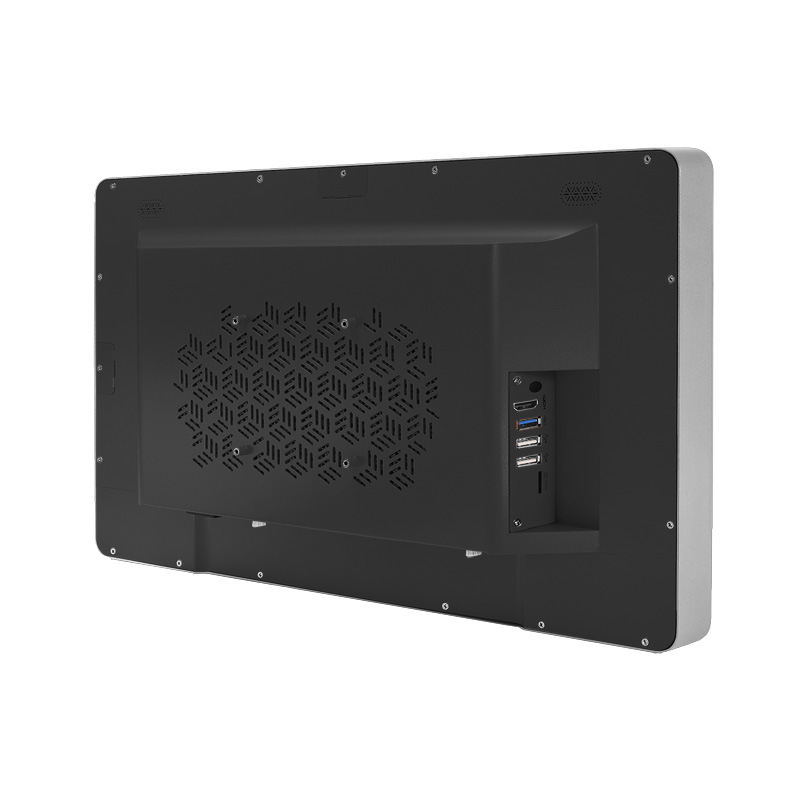

I/O |
- 1 x HDMI
- 1 x USB 3.0 Type A
- 2 x USB 2.0 Type A
- 1 x microSD card slot (push-push type)
- 2 x 12 VDC-in barrel (screw-lock type)
- 1 x Power button with LED
|
Touchscreen |
- Projected capacitive multi-touch
|
Front Bezel |
- Metallic front bezel, IPx4 compliant
|
Expansion |
- SDM300-S:1 x M.2 Key E 2230 slot (for the Wi-Fi)
- SDM500-L: 1 x M.2 Key E 2230 slot (for the Wi-Fi)
|
Storage |
- SDM300-S:
- 1 x eMMC 64GB onboard
- SDM500-L:
- 1 x M.2 Key M 2242 slot
- 1 x M.2 Key B 2280 slot
|
Others |
- 2 x S.P.L. 88dB, 1.5W, 4 ohm
|
Power Supply |
- 84W (12V@7A) AC to DC power adapter
|
Power Consumption |
|
Dimensions |
- 386 x 40 x 241 mm (15.1” x 1.6” x 9.5”)
|
Weight (net/gross) |
- 3.1kg (6.9lb)/5.6kg (12.4lb)
|
Operating Temperature |
- 0°C to +40°C (+32°F to +104°F)
|
Operating Humidity |
- 20% - 90%, non-condensing
|
Certications |
|
