Features

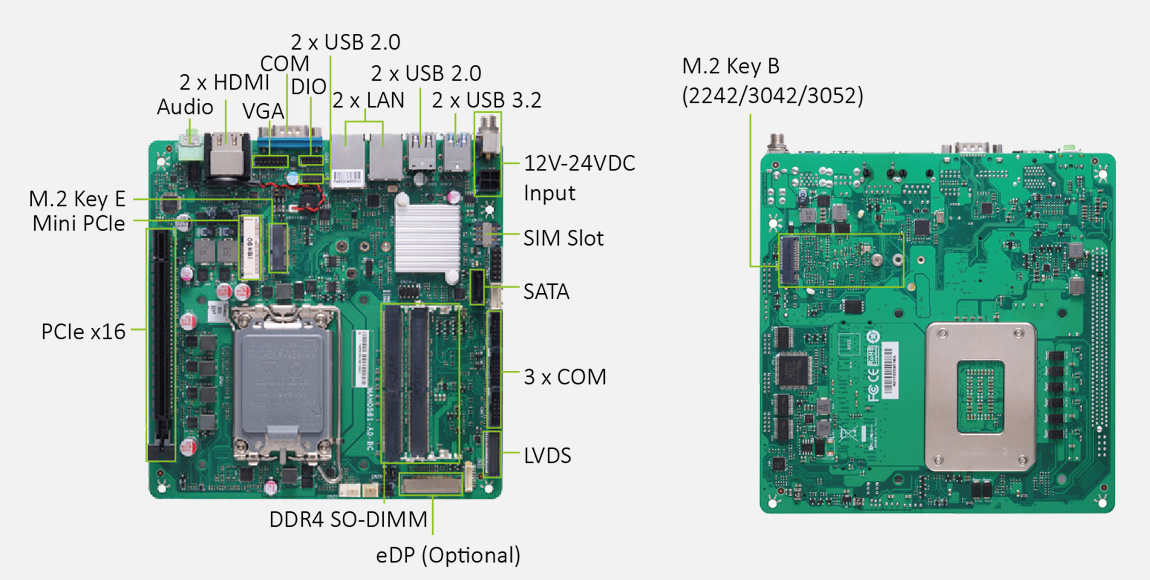

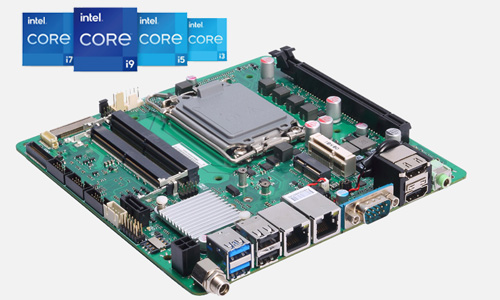

- LGA1700 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
- Intel® H610 chipset
- 2 DDR4 SO-DIMM for up to 64GB memory
- 2 USB 3.2 Gen1 and 5 USB 2.0
- 2.5GbE LAN and 4 COM ports
- 1 PCIe x16, 1 M.2 Key E, and 1 M.2 Key B
- 1 full-size PCI Express Mini Card slot
- 1 SATA-600
- 12 to 24 VDC power in
Introduction
The eBOX626-853-FL is a slim-type fanless embedded system with wide range temperature and wide range DC input support. The cost effective compact embedded box PC is designed to support the Intel® Celeron® processor quad-core N3160 (codename: Braswell) integrated with Intel® Gen 8 graphics and DirectX 11.1. One DDR3L 1333/1600 SO-DIMM socket supports up to 8 GB memory. The IP40-rated industrial computer eBOX626-853-FL combines low power consumption with high performance graphics and computing for smart automation, transportation, industrial gateway, multiple media kiosk and other IoT&M2M applications.
