| CPU |
- Intel Atom® x7433RE processor, 1.5 GHz/4C/9W
|
| Chipset |
|
| System Memory |
- 1 x DDR5-5600 SO-DIMM, up to 16 GB
|
| COM |
|
| USB |
|
| Ethernet |
- 2 x RJ-45 2.5GbE LAN (Intel® I226-IT; TSN supported)
|
| PoE |
|
| CANbus |
|
| Analog Input |
|
| Digital I/O |
- DIO Others 1 x DIO (8-bit programmable DIO)
|
| Display |
- 1 x HDMI (1.4b, 4K); (2nd HDMI w/ FHD by option)
|
| Expansion |
- 1 x full-size PCI Express Mini Card slot (USB signal) with SIM slot for 4G-LTE module
- 1 x half-size PCI Express Mini Card slot with SATA or PCIe signal (mini mSATA or Wi-Fi)
- 1 x M.2 B+M key 2242 with PCIe signal (for NVMe)
|
| Storage |
- 1 x half-size PCI Express Mini Card slot for mSATA (SATA or Wi-Fi selection)
- 1 x M.2 B+M key 2242 for NVMe
|
| Others |
|
| Power |
- 1 x terminal block, 9 to 36 VDC, typical 12/24V
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Construction |
- Extruded aluminum and heavy-duty steel, IP30
|
| Operating Temperature |
- AC: 0°C to +50°C (+32°F to +122°F)
- AW: - 40°C to +70°C (-40°F to +158°F)
|
| Relative Humidity |
- 10% to 95% relative humidity, non-condensing
|
| Vibration |
- 3 Grms, 5 to 500Hz, X/Y/Z direction; random, operating
|
Dimensions
(W x D x H) |
- AC: 48 x 110 x 155 mm (1.89" x 4.33" x 6.1")

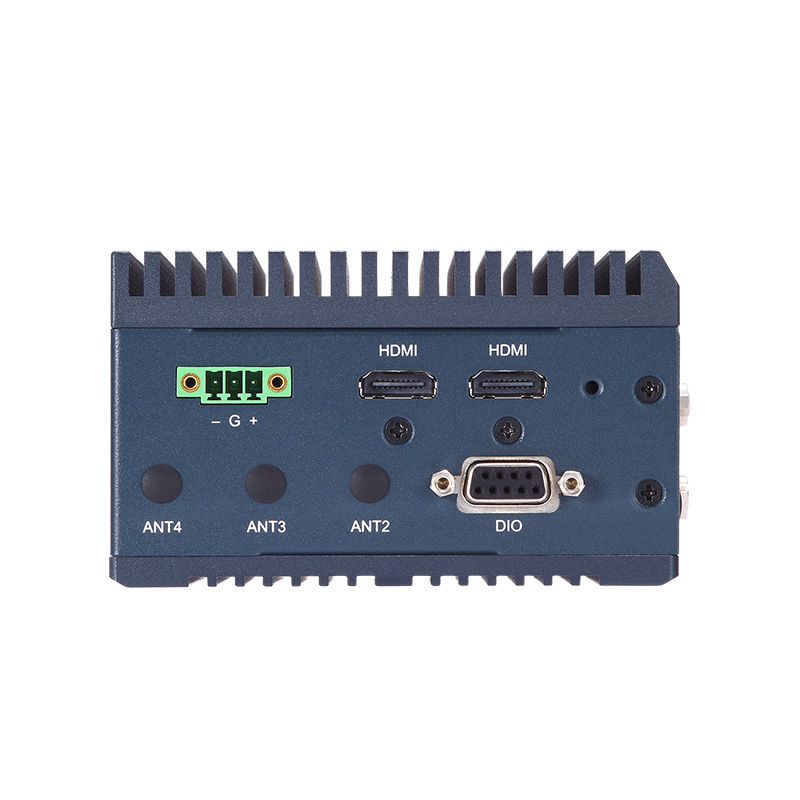

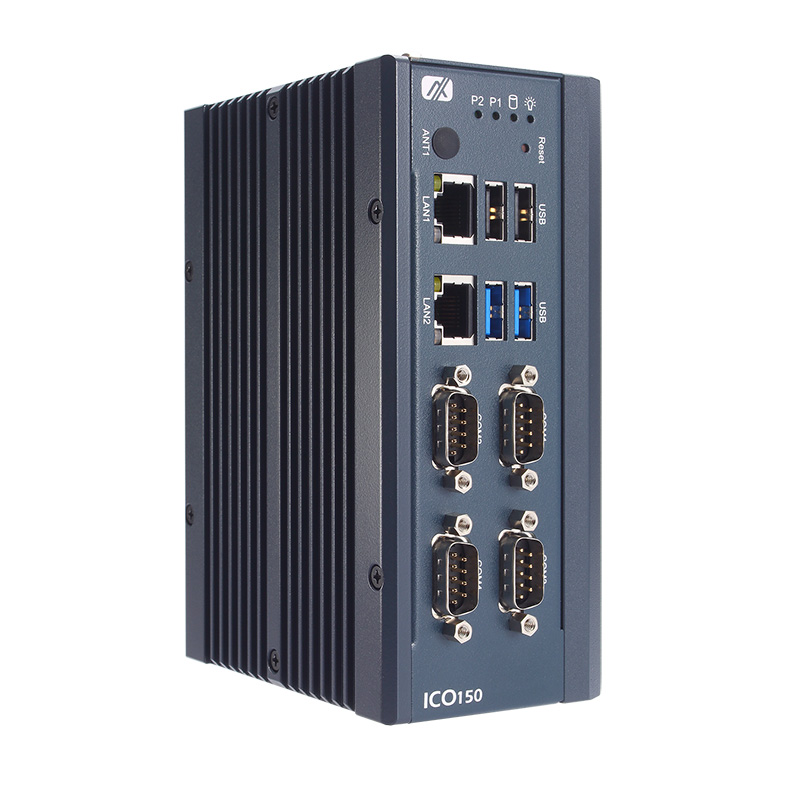

- AW: 65 x 110 x 155 mm (2.56" x 4.33" x 6.1")
|
| Weight (net/gross) |
|
| Certifications |
- CE (EN 55032/EN 55024), FCC (FCC Part 15B), and UL
|
| EOS Support |
- Windows® 11 IoT, Ubuntu 22.04
|
| Software Support |
|
| Mounting |
- DIN-rail kit
- Wall mount kit (optional)
|
