AXView 2.0

Intelligent Remote Management Solution

  • Status: Available
  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products
    • Local Hardware Monitoring
    • Local SRAM Backup
    • Remote Management
    • Store Apps
    • Service Cloud
    • SNMP, MQTT, MODBUS, SNMP Trap, and Email

    Introduction

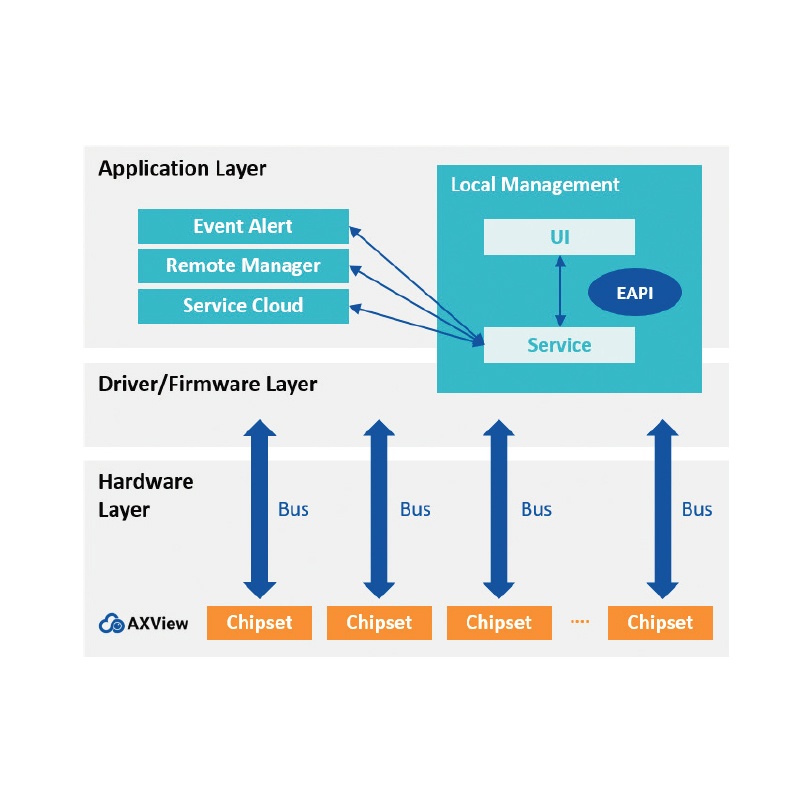

    Local Hardware Monitoring and Agent
    Agent is a software service that monitors local hardware behaviors, triggers event alerts when abnormalities happen and shares machine information with remote management systems and the AXView 2.0 service cloud. Local hardware behaviors such as system working temperatures, working voltages and fan speed if it exists are the basic entities to be watched. Once touching a predefined or user-defined threshold, the event alert system will be triggered immediately. The event alert system is triggered by local software service agent and which will inform remote management system by sending an email, SNMP trap and MQTT messages so that standard email systems, SNMP network management system and cloud service supporting MQTT protocol can easily co-work with AXView 2.0. AXView 2.0 also provides more advanced capabilities for system behavior monitoring, including power consumption measurement, HDD health detection, digital I/O level comparison, LAN port connectivity detection, USB device plug-in/plug-out detection, power failure detection, SRAM backup for emergency, OS recovery by demand, dual hardware watchdog and so on. Data can also be stored in the service cloud for review in the future, which is just one of the many key features of AXView 2.0.

    Remote Management
    AXView 2.0 offers software for remote management platforms and Microsoft® Windows platform and phablet family. In addition to hardware monitoring, AXView 2.0 provides remote management system support functions for DISCOVER, SNMP and Modbus, which helps administrators to locate, identify and manage machines with standard protocols on its network. Remote management system can play the role of alert receiver. As long as local hardware monitoring service Agent assigns the IP address of the remote management system as the alert receiver, SNMP trap will show up on time on the management screen. If you're using a phablet, simply use the AXView store app to connect to the service cloud by entering the IP address of your service cloud. Once service cloud connects, any event alert fired by Agent will be also pushed to your phablet automatically.

    Service Cloud
    Service Cloud is a new feature of AXView 2.0 suite comparing to version 1.0. It’s designed to store, forward and review machine data for behavior analysis. AXView also provides software packages to assist users in constructing their own cloud. Software services developed by AXView will also be available for sharing in the future.

    Embedded Application Programming Interface (EAPI)
    AXView 2.0 supports EAPI compliance with PICMG EAPI standards and extends its features to support access to special system information, hardware health status, system behavior and unique system designs such as battery backup memory area, panel backlight, DIO and dual hardware watchdogs.

  • Communications
    • Protocol: SNMP, Modbus TCP, SMTP, MQTT
    • Communication interface: RS-232/485, WiFi, 3G
    Monitoring
    • Device monitoring for CPU voltage, temperature, Digital I/O, fan speed, HDD status, power consumption
    • System monitoring via digital input (DI)
    Cloud Integration
    • Device grouping
    • Storing device information
    • Storing system information
    • Storing sensor status
    • Public/Private cloud
    • MQTT for data exchange between PC and smart phone
    Security
    • Watchdog timer to ensure normal operation
    • Operating per user ID authentication
    • Remote system recovery
    • Critical data backup
    Remote Control
    • Remote management by SNMP
    • Special-purpose backup in flash
    • Inventory management (device H/W, S/W resource)
    • Diagnosis by screen capturing
    • Green control to peripheral devices
    • System recovery
    • App (smart phone) remote management
    Analytics
    • N/A
    EAPI
    • Windows library of API supporting CPU voltage, temperature, WDT, I2C/SMBus, GPIO, fan speed, backup in flash, HDD (S.M.A.R.T)
    Entry-level Structure
    • N/A
    System Requirements
    • OS:
      Windows® 7 for Agent and Remote Manager on PC
      Android for Remote Manager on smart phone, Pad
    • CPU:
      Atom E3815 or above for Agent on device
      Atom E3815 or above for Remote Manager on PC
    • Storage:
      16GB for Agent on device
      16GB for Remote Manager on PC
      2GB for Remote Manager on Android phone/Pad
    • Memory:
      4GB for Agent on device
      8GB for Remote Manager on PC
    Platforms
    • rBOX500
    Inverters
    • N/A
    • AXView 2.0
      Intelligent Remote Management Solution
  • Drivers

    Software

    Date Description Version Download File
    2016/08/03 AXView 2.0 Installer V1.6 5,800,000KB

    Manual

    Date Description Version Download File
    2016/01/28 User Manual V1.0 6,524.1KB
