GOT5103W-845

10.1" WXGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060

  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products

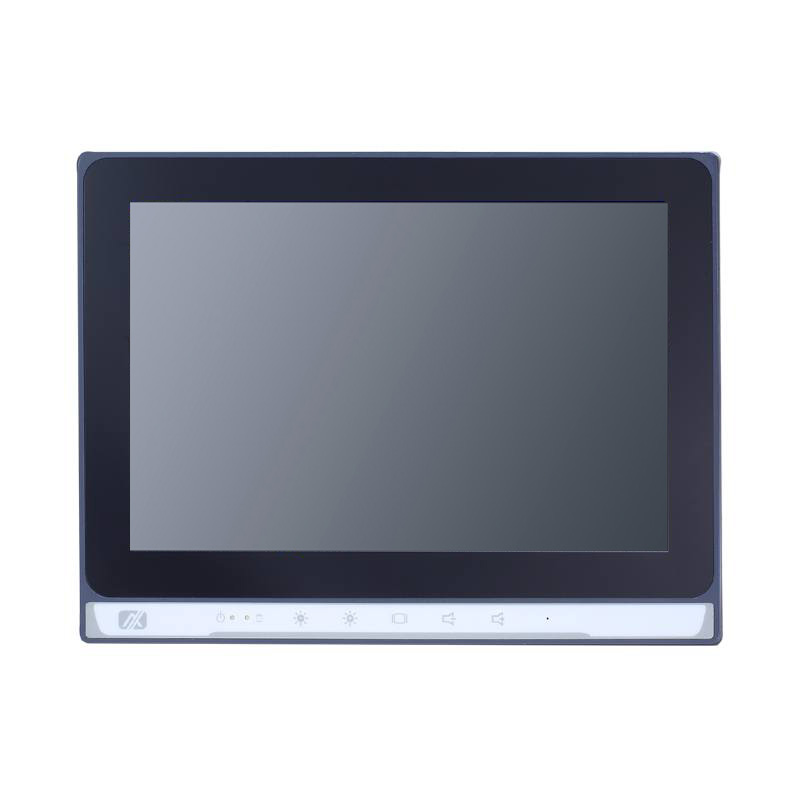

    • 10.1" WXGA wide screen TFT LCD display with LED backlight
    • Projected capacitive multi-touch
    • Fanless design with Intel® Celeron® processor N3060 (up to 2.48 GHz)
    • 1 mSATA and 1 half-slim SATA SSD (optional)

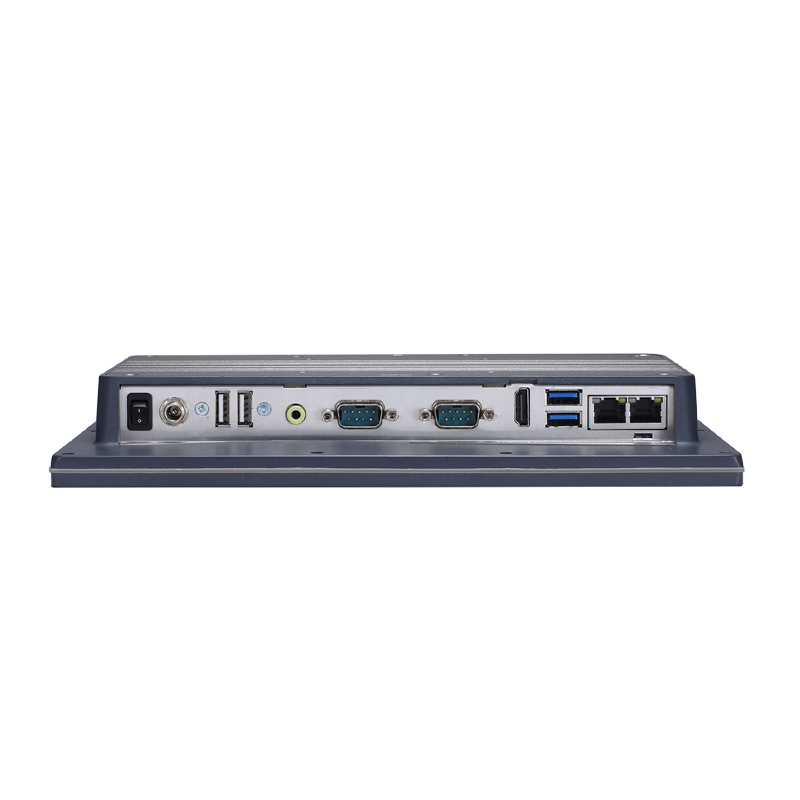

    • 2 Gigabit LAN, 4 USB, 2 COM ports, 2W speakers and optional mic-in

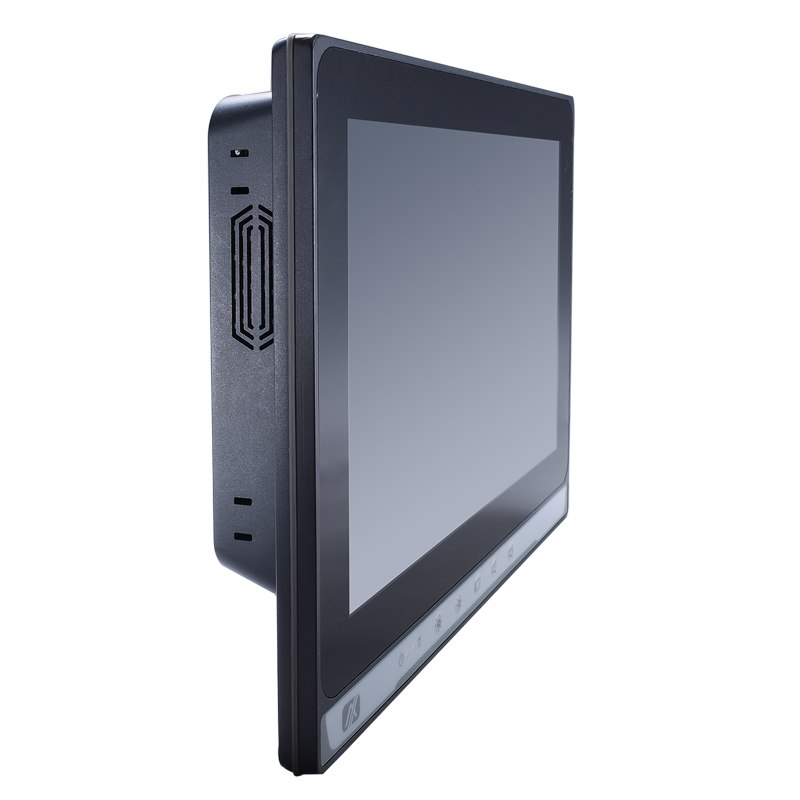

    • IP65 front bezel and IPX1 full enclosure design

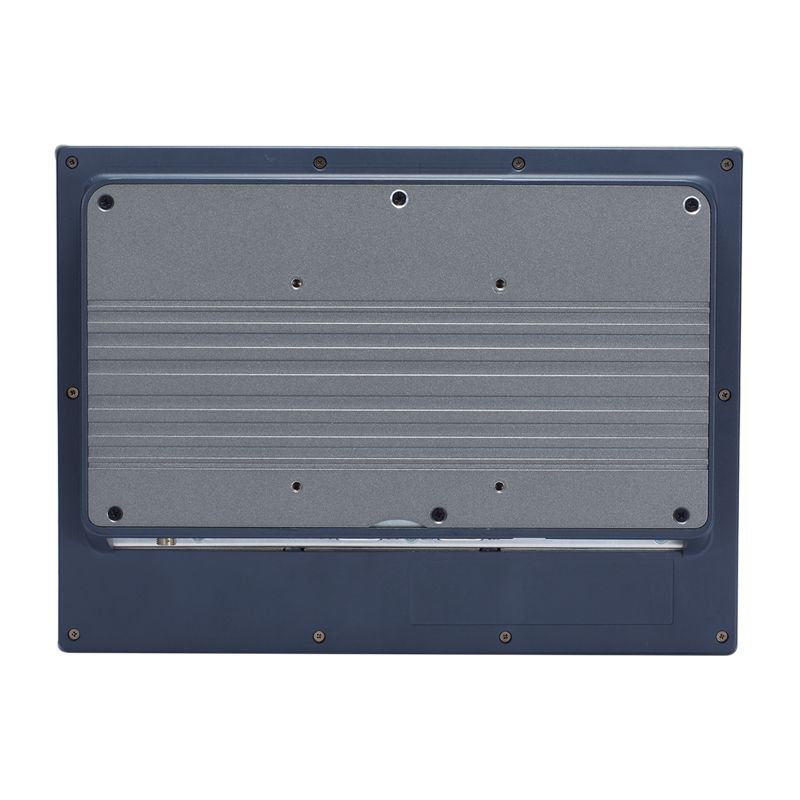

    • Supports optional panel mount/wall mount/VESA arm/desktop stand
    • External AT/ATX mode selection switch

    Introduction

    The GOT5103W-845 is designed with the Intel® Celeron® dual core processor N3060. The all-in-one 10.1-inch industrial touch panel PC supports easily accessible external AT/ATX mode selection switch, multiple mounting types, and multi-touch projected capacitive touch panel to fulfill assorted needs. The hardened GOT5103W-845 adopts an IP65-rated front bezel, IPX1 compliant chassis to protect against dirt, dust and water under different environmental conditions. In order to enhance the convenience of the device, the Intel® Celeron®-based SoC touch panel PC, which is widescreen and sleek, has five membrane switches on the bottom of its front panel, providing an easier way to adjust the display, volume and brightness. With its slim and ultra-light weight design, the Axiomtek GOT5103W-845 is ideal for limited space installation; therefore, this industrial-grade panel PC is excellent for widespread using in supermarket, shopping mall as a self-service kiosk, and in smart factory & smart building automation fields.

  • LCD Panel
    • 10.1" WXGA TFT LCD withg LED backlight
    • 350 nits
    • 1280 x 800 pixels
    CPU
    • Intel® Celeron® processor N3060 up to 2.48 GHz
    Chipset
    • SoC integrated
    System Memory
    • 1 x 204-pin SO-DIMM DDR3L-1600, up to 8 GB
    BIOS
    • AMI
    COM
    • 1 x RS-232
    • 1 x RS-232/422/485
    USB
    • 2 x USB 2.0
    • 2 x USB 3.0
    Ethernet
    • 2 x 10/100/1000 Mbps (Intel® i211AT)
    Display
    • 1 x HDMI
    Audio
    • 1 x Audio (Line-out)
    Storage
    • 1 x Half-slim SATA SSD (optional)
    • 1 x mSATA
    Expansion
    • 1 x Full-size PCI Express Mini Card with mSATA
    • 1 x Full-size PCI Express Mini Card with SIM slot
    Others
    • 2 x Speaker
    • WLAN antenna
    • 1 x Switch for power On/Off
    • 1 x AT/ATX mode selection switch
    Touchscreen
    • Projected capacitive multi-touch
    Front Bezel
    • IP65, plastic front bezel
    Power Supply
    • AC version: 100~240V AC-DC, 60W power adapter
    • DC version: 24 VDC with over current protection fuse
    Power Comsumption
    • 40.32W
    Watchdog Timer
    • 255 levels, 0 ~ 255 sec.
    Operating Temperature
    • 0°C ~ +50°C (+32°F ~ +122°F)
    Relative Humidity
    • 20% ~ 90% @ 40°C; non-condensing
    Vibration
    • 2 G, 10 ~ 500Hz, random for SSD
    Dimensions
    (W x D x H)
    • 260.8 x 38 x 194.1mm (10.27" x 1.50" x 7.65")
    Weight (net/gross)
    • 1.08 kg (2.38 lb)/2.18 kg (4.8 lb)
    Certification
    • CE
    EOS
    • Windows® 10, Windows® 8.1, WE8S, Windows® 7, WES 7
    Mounting
    • Panel mount
    • Wall mount
    • VESA arm

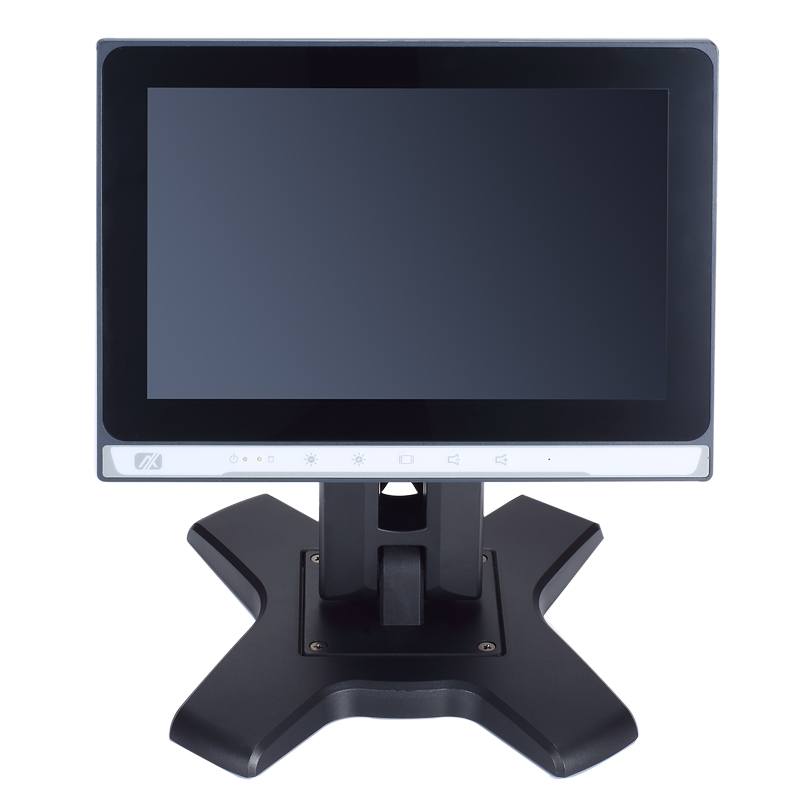

    • Desktop stand
    • GOT5103W-845-PCT-J
      10.1" WXGA fanless touch panel computer with Intel® Celeron® processor N3060, projected capactive multi-touch screen, AC-DC 60W power adapter (screw type connector) and EMI class A
    • GOT5103W-845-PCT-24VDC
      10.1" WXGA fanless touch panel computer with Intel® Celeron® processor N3060, projected capacitive multi-touch screen, and 24 VDC power input (terminal block connector)
    • GOT5103W-845-PCT-J w/o OSD
      10.1" WXGA fanless touch panel computer with Intel® Celeron® processor N3060, projected capactive multi-touch screen, AC-DC 60W power adapter (screw type connector) and EMI class A, w/o membrane keys
    • GOT5103W-845-PCT-24VDC w/o OSD
      10.1" WXGA fanless touch panel computer with Intel® Celeron® processor N3060, projected capacitive multi-touch screen, 24 VDC power input (terminal block connector), w/o membrane keys
    • Wi-Fi + Bluetooth kit
    • Panel mount kit
    • VESA mount kit
    • Half slim SATA SSD bracket kit
    • RFID kit
    • Stand kit
  • Drivers

    Date Description Version Download File
    2017/04/20 Step8 Penmount Touch Driver- Only for Resistive VA1.1 5,427.3KB
    2017/04/20 Step7 Volume Sync (Only for GOT5103-845) VA1.1 88,059.3KB
    2017/04/20 Step6 Intel USB 3.0 Driver VA1.1 7,882.4KB
    2017/04/20 Step5 HD Audio VA1.1 228,350.4KB
    2017/04/20 Step4 LAN VA1.1 230,364.2KB
    2017/04/20 Step3 TXE VA1.1 37,490.4KB
    2017/04/20 Step2 Graphic VA1.1 565,475.7KB
    2017/04/20 Step1 Chipset VA1.1 2,722KB
    2017/04/20 KB

    Software

    Date Description Version Download File
    2017/04/20 PCT TOUCH Calibration (For GOT5103) VA1.1 16,037KB
    2017/04/20 AX-USB30-Utility VA1.1 856.9KB

    Manual

    Date Description Version Download File
    2017/04/20 GOT5103W-845 User's Manual VA3_08-23-2016 VA1.1 3,424KB

    Technical Announcement
