eBOX800-841-FL

Rugged IP67-rated Fanless Embedded System with Intel® Atom™ Processor E3845 1.91 GHz, VGA, 2 GbE LANs, 2 USB, 2 COM and 9-36 VDC

  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products
    • Fanless design with IP67-rated
    • Intel® Atom™ E3845 quad-core onboard

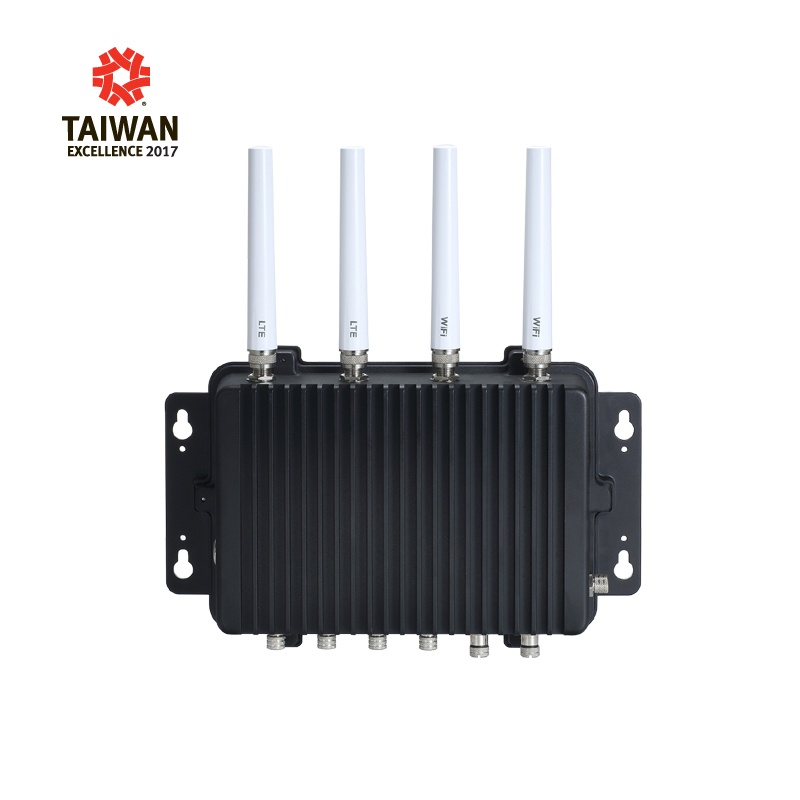

    • 4 antenna opening with water proof design for WLAN & WWAN usage
    • -30°C to +60°C wide operating temperature range
    • 9-36 VDC wide range power input
    • Flexible I/O for customized and mission-critical projects

    Introduction

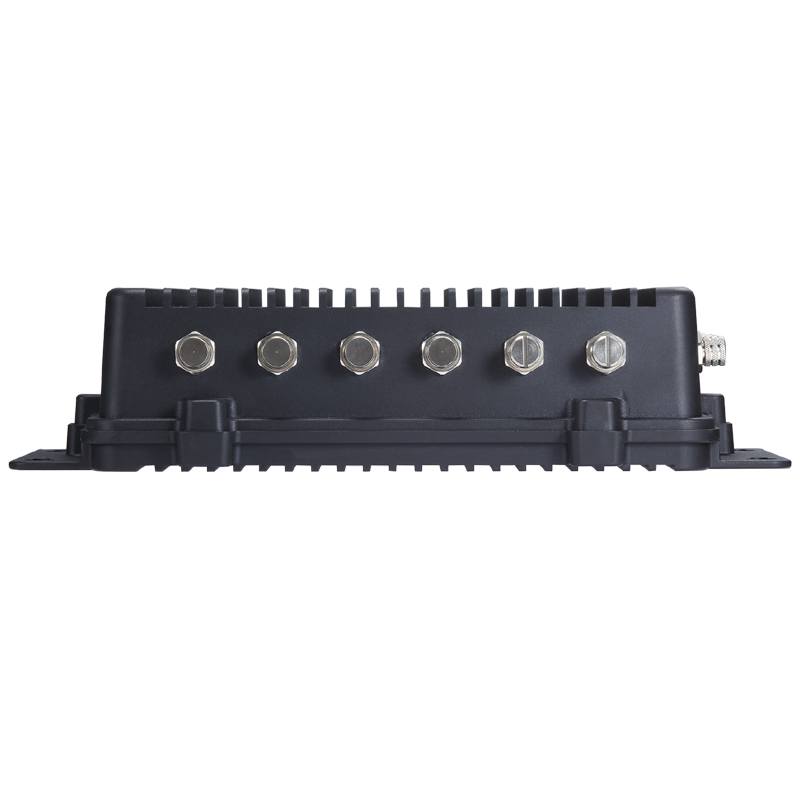

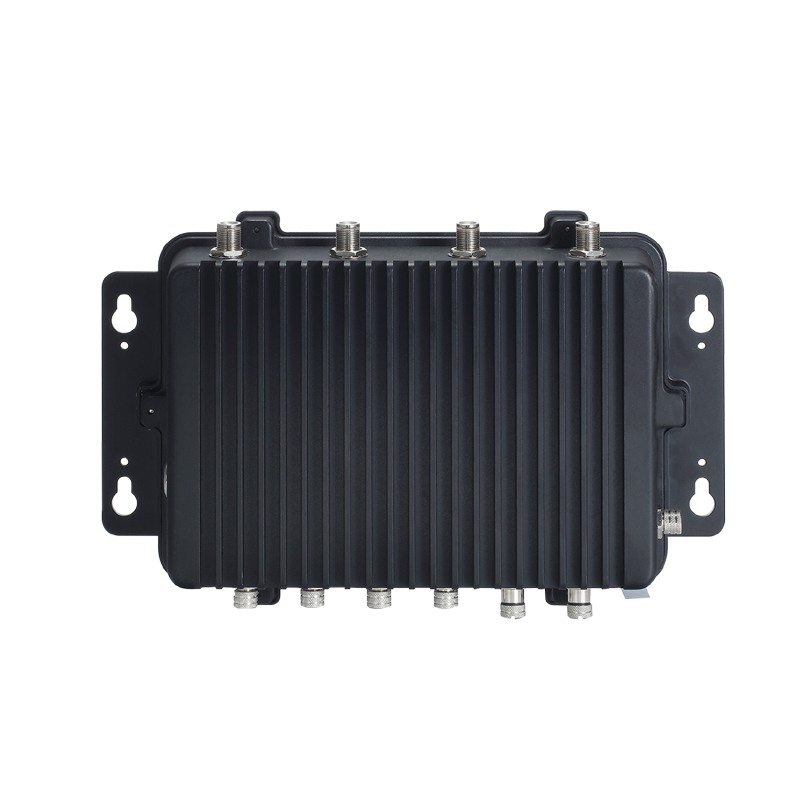

    The eBOX800-841-FL is a fanless embedded system with IP67 protection for mission-critical market. The rugged embedded system is designed for fanless operation at temperatures from -30°C to 60°C. Its 9-36V wide range DC input with various power protection, M12 lockable connectors and N-jack waterproof antenna connectors meet the performance needs for industrial Internet of Things (IIoT) applications. The eBOX800-841-FL is powered by the onboard quad-core Intel® Atom™ E3845 processor (formally codename: Bay Trail). This hardened embedded box PC comes with one DDR3L SO-DIMM slot with system memory up to 8 GB. Additionally, one 2.5” SATA HDD, one mSATA and one CFast™ are available to maintain sufficient storage.

  • CPU
    • Intel® Atom™ processor E3845 1.91 GHz
    Chipset
    • SoC integrated
    System Memory
    • 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8 GB
    BIOS
    • AMI
    COM
    • 2 x RS-232/422/485 (M12-type)
    USB
    • 2 x USB 2.0 (M12-type)
    Ethernet
    • 2 x 10/100/1000 Mbps (M12-type)
    Display
    • 1 x VGA (M12-type)
    Digital I/O
    • N/A
    Audio
    • N/A
    Storage
    • 1 x 2.5” SATA HDD
    • 1 x mSATA
    • 1 x CFast™
    Expansion
    • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
    • 1 x Half-size PCI Express Mini Card slot (USB + PCI Express signal)
    • 1 x SIM slot
    Others
    • 1 x 9~36VDC power input (M12-type)
    • 1 x ATX power switch w/indicator
    • 4 x N-jack type antenna opening
    Power Supply
    • 9-36VDC
    Watchdog Timer
    • 255 levels, 1~255 sec.
    Construction
    • Aluminum die-casting and heavy-duty steel, IP67
    Operating Temperature
    • -30°C ~ +60°C (-22°F ~ +140°F) (with E3845, W.T. SSD/DRAM)
    Relative Humidity
    • 10% ~ 95% , non-condensing
    Vibration
    • 3 Grms with SSD (5-500Hz, X, Y, Z directions)
    Dimensions
    (W x D x H)
    • 210 x 366.83 x 83 mm (8.27” x 14.44” x 3.27")
    Weight (net/gross)
    • 4.31 kg (9.5 lb)/5.1 kg (11.24 lb)
    Certification
    • CE
    EOS Support
    • Win 10 IoT, WE8S, WES7
    Mounting
    • Wall mount
    • VESA mount
    • eBOX800-841-FL-DC
      Rugged IP67-rated fanless embedded system with Intel® Atom™ processor E3845 1.91 GHz, VGA, 2 GbE LANs, 2 USB, 2 COM and 9~36 VDC
    • 2.5” SATA HDD (W.T.)
      40GB or above
    • 2.5” SATA SSD (W.T.)
      4GB or above
    • BDDR3L SO-DIMM (W.T.)
      2GB - 8GB
    • CFast™ (W.T.)
      8GB - 128G
    • LTE module
    • Wi-Fi module
    • 3G module
    • RS-232 cable,180 cm
      594B8122100E
    • LAN cable,180 cm
      594B8152710E
    • 24V 120W Adapter
      50966D45010E
