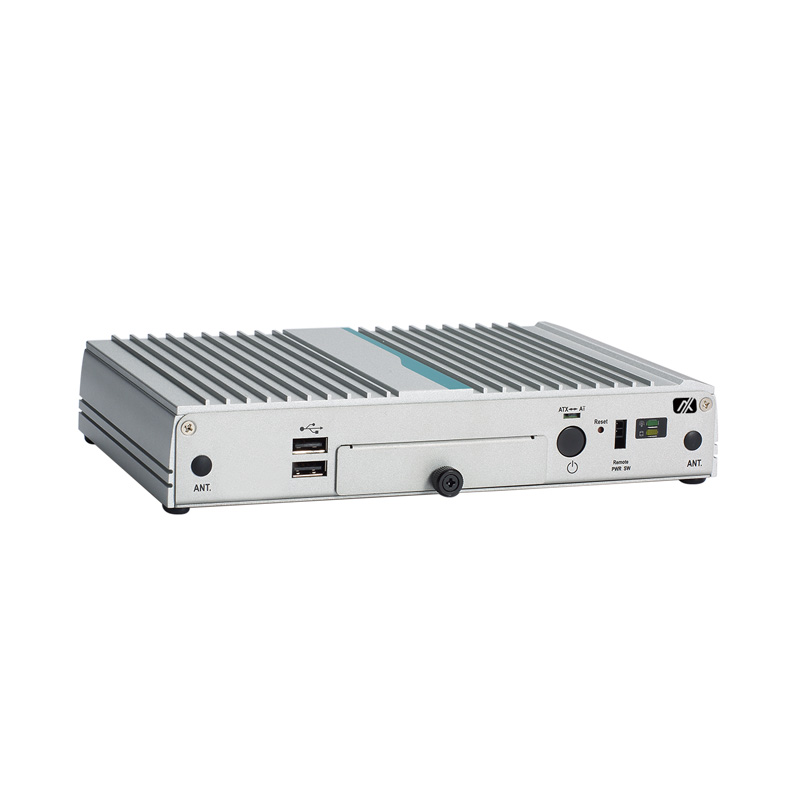

eBOX100-312-FL

Fanless Embedded System with Intel® Celeron® Processor N3350 2.4 GHz, 2 HDMI, 2 GbE LANs and 6 USB

  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products
    • Fanless operation with low power consumption
    • Intel® Celeron® N3350 2.4 GHz dual core
    • 1 COM port, 6 USB ports and 2 GbE LANs
    • 2 full-size PCIe Mini Card slots for WLAN and WWAN
    • 2.5" swappable SATA HDD drive bay for easy to maintain
    • Supports Jumbo Frame (9k), WoL, PXE Remote Boot
    • Suitable for smart retail and light industries

    Introduction

    The eBOX100-312-FL comes with ultra-slim size, low power consumption and fundamental features. The fanless embedded system is powered by the Intel® Celeron® processor N3350 (codename: Apollo Lake) with turbo boost up to 2.4 GHz. It is equipped with one 204-pin DDR3L-1600 SO-DIMM socket with up to 8GB system memory. In order to provide excellent multimedia performance, the embedded box computer comes with two HDMI ports for dual-view display with up to 4K resolution. To enhance wireless communication capabilities, this compact embedded system provides two PCI Express Mini Card slots, one SIM card slot, and four antenna connectors. With its compact size and basic functions, the entry-level eBOX100-312-FL is suitable for smart retail and light industries.

  • CPU
    • Intel® Celeron® processor N3350 2.4 GHz with turbo boost
    Chipset
    • SoC integrated
    System Memory
    • 1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
    BIOS
    • AMI
    COM
    • 1 x RS-232
    USB
    • 2 x USB 3.0
    • 4 x USB 2.0
    Ethernet
    • 2 x 10/100/1000 Mbps (Intel® i211AT)
    Display
    • 2 x HDMI
    Digital I/O
    • N/A
    Audio
    • N/A
    Storage
    • 1 x 2.5" SATA HDD drive bay
    Expansion
    • 2 x full-size PCI Express Mini Card (USB + PCIe)
    • 1 x SIM slot
    Others
    • 4 x Antenna opening
    • 1 x ATX power switch
    • 1 x AT/ATX quick switch
    • 1 x Reset button
    • 1 x Remote switch
    Power Supply
    • 12 VDC
    Watchdog Timer
    • 255 levels, 1 ~ 255 sec.
    Construction
    • Aluminum extrusion and heavy-duty steel, IP40
    Operating Temperature
    • -5°C ~ +60°C (23°F ~ +140°F) (with W.T. DRAM & SSD)
    Relative Humidity
    • 10% ~ 90% , non-condensing
    Vibration
    • 3 Grms with CFast™ (5-500Hz, X, Y, Z directions)
    Dimensions
    (W x D x H)
    • 216 x 137.65 x 44 mm (8.5" x 5.41" x 1.73")
    Weight (net/gross)
    • 1.15 kg (2.53 lb)/ 1.5kg (3.3 lb)
    Certificate
    • CE, FCC Part 15B Class A
    EOS Support
    • Win 10 IoT
    Mounting
    • Wall mount
    • DIN-rail
    • VESA arm
    • eBOX100-312-FL-N3350-US
      Fanless embedded system with Intel® Celeron® N3350 2.4 GHz,2 HDMI, 2 GbE LANs, 6 USB, 12V/36W AC/DC adapter and US power cord
    • eBOX100-310-FL-N3350-EU
      Fanless embedded system with Intel® Celeron® N3350 2.4 GHz,2 HDMI, 2 GbE LANs, 6 USB, 12V/36W adapter and EU
    • power cord
    • 2.5” SATA HDD
    • 2.5” SATA SSD
    • DDR3L SO-DIMM
    • Wall mount kit
    • VESA arm kit
    • DIN-rail kit
    • Wi-Fi module
    • 3G/LTE module
  • Drivers

    Date Description Version Download File
    2017/06/09 4. TXE Driver V1.1 80,463.8KB
    2017/06/09 5. LAN Driver V1.1 79,405.3KB
    2017/06/09 3. Graphic Driver V1.1 247,333.2KB
    2017/06/09 2. Serial IO Driver V1.1 3,131.8KB
    2017/06/09 1.Chipset Driver V1.1 2,620KB

    Software

    Manual

    Date Description Version Download File
    2017/06/09 Quick Manual V2.0 2,281.1KB
    2017/06/09 User's Manual V2.0 2,124KB
    2017/06/09 ReadMe before installation V1.1 .3KB
