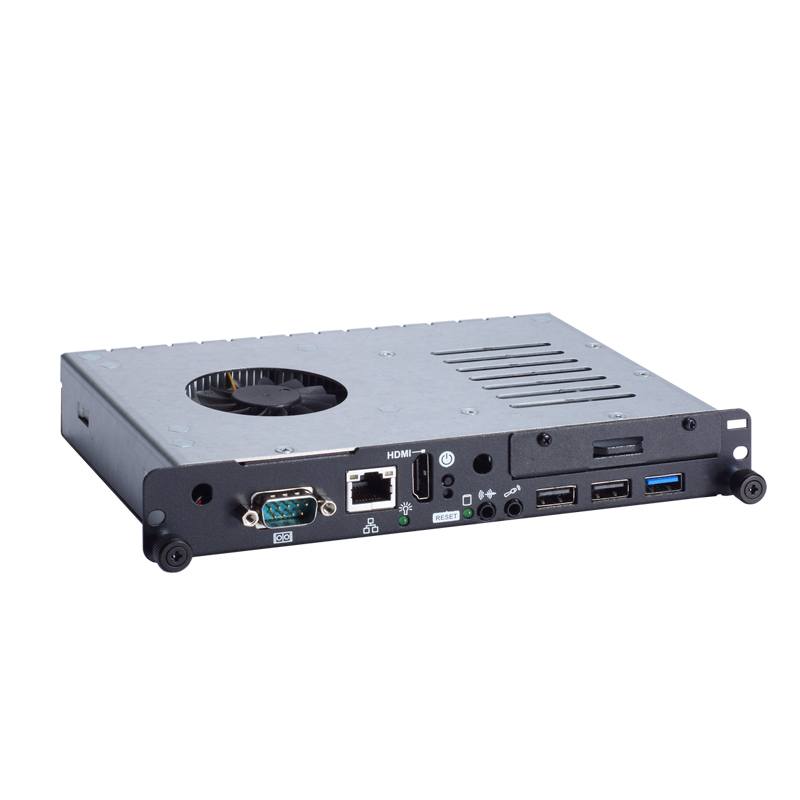

OPS883-H

Open Pluggable Specification (OPS) Digital Signage Player with 4th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, Intel® H81 and TPM 1.2

  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products
    • Intel® Open Pluggable Specification (OPS) compliance
    • LGA1150 socket 4th gen Intel® Core™ i7/i5/i3 & Celeron® processor (Haswell Refresh)
    • DDR3-1600 SO-DIMM 1600, up to 8GB
    • 1 PCIe Mini Card slot
    • Supports TPM 1.2
    • Easy Installation and maintenance
    • HDMI for 2nd display wit 4K resolution

    Introduction

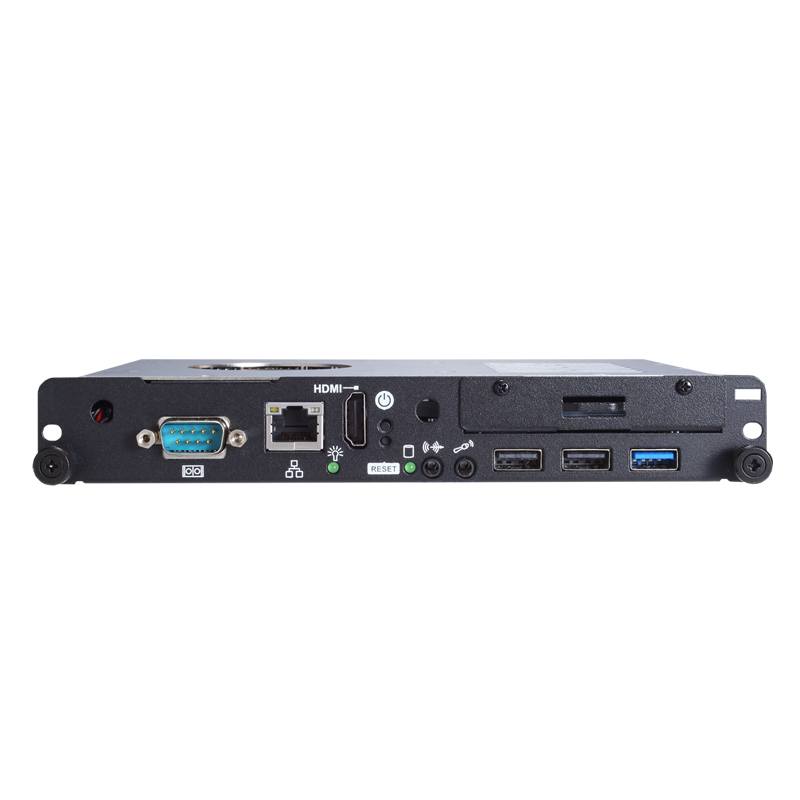

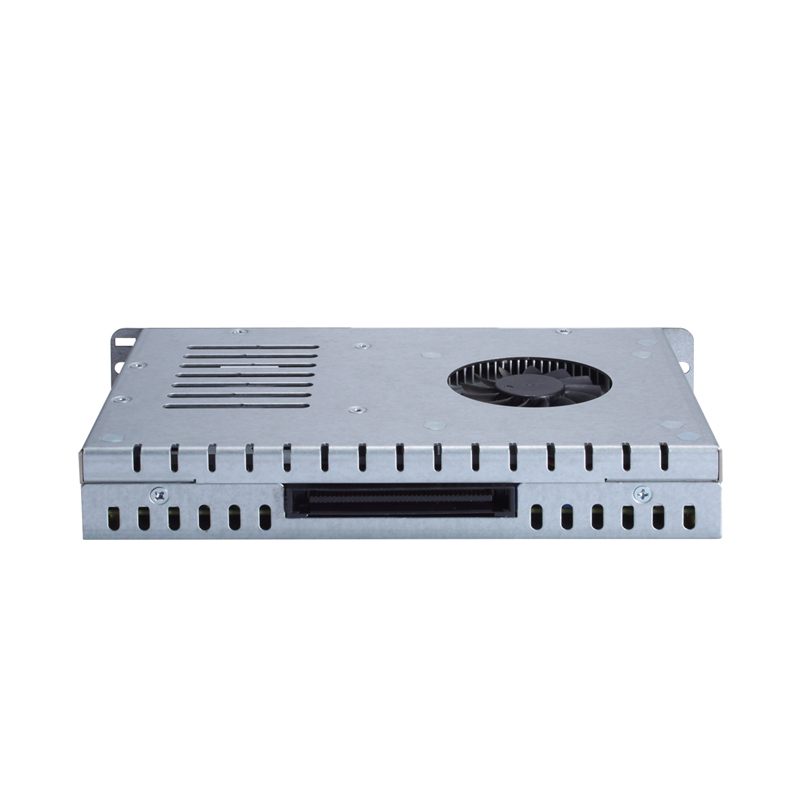

    The OPS883-H OPS-compliant digital signage player is powered by the 4th generation Intel® Core™ i7/i5/i3 processor (codename: Haswell) with the Intel® H81 chipset. It has one 204-pin DDR3 SO-DIMM socket with maximum up to 8 GB. It offers stunning 4K Ultra High Definition (UHD) content via a HDMI port. The Intel® Core-based OPS883-H is ideal for multi-display applications in airport information board, shopping mall, corporate, education, hospitality, religious organization, bank, retail store, restaurant, performing art center and many more. This smart pluggable signage module is connected to OPS-compliant display via a standardized JAE TX-25 plug connector, and includes DisplayPort, UART, audio, USB 3.0 and USB 2.0 signals. To fill different application needs, the signage unit reserves a wide choice of I/O ports on front panel, including one USB 3.0 ports, two USB 2.0 ports, one COM port, audio (in/out) and a Gigabit Ethernet port. This slim-type OPS system has one internal PCI Express Mini Card slot to connect Wi-Fi or 3G/ LTE modules to satisfied users wireless needs. It features one easy-to-access 2.5” SATA HDD as storage device. Also, it supports TPM 1.2 feature which is designed to secure system.

  • CPU
    • LGA1150 socket 4th generation Intel® Core™ i7/i5/i3 & Celeron® processor (Haswell Refresh)
    Chipset
    • Intel® H81
    System Memory
    • 1 x 204 pin SO-DIMM DDR3-1600, up to 8 GB
    BIOS
    • AMI
    COM
    • 1 x RS-232 (COM2)
    USB
    • 2 x USB 2.0
    • 1 x USB 3.0
    Ethernet
    • 1 x 10/100/1000 Mbps (Intel® i217LM)
    Display
    • 1 x HDMI with 4K Resolution
    Audio
    • Line-out/ Mic-in
    JAE TX-25
    • 1 x Display Port (via OPS JAE interconnector)
    • 2 x USB 2.0 (via OPS JAE interconnector)
    • 1 x USB 3.0 (via OPS JAE interconnector)
    • 1 x Audio (Line out, via OPS JAE interconnector)
    • 1 x UART (TX/RX, via OPS JAE interconnector)(COM1)
    Wi-Fi
    • Optional 802.11 b/g/n
    Storage
    • 1 x 2.5" SATA HDD
    Expansion
    • 1 x full-size PCI Express Mini Card (USB+PCI Express Signal)
    Power Supply
    • 12VDC ~19VDC
    Watchdog Timer
    • 255 levels, 1 - 255 sec.
    Operating Temperature
    • 0°C ~ +45°C (+32°F ~ +113°F) (with airflow 1.2m/s)
    Dimensions
    (W x D x H)
    • 200 x 119 x 30 mm (7.87” x 4.68” x 1.18”)
    Weight (net/gross)
    • 1 kg (2.21lb)/ 1.5 kg (3.3 lb)
    Certificate
    • CE
    • OPS883-H
      OPS digital signage player with LGA1150 socket Intel® Core™ i7/i5/i3 & Celeron® processor
    • AX93167
      OPS docking board with 4K solution
