GOT3126T-834

12.1" XGA TFT Extended Temp. Fanless Touch Panel Computer with Intel® Atom™ Processor E3827 (-20°C +55°C)

  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products
    • 12.1" XGA color TFT LCD display
    • Fanless cooling system with Intel® Atom™ E3827 1.75 GHz
    • -20°C to +55°C wide temperature range

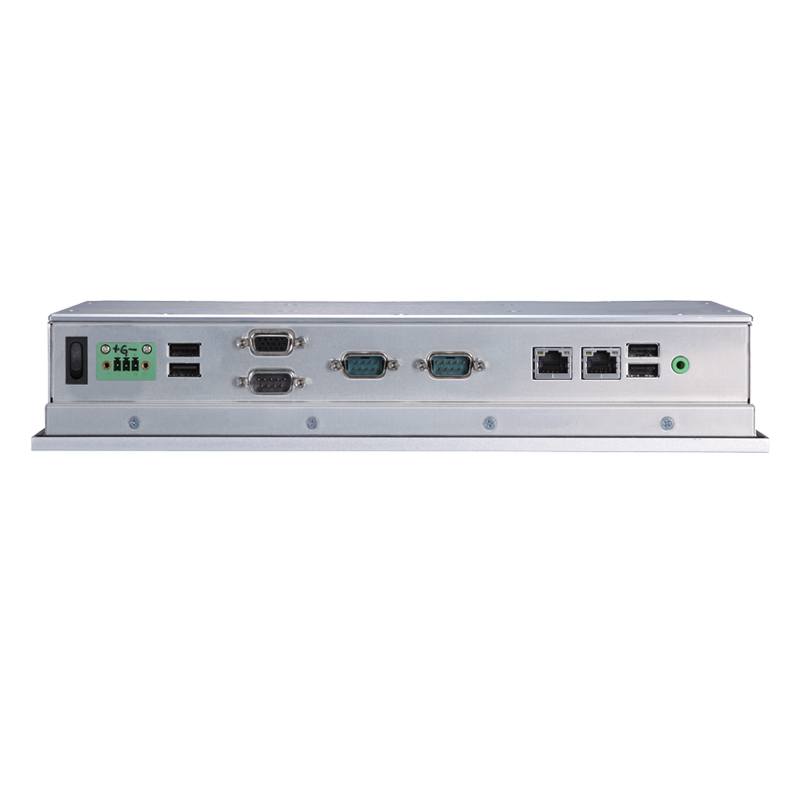

    • 2 Gigabit LAN, 2 USB 3.0, 2 USB 2.0 & 3 COM ports
    • WLAN/3G module and antenna (optional)
    • 2 PCI Express Mini Card slots
    • 9~36 VDC wide voltage and over current protection
    • Supports panel mount and optional VESA arm, desktop stand, wall mount
    • 2.5" SATA HDD & CFast™ or mSATA
    • Adjust RS-232/422/485 setting via BIOS

    Introduction

    The slim-type fanless GOT3126T-834 is powered by the dual-core Intel® Atom™ processor E3827 (1M Cache, 1.75 GHz). Equipped with a 12.1-inch XGA color TFT LCD panel, the stylish GOT3126T-834 has higher pixel density for more sharpness. The industrial-grade touch panel system is designed to withstand a temperature range from -20°C to +55°C (-4°F to +131°F) and up to 2G of vibration with CFast™. With great reliability, the industrial panel PC is perfect for applications applied in heavy-duty industrial environments, including steel refineries, oil refineries, factory automation, internet of things related, and many more.

  • LCD Panel
    • 12.1" XGA TFT LCD
    • 500 nits
    • 1024 x 768 pixels
    CPU
    • Intel® Atom™ processor E3827 1.75GHz (Bay Trail)
    Chipset
    • SoC integrated
    System Memory
    • 1 x 204-pin SO-DIMM DDR3L-1333/1600, up to 8 GB
    BIOS
    • AMI
    COM
    • 3 x RS-232/422/485
    USB
    • 2 x USB 3.0
    • 2 x USB 2.0
    Ethernet
    • 2 x 10/100/1000 Mbps (Intel® i210AT)
    Display
    • 1 x VGA
    Audio
    • Line-out
    Storage
    • 1 x 2.5" SATA HDD
    • 1 x CFast™ or 1 x mSATA
    Expansion
    • 2 x PCI Express Mini Card slot
    Others
    • WLAN antenna
    Touchscreen
    • Resistive type
    Front Bezel
    • IP65, NEMA 4 rugged protection, aluminum front bezel
    Power Supply
    • 9~36V DC with power protection
    Power Comsumption
    • 36W
    Watchdog Timer
    • 255 levels, 0 ~ 255 sec.
    Operating Temperature
    • -20°C ~ +55°C (-4°F ~ +131°F)
    Relative Humidity
    • 20% ~ 90% @ 40°C; non-condensing
    Vibration
    • 1.3G, 10 ~ 500Hz, random for 2.5" HDD
    • 2G, 10 ~ 500Hz, random for CFast™
    Dimensions
    (W x D x H)
    • 311.5 x 56.9 x 250 mm (12.21” x 2.23” x 9.8”)
    Weight (net/gross)
    • 2.8 kg (6.17 lb)/ 5 kg (11.02 lb)
    Certification
    • CE
    EOS
    • Windows® 8.1, WE8S, Windows® 7, WES 7
    Mounting
    • Panel mount
    • VESA mount
    • Desktop stand
    • Wall mount
    • GOT3126T-834
      12.1" XGA TFT fanless touch panel computer with Intel® Atom™ E3827 1.75 GHz dual core processor, resistive touch screen and 9~36 VDC terminal block connector
  • Drivers

    Software

    Manual

    Date Description Version Download File
    2015/04/15 User's Manual VA1.0 2,250.6KB
