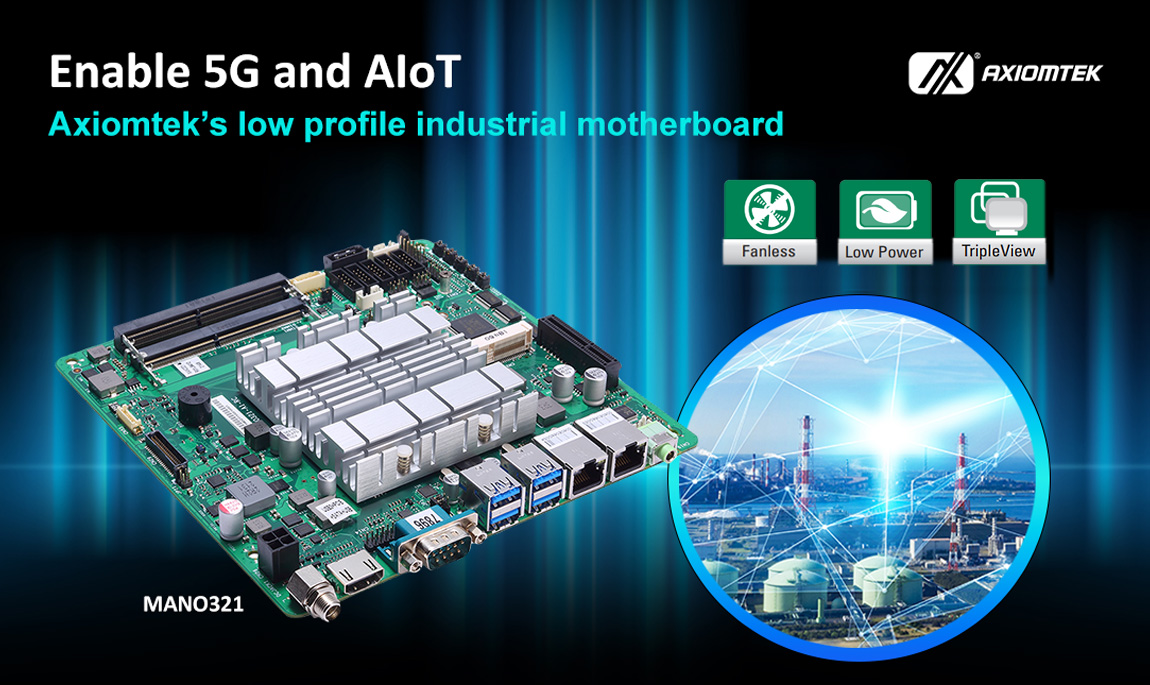

Axiomtek – a world-renowned leader relentlessly devoted in the research, development, and manufacturing of innovative and reliable industrial computer products of high efficiency – is pleased to introduce the MANO321, a fanless, low-profile mini-ITX motherboard with 5G capability that can be a flexible piece to develop IoT environments.
The MANO321 is powered by the low power consumption Intel® Celeron® processor J6412 (codename: Elkhart Lake); it’s equipped with two 260-pin DDR4-3200/2666/2400 SO-DIMM slots for up to 32G of system memory. Its low-profile design lowers the height of the board by half of the standard Mini-ITX form factor, making it more flexible for various IoT applications. To enable 5G connection, it has a SIM card slot and an M.2 Key B slot with USB 3.1 interface, which allows adding a 3042/3052 5G module to gain the connection. For display-related applications, the MANO321 supports triple-view with one HDMI 1.4b, one VGA, and one LVDS. Besides, it has HD Codec audio. In terms of expansion interfaces, the industrial motherboard provides one PCI Express Mini Card slot and one PCIe x4 slot with PCIe x2 signal.
“Our MANO mini-ITX motherboards are widely deployed in industrial control applications and can be used for digital signage applications in retail and public transportation venues. The fanless MANO321 offers rich features, high computing power, slim-size form factor and graphics-rich performance. With 5G capability and its low latency, the MANO321 can make the IoT truly feasible in the manufacturing industry. In terms of space, its low-profile design is an excellent choice for limited space and installation flexibility,” said Kenny Lin, the product manager of the Product Planning Division at Axiomtek.
To strengthen the versatility, the MANO321 features rich I/O options including one SATA600 connector, two Gigabit Ethernet with support of Wake-on-LAN and Boot ROM, four USB 3.1, four USB 2.0, six COM, 8-CH DIO, HDMI, VGA, LVDS, and one SMBus pin header, which make the board ready for the industrial environment. If users require more storage space, it also provides one mSATA and one SDHX slot. The M.2 Key B slot can also be compatible with SATA interface for 2242 SSD. It also supports Linux and Windows operating systems. Additionally, the MANO321 supports Trusted Platform Module (TPM) 2.0 and a watchdog timer for optimal security.
The MANO321 is ready for purchase now. For more product information or customization services, please visit our global website at www.axiomtek.com or contact one of our sales representatives at firstname.lastname@example.org.
- Intel® Celeron® processor J6412 (codename: Elkhart Lake)
- 2 DDR4 SO-DIMM for up to 32GB of memory
- 1 PCIe x2 for PCIe x4 expansion slot
- 1 PCI Express Mini Card slot and PCIe x1
- 4 USB 3.1 and 4 USB 2.0
- 1 SATA-600 and 1 M.2 Key B
- Supports 6 COM (two RS-232/422/485)
- Low profile
- HDMI/VGA/LVDS with triple view supported
