Features

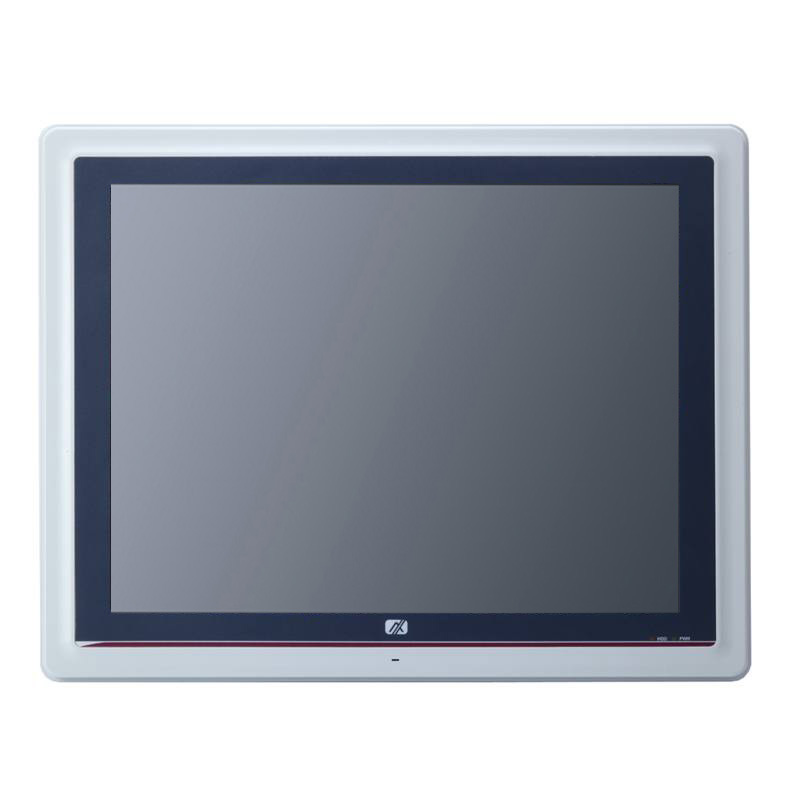

- 15" XGA TFT LCD display with LED backlight
- Fanless cooling system with Intel® Celeron® processor J1900
- WLAN module and internal antenna

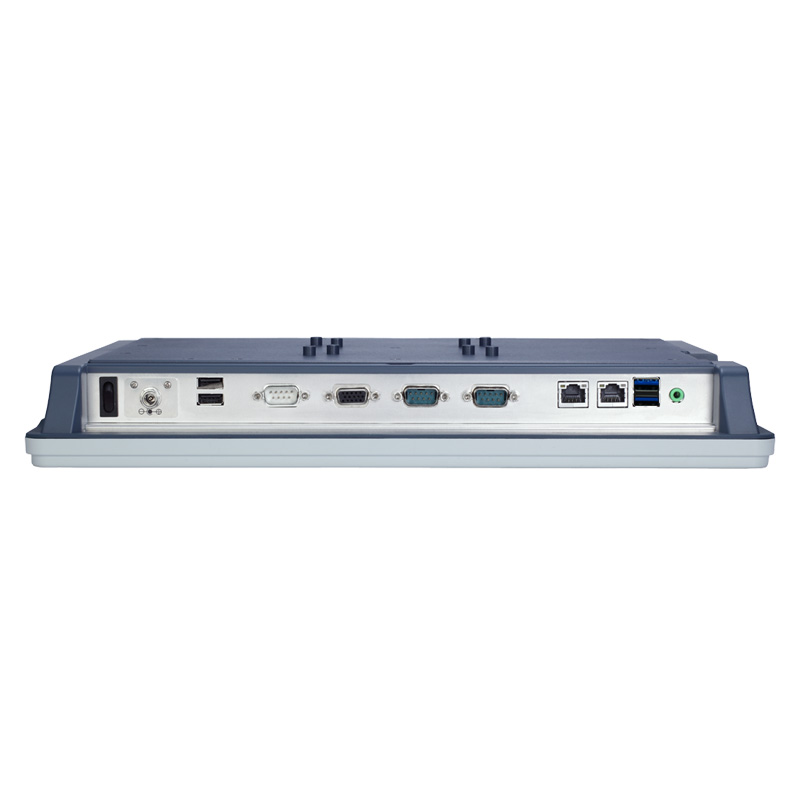

- 2 GbE LAN, 4 USB and 3 COM
- PCI Express Mini Card for easy expansion
- Supports panel mount/wall mount/VESA arm
- Supports RFID (optional)
- Plastic and IP65-rated front bezel
Introduction
The eBOX640-500-FL is powered by the 7th generation Intel® Core™ i7/i5/i3 and Celeron® processor families. It features dual DDR4-2133 DIMM sockets with up to 32GB of system memory, and provides a wide choice of front-accessible I/O interfaces for easy cabling and maintenance. It supports an extended operating temperature ranging from -10°C to +55°C, a wide voltage range DC power input from 10 to 30 VDC with power protection, and up to 2G vibration endurance, enabling a reliable and stable operation in harsh environment. The superior Intel® Kaby Lake-based fanless embedded box PC can support three independent high resolution displays and 4K resolution, offering high quality imaging.
