Features

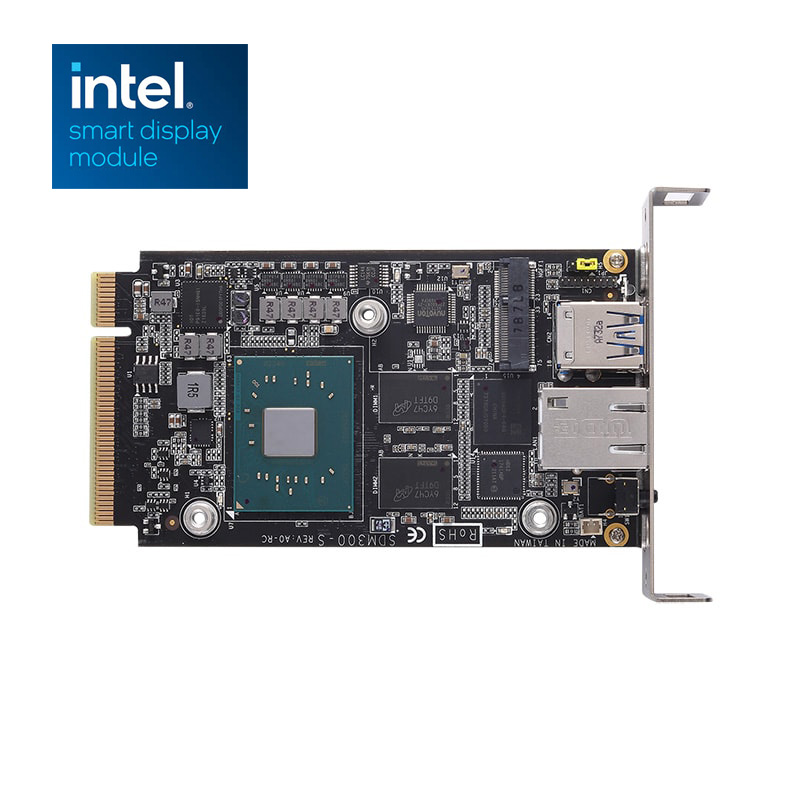

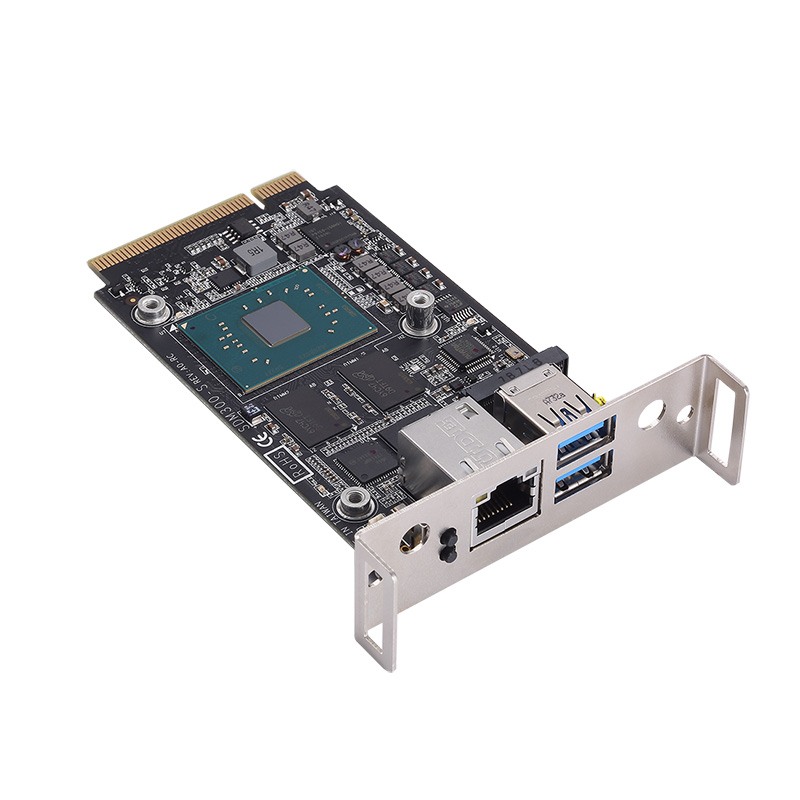

- Intel® Smart Display Module (Intel® SDM) specification
- Intel® Pentium® processor N4200 & Celeron® processor N3350 (Apollo Lake)
- 4GB LPDDR4 memory onboard (8GB optional)
- 64GB eMMC onboard (32G optional)
- One M.2 Key E 2230 slot
- Two USB 3.0 and one GbE LAN
- Small design for easy integration into slim displays
- Optimized for digital signage, public kiosks, professional monitors, point-of-sale
- Projections for magic mirrors, beside terminals, hospitality, and more
Introduction
The PICO316 supports the low-power consumption Intel® Pentium® processor N4200 or Celeron® processor N3350 (codename: Apollo Lake SoC). The PICO316 comes with dual display capability through 18/24 single/dual-channel LVDS and HDMI. It supports one DDR3L-1867 SO-DIMM system memory up to 8 GB, one SATA-600 connector and one full-size PCI Express Mini Card slot supporting mSATA. The tiny PICO316 offers high flexibility with rich I/O options, a fanless design for longevity, a wide operating temperature range of -20°C to +60°C (-4°F to +140°F), and a +5V DC power supply input. The compact and slim design of the small form factor SBC ensures that it can fit into a variety of space constricting environments. This pico-ITX SBC is created to support a variety of Industrial Internet of Things (IIoT) applications, especially those with graphic-intensive and limited-space requirements including automation control, medical imaging, digital signage, gaming and more.
