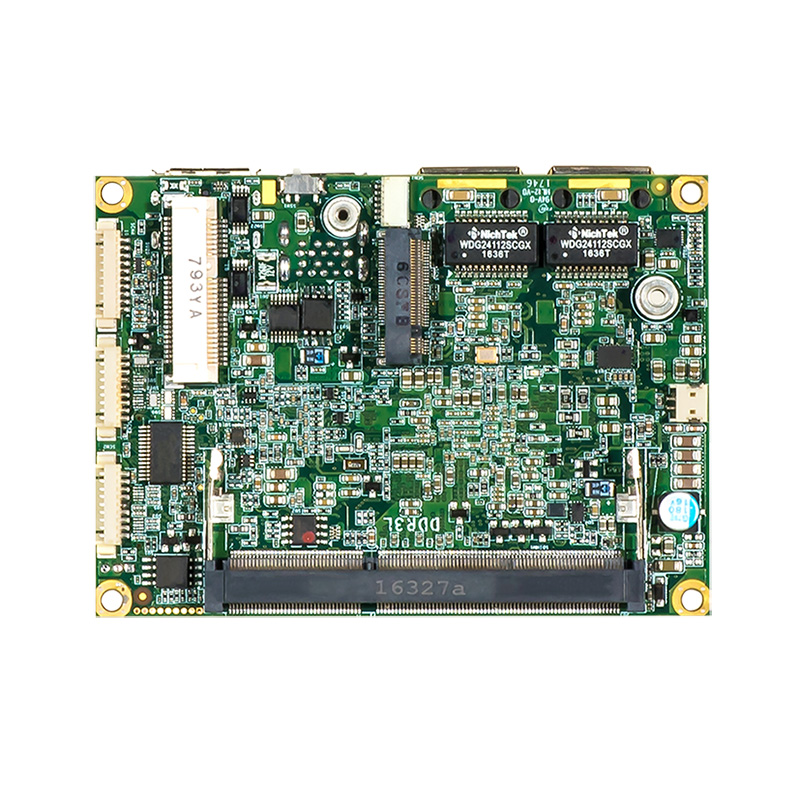

Features
- Intel® Atom® x5-E3940 processor
- 1 DDR3L SO-DIMM for up to 8GB of memory
- 2 GbE LAN
- 1 PCI Express Mini Card slot with mSATA supported
- Supports M.2 Key B
Introduction
The IPC974-519 provides edge computing capabilities for a wide variety of industrial AIoT applications, such as real-time control, data analysis, deep learning and automated optical inspection, making great strides to utilize an ideal solution. The industrial PC is powered by the high-performance Intel® Xeon® E3 v5, 7th/6th generation Intel® Core™ (codename: Kaby Lake/Skylake) or Celeron® processors with the Intel® C236 chipset. It also supports powerful NVIDIA® GPU with up to 300W TDP. In addition, the system has a wide operating temperature range of -10°C to +70°C with 0.5 m/s airflow and a wide range of 19V to 30V DC power input for harsh operating environments. The IPC974-519 has a flexible I/O window slot for ease of customization to meet the requirements of various applications. It has a choice of four different types of I/O modules - a four-port RS-232/422/485 module (AX93511); a four-port isolated RS-232/422/485 module (AX93516); a one-port GbE Ethernet, two-port USB 3.0 and two-port RS-232/422/485 module (AX93519); and a two-port isolated RS-232/422/485 and 8-in/8-out DIO module (AX93512). Additionally, it provides four high-speed and full-size PCIe /PCI slots supporting the vision, motion, data acquisition and I/O cards. The AIoT industrial automation computer has an optional built-in power board that provides 300W power to add-in graphics cards. To satisfy the wide temperature variations, it also offers an easy-to-install fan module to help dissipate heat generated within the system when high power consumption PCI/PCIe cards are installed.
