- CE, FCC certified; ISO 7637-2 compliant
- LGA1151 7th/6th gen Intel® Core™ & Pentium® processors (up to 35W) with Intel® H110 (Kaby Lake/Skylake)
- Fanless and Wide operating temperatures from -40°C to +60°C
- 12/24 VDC power input, with power management (ACC ignition)
- Single-sided I/O design for easy maintenance
- Expansion capability for three PCI Express Mini Card slot and two internal SIM card slot

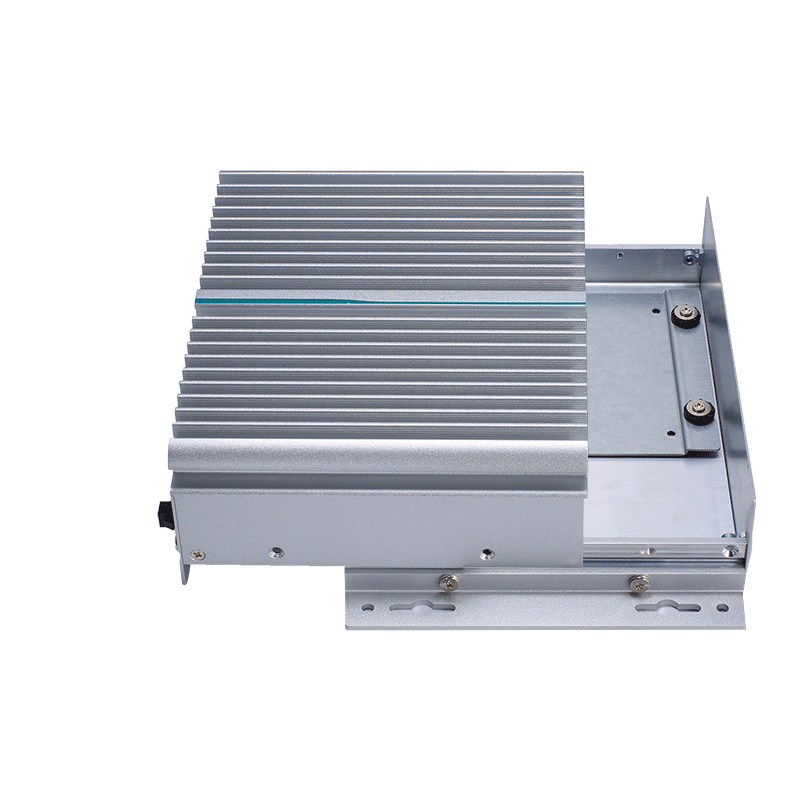

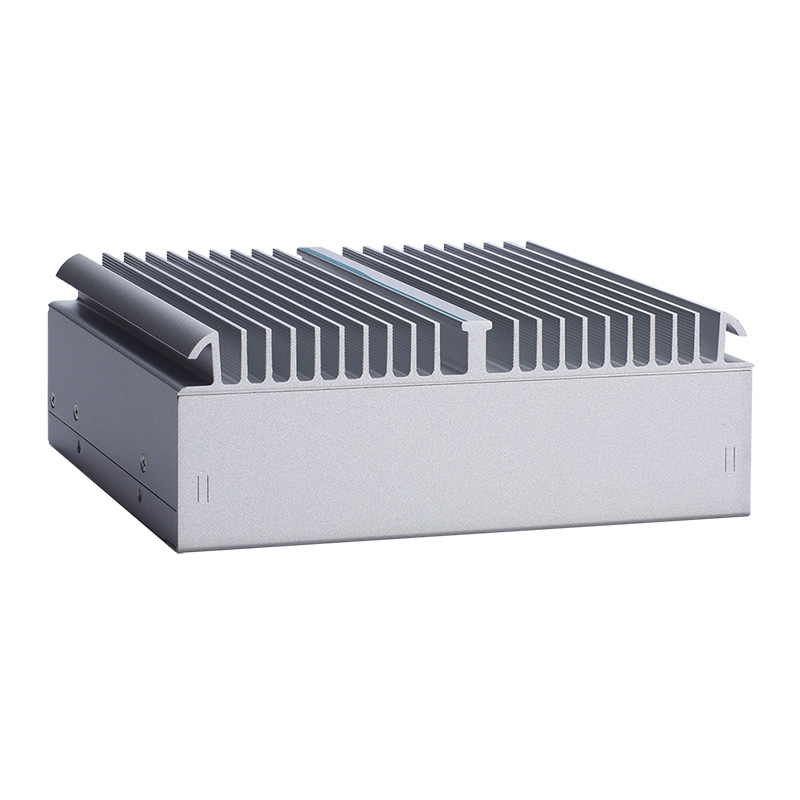

The UST100-504-FL is an extremely compact fanless embedded system for in-vehicle edge computing and video analytics applications. This ruggedized in-vehicle system is certified with CE and FCC and is in compliance with ISO 7637-2. Axiomtek’s UST100-504-FL features a single-sided I/O design for space-limited vehicle applications. The high-performance vehicle PC is powered by the LGA1151 socket 7th/6th generation Intel® Core™ or Pentium® processor with up to 35W TDP and comes with the Intel® H110 chipset. Thanks to its ruggedized structure and outstanding system design, the UST100-504-FL is able to operate under a wide temperature range from -40°C to +60°C and vibration of up to 3 Grms for extreme harsh environment.
