- AMD Ryzen™ Embedded V1807B and V1605B APU
- 2 DDR4 SO-DIMM for up to 16GB of memory
- 2 GbE LAN and 2 IEEE 802.3at PoE GbE LAN
- 2-CH camera trigger outputs
- 2-CH LED lighting control
- 1-CH incremental quadrature encoder input
- 4 isolated DIO

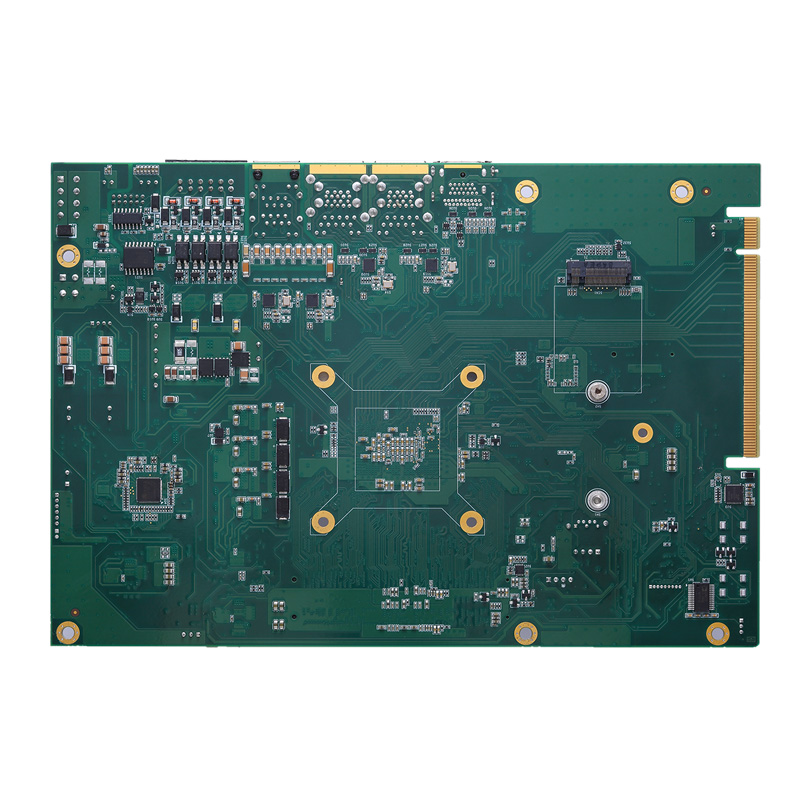

The MIRU130 is a high-end embedded vision and AI motherboard optimized for machine vision and deep learning applications. It is powered by the onboard AMD Ryzen™ Embedded V1807B/V1605B processor with AMD Radeon™ RX Vega graphics. The embedded vision board has two PoE GbE LAN ports for camera interfaces and an integrated real-time vision I/O that includes 4-CH isolated DIO. The size of MIRU130 is 244 x 170mm – the size between Micro-ATX and Mini-ITX form factor, which provides customers with the convenience of finding chassis on the market. Its vision-specific I/O integrates 2-CH trigger input, 2-CH LED lighting controller, 2-CH camera trigger output and an encoder input for conveyor tracking. Furthermore, the MIRU130 is integrated with AMD Radeon™ RX Vega graphics with support of DirectX 12 and offers dual display capability through one HDMI and one DisplayPort interfaces. The MIRU130 was designed to help developers to deploy vision-based AI applications faster and easier.
