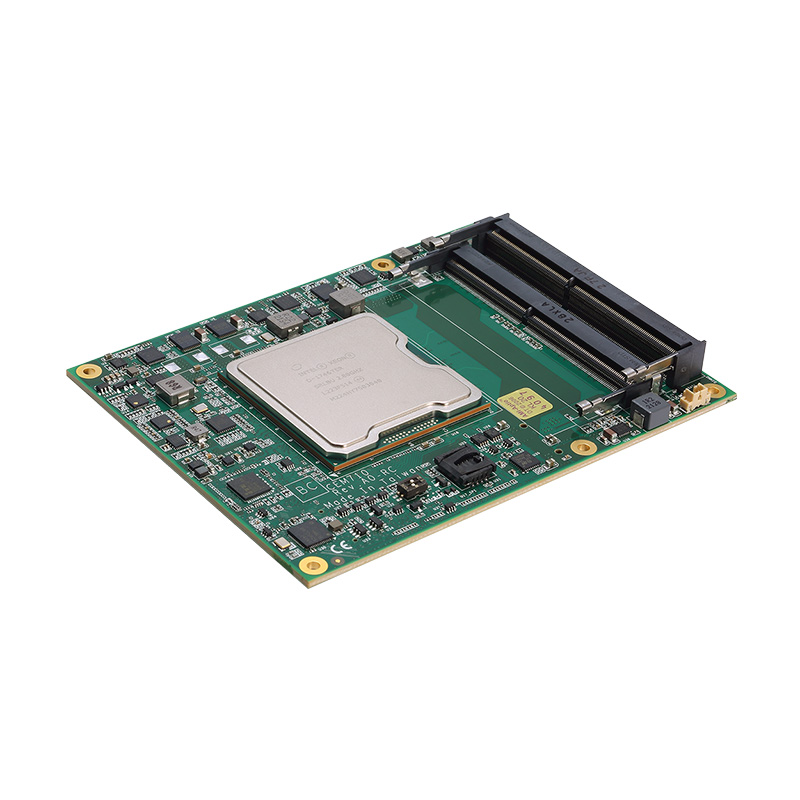

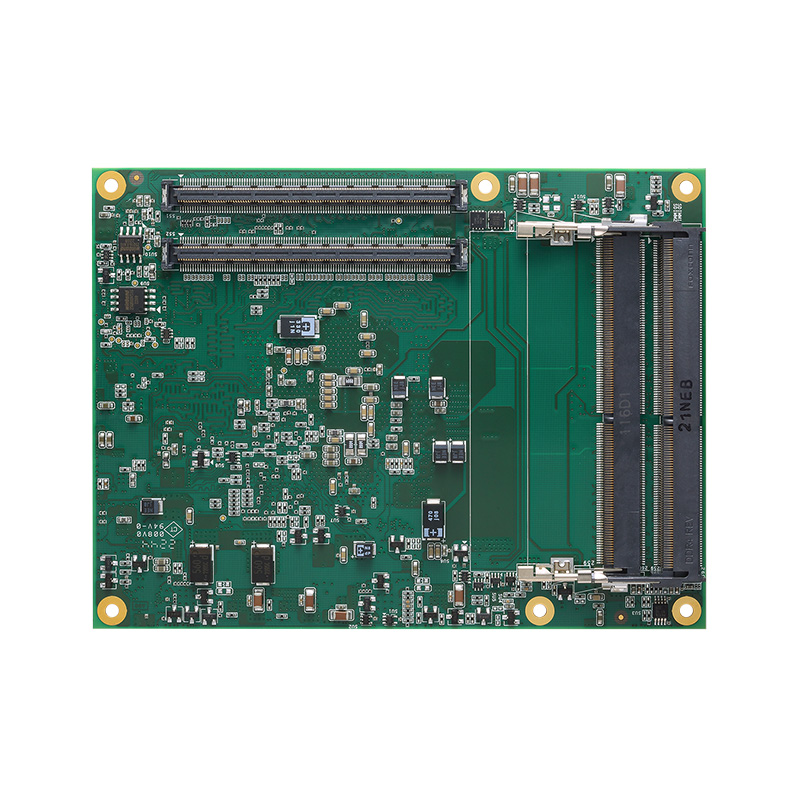

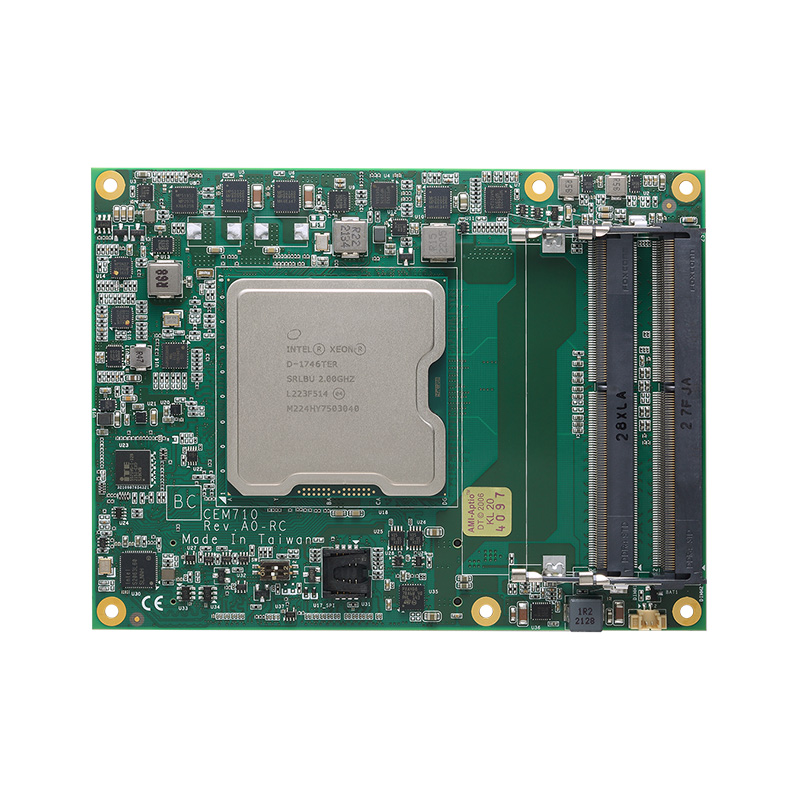

Features
- Intel® Xeon® D-1700 series processor (Ice Lake D)
- 2 DDR4-2400 SO-DIMM for up to 64 GB memory
- 1 PCIe x16 Gen3 (PEG), 1 PCIe x8 Gen3, and 6 PCIe x1 Gen3
- 2 SATA Gen3
- 4 USB 3.0 and 4 USB 2.0
- 4 10GBase-KR
- Supports TPM 2.0
Introduction
The CEM500, a COM Express Type 6 basic module, is based on the 14 nm Intel® Xeon® processor E3-1505M v5 and 6th generation Intel® Core™ i7/i5/i3 processor (codename: Skylake-H) with Intel® CM236/QM170/HM170 chipset. The outstanding Intel® Gen 9 HD Graphics enables the CEM500 driving multiple 4K displays without the need of a discrete graphics card. Two DDR4-2133 SO-DIMM supporting up to 32 GB system memory capacity and four SATA-600 with RAID 0, 1, 5, and 10 are available. Additionally, the rugged COM Express computer-on-module Type 6 supports an industrial operating temperature range of -40°C to 85°C for applications in extreme harsh environment. With its full solid, outstanding computing performance and low power consumption design, the CEM500 is targeted at telecommunication, medical imaging, digital signage, gaming machines, military, human machine interface, industrial automation controllers and IIoT applications.
