Features

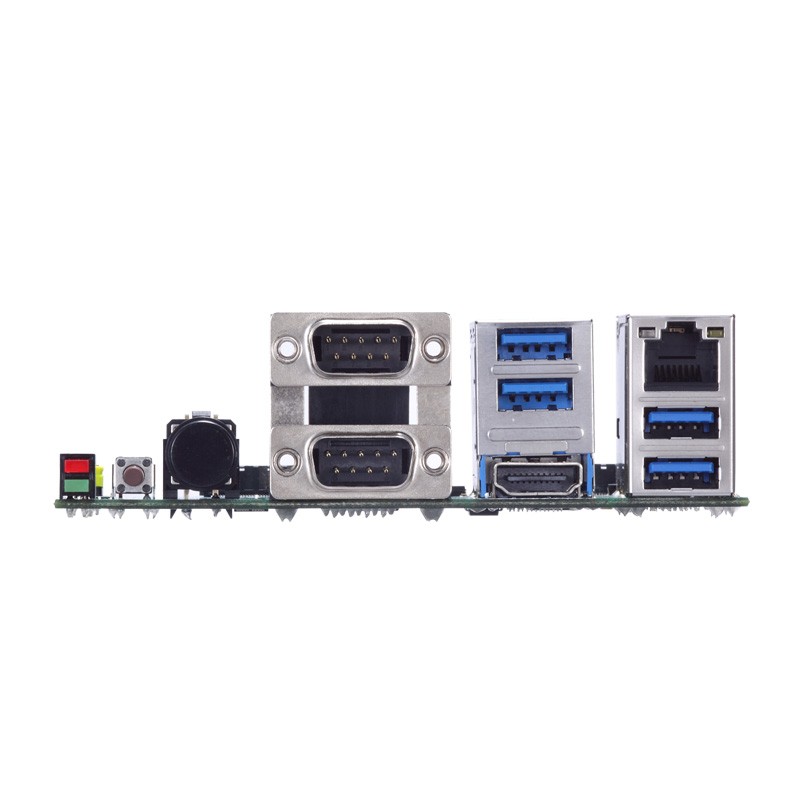

- Specifications: 1 x RS-232/422/485, 1 x RS-232, 4 x USB 3.0, 1 x HDMI, 1 x Gigabit LAN, 1 x Power On, 1 x Reset, 2 x LED
- Dimensions: 118 x 40 mm
- Compliant products: PICO880, PICO500, PICO300
Introduction
The CAPA310 features the onboard quad-core Intel® Atom® x5-E3940 processor (codename: Apollo Lake). The fanless small form factor embedded board is highly reliable with an extended operating temperature range of -40°C to +80°C and a wide range power input of 12V to 24V DC. This industrial-grade 3.5-inch embedded board is feature-rich and expandable, with stunning graphical performance. The CAPA310 is a highly versatile platform designed for Industrial IoT and intelligent systems such as industrial automation, self-service terminals, digital signage, POS/kiosk displays, medical, and more. To ensure flexible configuration and expandability, the CAPA310 has an emphasis on expandability with a full-size PCIe Mini Card slot and an optional ZIO connector for additional PCIe, LPC, USB and SMBus. Additionally, this compact embedded board features the Intel® integrated Gfx graphic engine to deliver high-resolution HD support for display interfaces: HDMI, LVDS and optional VGA. It is perfectly suited for gaming and signage applications.
