- 8th gen Intel® Core™ i7/i5/i3 and Celeron® processor
- 1 DDR4 SO-DIMM for up to 32GB of memory
- 2 USB 2.0 and 2 USB 3.2 Gen1
- 2 GbE LAN
- M.2 Key E
- Intel® AMT 11 supported

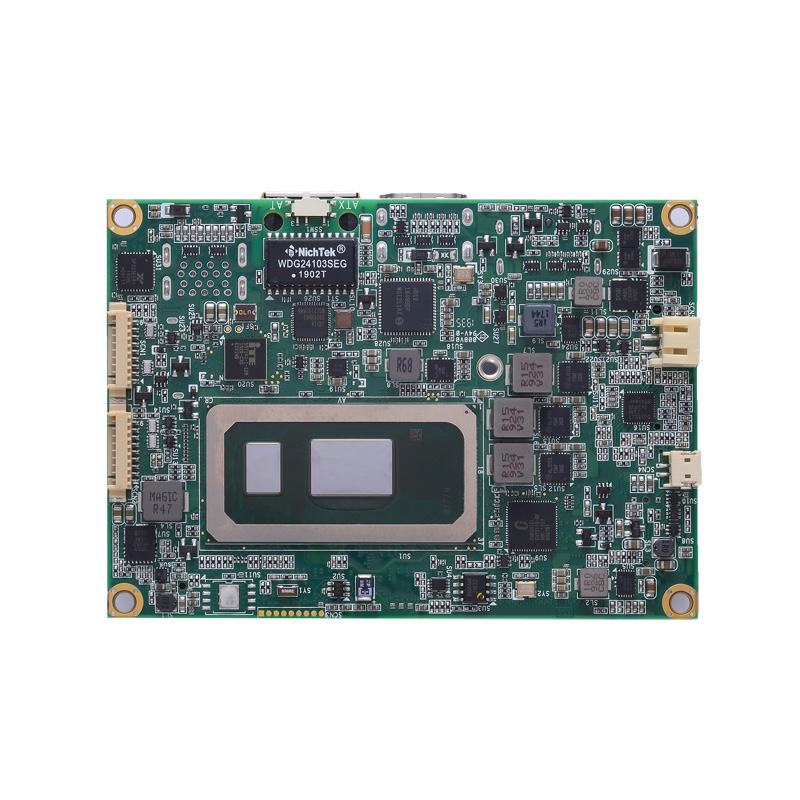

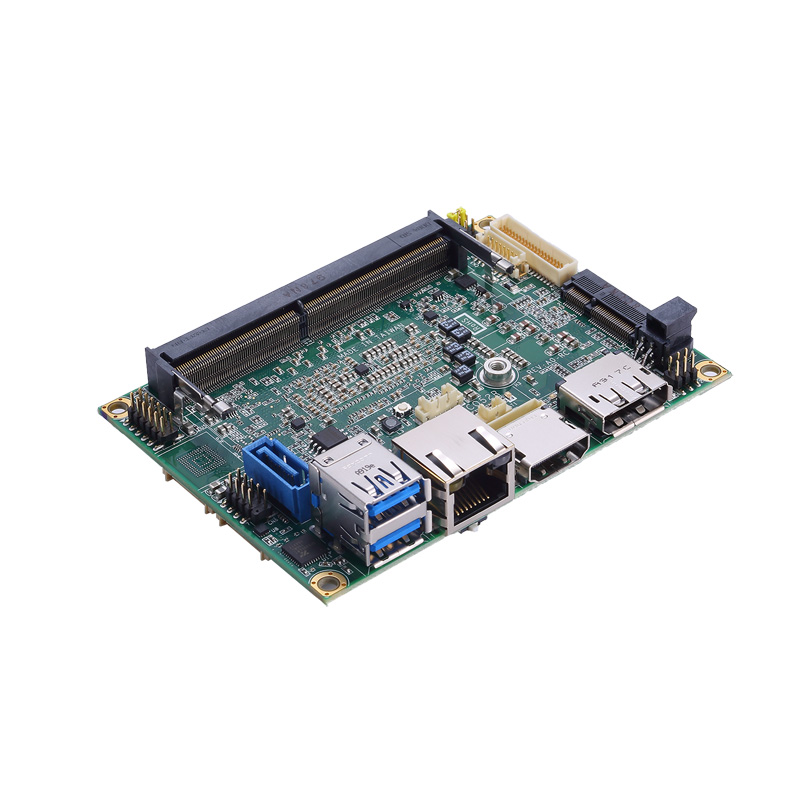

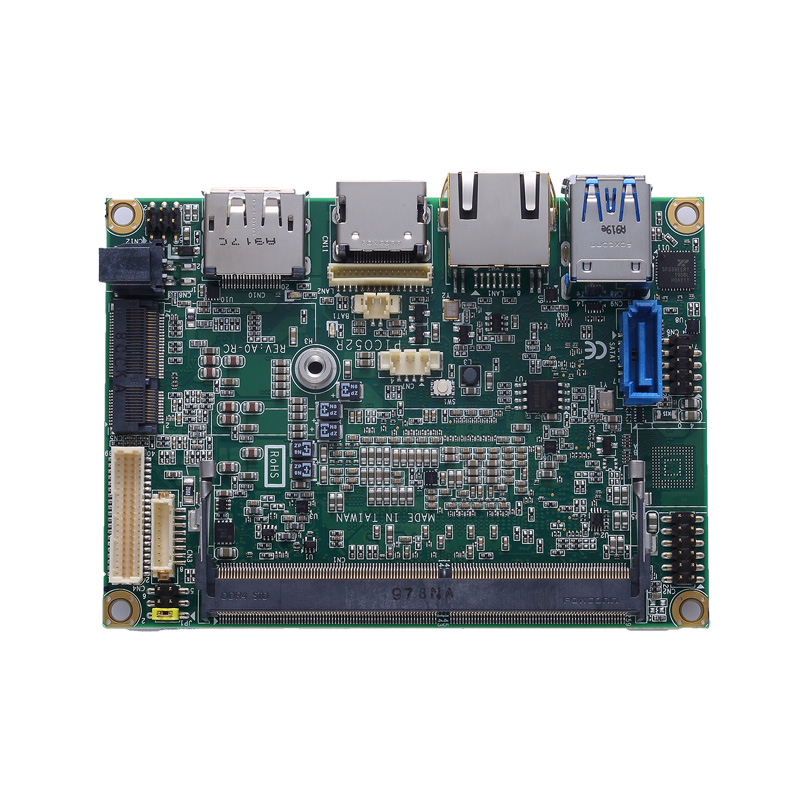

The PICO52R is powered by the 8th gen Intel® Core™ i7/i5/i3 and Celeron® processor. Its reversed onboard CPU is attached on the rear side of the board to aid with heat dissipation and offers flexibility for easy system integration, especially in space constraint enclosures. This embedded SBC features one DisplayPort++, one HDMI and one LVDS for triple display applications. The PICO52R can operate from -20°C to +60°C (-4°F to 140°F). It comes with a +12V DC power supply input with AT Auto Power On to ensure reliable system operation. In addition, this pico-ITX embedded board is also equipped with two USB 3.0 ports to support industrial cameras, one M.2 Key E slot for wireless communication capabilities and two Gigabit Ethernet ports for mass data transmission. Leveraging the Intel® Active Management Technology 11, powerful CPU and rich I/O interfaces, the high-performance PICO52R provides high-precision services for edge computing, machine vision and industrial IoT applications.
