Features

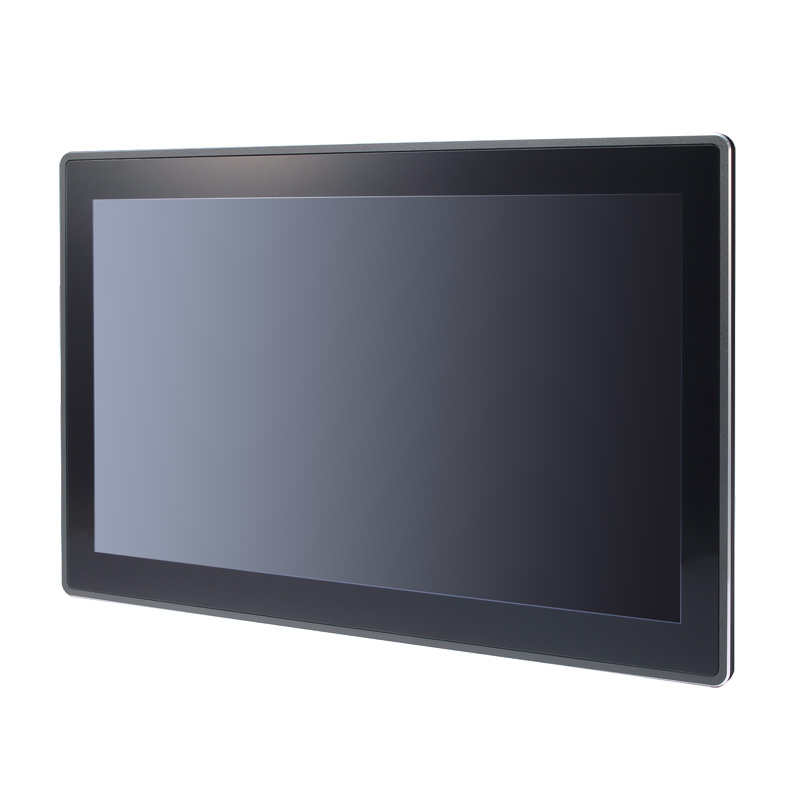

- 15.6" HD TFT LCD
- 16:9 aspect ratio; 220 nits brightness
- Diamond-cut slim bezel under 33.5 mm thickness
- Projected capacity touch supported (10-point touch)

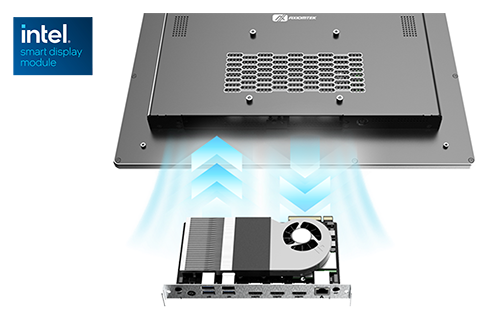

- Swappable Intel® SDM CPU card
- Modular design for various applications
- Supports an add-on RFID reader, barcode scanner, and camera modules (optional)
- Supports a thermal printer (optional)

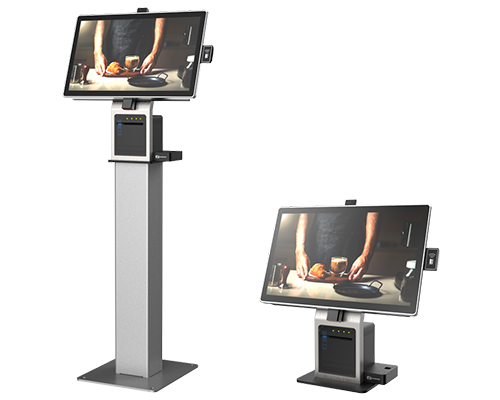

- Supports desktop stand, floor stand, and wall mount (optional)
Introduction
The SDM500L is powered by the onboard 8th generation Intel® Core™ i7/i5/i3 processor with the Intel® Generation 9 HD Graphics chipset. The Intel® Smart Display Module-Large (Intel® SDM-L) measures just 175 x 100 mm and a maximum z-height of 1.6 mm, which is well-suited for ultra-slim displays. It can be easily connected to an SDM-compliant display via a high-speed PCIe x8 edge connector - which supports 4K resolution displays and video capture and has built-in USB 3.0, HDMI 2.0, DisplayPort 1.2, Serial TX/RX and I2C signals. With its excellent graphics performance and installation flexibility, the incredible signage module can satisfy diverse industry requirements and support a wide range of digital signage applications such as bedside terminals for hospital patients or factory automation solutions.
