The safety of passengers and drivers aboard public transports has been the ongoing focus of mass transit operations worldwide. Within Taiwan, the Metro Taipei and the Department of Rapid Transit Systems (DORTS) began to pay attention to surveillance systems due to multiple random attacks that occurred in the metro system. They have invested in the newest onboard surveillance system that incorporates transportation-certified computer hardware, security software, cameras, and other components to create an effective onboard surveillance system for the Taipei MRT (Massive Rapid Transit).
The demand for public transport safety management is various with complexity; normally, it is not just a single unit or system that could achieve the entire job. Therefore, the integration of system platforms along with railway electromechanical design has become a major task. A system integrator with excellent system integration capabilities and rich experiences as well as a professional hardware supplier offering high-quality products are indispensable. Axiomtek is a leading global designer and manufacturer of advanced transportation solutions. Our high-quality, easy-to-customize embedded computer products are suitable for use on projects by mass transit authorities, system integrators, bus and rail manufacturers and transportation infrastructure builders. Many of our solutions are certified for railway, bus, vehicle and marine applications.
Our Solutions
Axiomtek's EN 50155-certified tBOX400-510-FL box PC offers high performance and a two swappable storage design with RAID 0/1. The system helps maintain passenger security under the supervision of a station master for metro surveillance applications. It has a built-in 10-port managed switch with 8-port 10/100 Mbps PoE and 2-port Gigabit LANs, featuring VLAN, QoS and PoE scheduling for a more secure and smooth network. By combining a rugged transportation system with an integrated PoE managed switch, the customer can connect IP cameras directly without installing an extra PoE switch, which further saves the overall deployment costs and installation space on buses and light rail. For reliable operation in severe environments, the rugged tBOX400-510-FL is designed to withstand a wide temperature range from -40°C to +60°C and vibration of up to 3 Grms. It also supports a wide voltage 24V to 110V DC for railway applications. With its high performance, industrial-grade design and full-strict certifications, the tBOX400-510-FL is suited for transportation-related applications such as onboard video surveillance and video management.

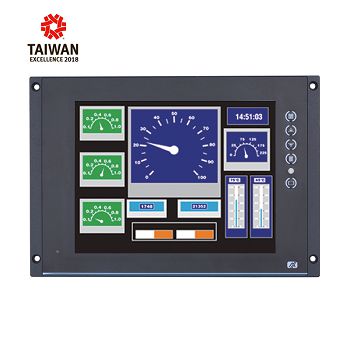

The P6105, a 10.4" EN 50155-certified touchscreen railway monitor is designed specifically for transportation applications. The rugged monitor offers a resistive touchscreen with 500 nits high brightness and has LED backlighting for power saving. It is equipped with an RS-232 touch control interface, and multiple video inputs of DVI-D, HDMI, which offers customers a variety of connection options. The 10.4-inch railway touch monitor adopts extended temperature technology and supports a wide temperature range from -25°C to +55°C. Its friendly fanless cooling system design and super-compact ID are aimed at rolling stock as well as harsh environments. The P6105 has an industrial-grade IP65/NEMA 4/12 compliant metal front bezel that resists water spillage and is specifically designed for the railway sector.
Why Axiomtek
Axiomtek has assisted our mass transit customers and system integrators with their onboard surveillance projects with great success. We are maintaining our commitment to serving our customers in the transportation industry with innovative, one-of-a-kind transportation solutions that are designed for fast and successful deployment. Coupled with an experienced design services team and a comprehensive suite of value-added services offered, Axiomtek can deliver effective end-to-end solutions and exceptional support to ease project development and management challenges.
